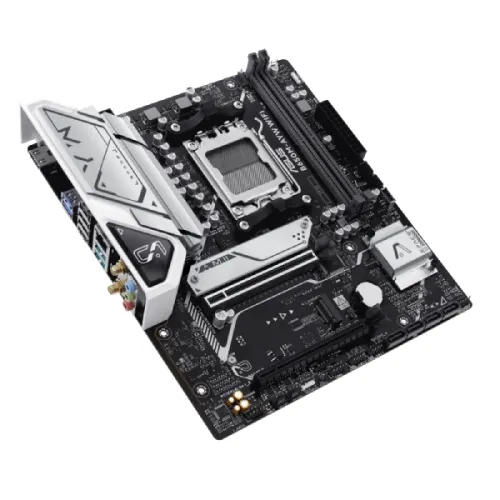

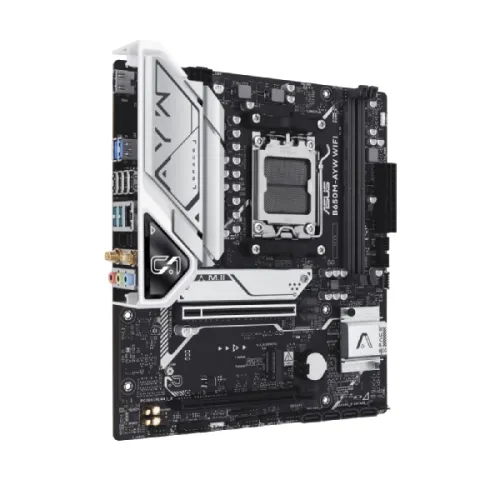

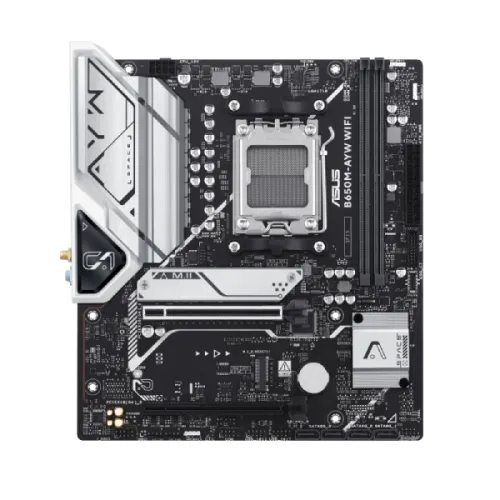

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard
ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard - Image 2
ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard - Image 3
ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard - Image 4
ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard - Image 5
ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard - Image 6
, ,

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard

ASUS
Availability:

In stock
Add to wishlist
Compare
  • Model: B650M-AYW WIFI
  • Supported CPU: Ryzen 9000 & 8000 & 7000 Series Processors for Socket AM5
  • Supported Memory: 2x DIMM slots, Max. 96GB DDR5, Up to 8000+MT/s (OC)
  • Graphics Output: 1 x HDMI port, Storage: 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Features: 1 x 2.5Gb LAN, WiFi 6, PCIe 5.0 s​​​​lots, Two-Way AI Noise Cancelation

Short Description

  • Regular Price: 22,000৳
  • Special Price: 20,100৳
  • Availability:In Stock
  • Brand: ASUS
  • Product ID: 16508

20,100.00৳  22,000.00৳

In stock

Compare

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard

Brand

ASUS
Model

B650M-AYW WIFI
Color

Black
Warranty

03 years warranty
Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B650 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor
9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
PCI AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2 Socket Total supports 2 x M.2 slots
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
Type DDR5
Slots 4 x DIMM
Supported Memory p to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
Maximum Memory 96GB
Graphics 1 x HDMI port
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports 4K@60Hz as specified in HDMI 2.1.
HDMI 1 x HDMI
USB  Rear USB (Total 8 ports)
2 x USB 10Gbps ports (2 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port  1 x Realtek 2.5Gb Ethernet

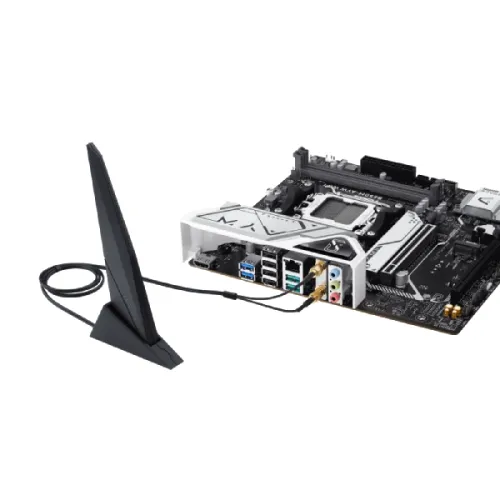

Wireless Communication module WiFi 6
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
AMD B650 Chipset
4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio 3 x Audio jacks
Internal I/O Ports Back Panel I/O Ports
2 x USB 10Gbps ports (2 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III
DIGI+ VRM
LANGuard
Overvoltage Protection
Safeslot Core+
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-DIMM
Q-LED Core
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
Aura Sync
Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 2+
Power Saving
Two-Way AI Noise Cancellation
AI Suite 3
TurboV EVO
DIGI+ VRM
PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

Description

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard

The ASUS B650M-AYW WIFI is a DDR5 Micro-ATX motherboard that supports desktop processors from the AMD Ryzen 9000, 8000, and 7000 series. Featuring two DIMM slots with a maximum capacity of 96GB DDR5 memory and supporting speeds up to 8000+ MT/s (OC), it is built on the AMD B650 chipset. Performance and stability are provided by the dual-channel memory design in conjunction with AMD Extended Profiles for Overclocking (EXPO) and OptiMem II. With cutting-edge technologies including PCIe 5.0 slots, WiFi 6, and two-way AI noise reduction, the ASUS B650M-AYW WIFI Motherboard is perfect for both professional and gaming applications. With one HDMI connector and the ability to support 4K at 60Hz as defined by HDMI 2.1, this ASUS AM5 DDR5 motherboard provides strong graphics support. This ASUS B650M-AYW WiFi AM5 DDR5 Micro-ATX Motherboard has one PCIe 4.0 x16 expansion slot, allowing it to support the newest graphics cards. Two M.2 slots and four SATA 6Gb/s connectors provide enough storage options, with AMD RAIDXpert2 Technology supporting PCIe RAID 0/1/10 and SATA RAID 0/1/10. The onboard Realtek 2.5Gb Ethernet offers fast and stable wired networking, while a wide range of USB ports, including USB 10Gbps, 5Gbps, and 2.0, provide vast connectivity possibilities. The Realtek 7.1 Surround Sound High Definition Audio CODEC powers the audio capabilities of the ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard, which supports 24-bit/192 kHz playback, audio shielding, premium capacitors, and dedicated PCB layers. Internal I/O connectors include CPU and chassis fan headers, M.2 slots, SATA ports, and various USB headers, allowing for easy and versatile system configurations. The ASUS B650M-AYW WIFI Motherboard includes ASUS 5X Protection III, Q-Design, and sophisticated thermal solutions to improve longevity, ease of installation, and cooling efficiency.
