PRIME B760M-F
Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard - Image 2
Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard - Image 3
Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard - Image 4
PRIME B760M-F
, ,

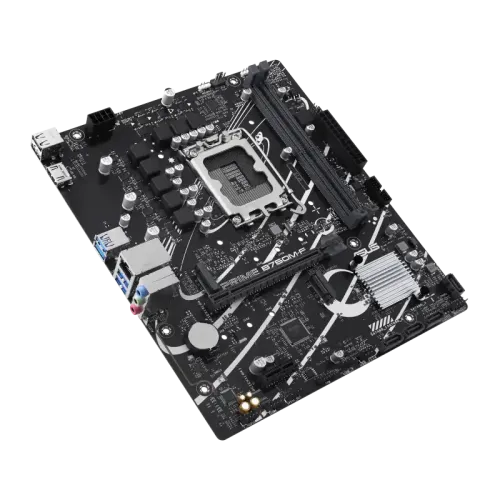

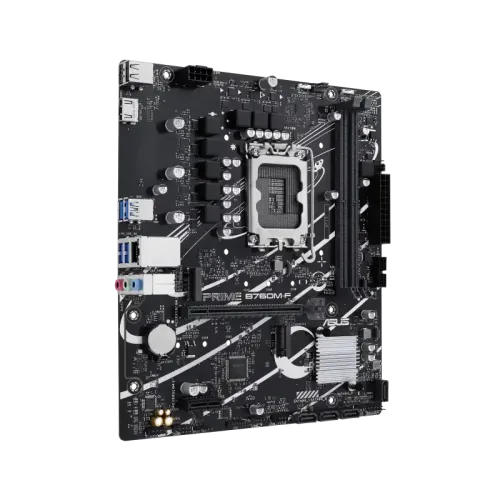

Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard

ASUS
Availability:

In stock
Add to wishlist
Compare
  • Model: PRIME B760M-F
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 2 x DIMM, Max. 96GB, DDR5
  • Graphics Output: 1 x HDMI
  • Features: 1 x Realtek 1Gb Ethernet

Short Description

  • Regular Price: 16,800৳
  • Special Price: 14,999৳
  • Availability: In Stock
  • Brand: ASUS
  • Product ID: 16415

14,999.00৳  16,800.00৳

In stock

Compare

Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard

Brand

ASUS
Model

PRIME B760M-F
Color

Black
Warranty

03 years warranty
Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
PCI Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x1 slot
M.2 Socket Total supports 2 x M.2 slots
Type DDR5
Slots 2 x DIMM
Supported Memory 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Maximum Memory Max. 96GB
Graphics  Supports 4K@30Hz as specified in HDMI 1.4.
HDMI 1x HDMI port
USB  Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
LAN Port  1 x Realtek 1Gb Ethernet port
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front panel audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header

Back Panel I/O Ports
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Special Features ASUS 5X PROTECTION III
DIGI+ VRM
LANGuard
Overvoltage protection
SafeSlot Core
Stainless-steel back I/O
ASUS Q-Design
Q-DIMM
Q-LED Core
Q-Slot
ASUS EZ DIY
ProCool
ASUS Thermal Solution
Aluminum heatsink design
Aura Sync
Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
Aura Sync
Fan Xpert 2+
Power Saving
Two-Way AI Noise Cancelation
AI Suite 3
DIGI+ VRM
PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

Description

Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard



The ASUS PRIME B760M-F is a high-performance micro-ATX motherboard designed to accommodate Intel’s 12th, 13th, and 14th generation processors with its Intel B760 chipset. Despite its compact size, it offers an array of features ideal for gamers, content creators, and professionals who need a reliable and powerful system. Equipped with PCIe 4.0 support, the motherboard ensures faster data transfer speeds, and its two PCIe 4.0 M.2 slots provide ultra-fast storage options, making it perfect for users looking for rapid boot times and seamless performance. Supporting the latest DDR5 RAM, the ASUS PRIME B760M-F future-proofs your system for enhanced responsiveness. The motherboard includes Realtek 1Gb Ethernet for stable and reliable network connectivity, ensuring smooth performance in gaming, streaming, and multitasking. Thermal management is optimized with a PCH heatsink, hybrid fan headers, and ASUS Fan Xpert 2+ to keep your system cool even during heavy workloads. For aesthetic customization, the board features Aura Sync RGB lighting with onboard addressable Gen 2 headers, allowing easy synchronization with other Aura Sync-capable components. The motherboard comes with a two-way AI noise cancelation feature, which significantly reduces background noise during voice chats, making it a great choice for gaming or video conferencing. With its robust feature set and future-ready capabilities, the ASUS PRIME B760M-F is perfect for those looking to build a powerful AI-powered PC, gaming setup, or professional workstation.
