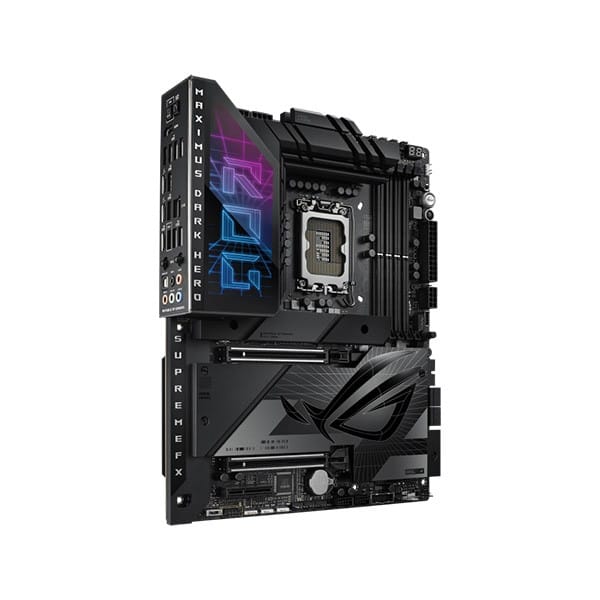

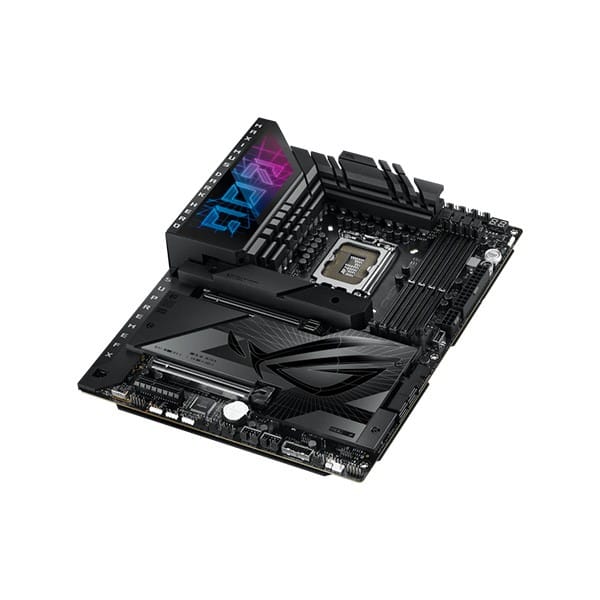

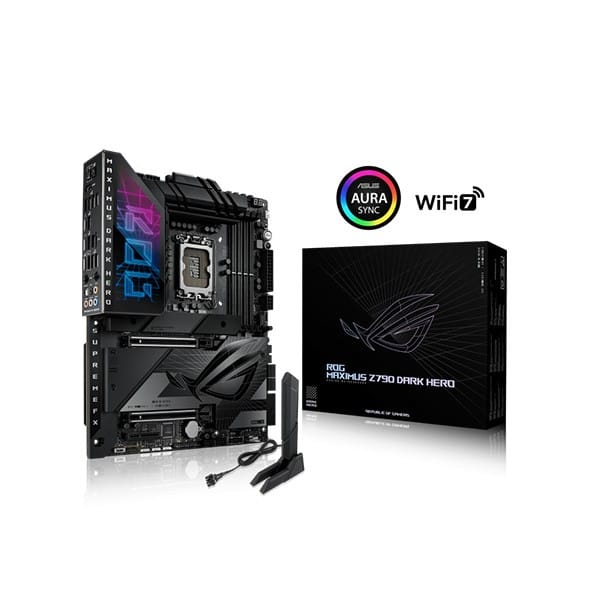

ASUS ROG Maximus Z790 Dark Hero Intel 14th Gen ATX Gaming Motherboard
ASUS ROG MAXIMUS Z790 Dark HERO Intel 13TH Gen ATX Motherboard - Image 2
ASUS ROG MAXIMUS Z790 Dark HERO Intel 13TH Gen ATX Motherboard - Image 3
ASUS ROG MAXIMUS Z790 Dark HERO Intel 13TH Gen ATX Motherboard - Image 4
ASUS ROG MAXIMUS Z790 Dark HERO Intel 13TH Gen ATX Motherboard - Image 5
ASUS ROG Maximus Z790 Dark Hero Intel 14th Gen ATX Gaming Motherboard
, ,

ASUS ROG MAXIMUS Z790 Dark HERO Intel 13TH Gen ATX Motherboard

ASUS
Add to wishlist
Compare
  • Chipset – Intel Z790
  • Memory Max. – 192GB
  • Memory Slot – 4
  • Sockets Supported – LGA1700
  • Supported CPU – Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
  • Generation – 12th/13th/14th

Short Description

  • Regular Price: 1,05,000৳
  • Special Price: 1,01,000৳
  • Availability: In Stock
  • Brand: ASUS
  • Product ID:13504

101,000.00৳  105,000.00৳

Compare
Brand

ASUS
Model

Z790 Dark HERO
Color

Black
Warranty

03 years warranty
Processor
Supported CPU Intel® Socket LGA1700 For Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold And Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 And Intel® Turbo Boost Max Technology 3.0
Mainboard
Chipset Intel® Z790
Memory
Memory 4 X DIMM Slots, Max. 192GB, DDR5
8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/
6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-Buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) Memory Module
ASUS Enhanced Memory Profile II (AEMP II)
Supports DIMM Flex
Storage
Supported Storage Total Supports 5 X M.2 Slots And 4 X SATA 6Gb/S Ports

Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 5.0 X4 Mode.)
M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode.)

Intel® Z790 Chipset
M.2_3 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode)
M.2_4 Slot (Key M), Type 2280 (Supports PCIe 4.0 X4 Mode)
M.2_5 Slot (Key M), Type 2280 (Supports PCIe 4.0 X4 Mode)
4 X SATA 6Gb/S Ports
Graphics
Graphics 1 X HDMITM Port
2 X Intel® Thunderbolt™ 4 Ports (USB Type-C®) Support DisplayPort And Thunderbolt™ Video Outputs
Audio & Microphone
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
– Impedance Sense For Front And Rear Headphone Outputs
– Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking
– High Quality 120 DB SNR Stereo Playback Output And 110 DB SNR Recording Input
– Supports Up To 32-Bit/384 KHz PlaybackAudio Features
– SupremeFX Shielding Technology
– ESS® ES9218 QUAD DAC
– Gold-Plated Audio Jacks
– Rear Optical S/PDIF Out Port
– Premium Audio Capacitors
Ports
Slots Intel® CoreTM Processors (14th & 13th & 12th Gen)
2 X PCIe 5.0 X16 Slots (Support X16 Or X8/X8 Modes)Intel® Z790 Chipset
1 X PCIe 4.0 X4 Slot
Internal I/O Ports Fan And Cooling Related
1 X 4-Pin CPU Fan Header
1 X 4-Pin CPU OPT Fan Header
1 X 4-Pin AIO Pump Header
4 X 4-Pin Chassis Fan Headers
1 X W_PUMP+ Header
1 X 2-Pin Water In Header
1 X 2-Pin Water Out Header
1 X 3-Pin Water Flow HeaderPower Related
1 X 24-Pin Main Power Connector
2 X 8-Pin +12V Power Connector
1 X 8-Pin PCIe Power ConnectorStorage Related
5 X M.2 Slots (Key M
) 4 X SATA 6Gb/S Ports

USB
1 X USB 20Gbps Connector (Supports USB Type-C®)
2 X USB 5Gbps Headers Support 4 Additional USB 5Gbps Ports
2 X USB 2.0 Headers Support 4 Additional USB 2.0 Ports

Miscellaneous
3 X Addressable Gen 2 Headers
1 X AURA RGB Header
1 X FlexKey Button
1 X Front Panel Audio Header (F_AUDIO)
1 X Start Button
1 X ReTry Button
1 X 10-1 Pin System Panel Header
1 X Thermal Sensor Header
1 X CPU Over Voltage Jumper
1 X Alternative PCIe Mode Switch

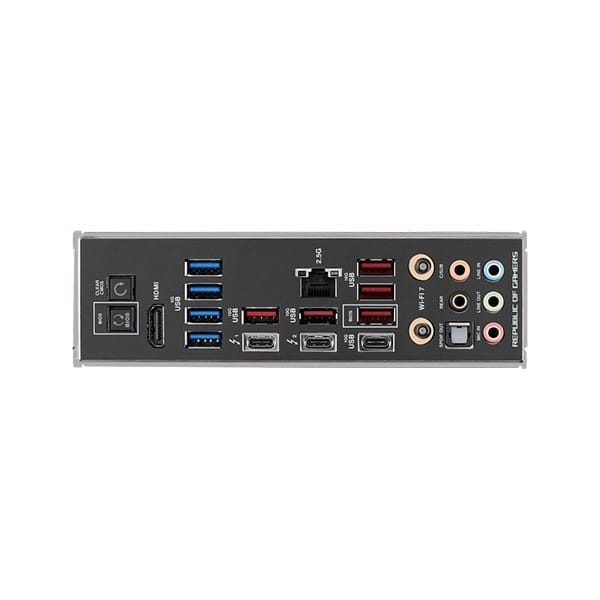

Back Panel:
2 X Thunderbolt™ 4 USB Type-C® Ports
6 X USB 10Gbps Ports (5 X Type-A + 1 X USB Type-C®)
4 X USB 5Gbps Ports (4 X Type-A)
1 X HDMITM Port
1 X Wi-Fi Module
1 X Intel® 2.5Gb Ethernet Port
5 X Gold-Plated Audio Jacks
1 X Optical S/PDIF Out Port
1 X BIOS FlashBack™ Button
1 X Clear CMOS Button

Ethernet:
1 X Intel® 2.5Gb Ethernet
ASUS LANGuard
USB Rear USB (Total 12 Ports)
2 X Thunderbolt™ 4 Ports (2 X USB Type-C®)
6 X USB 10Gbps Ports (5 X Type-A + 1 X USB Type-C®)
4 X USB 5Gbps Ports (4 X Type-A)Front USB (Total 9 Ports)
1 X USB 20Gbps Connector (Supports USB Type-C® With Up To 60W PD/QC4+)
2 X USB 5Gbps Headers Support 4 Additional USB 5Gbps Ports
2 X USB 2.0 Headers Support 4 Additional USB 2.0 Ports
Special Features
Special Features Extreme OC Kit
– FlexKey Button
– ReTry Button
– Start ButtonExtreme Engine Digi+
– 10K Black Metallic Capacitors
– MicroFine Alloy ChokeASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-Code
– Q-Connector
– Q-DIMM
– Q-LED (CPU [Red], DRAM [Yellow], VGA [White], Boot Device [Yellow Green]) With DRAM Detection
– Q-Slot

ASUS Thermal Solution
– M.2 Heatsink Backplate
– M.2 Heatsink
– Metal Backplate
– VRM Heatsink Design

ASUS EZ DIY
– BIOS FlashBack™ Button
– Clear CMOS Button
– CPU Socket Lever Protector
– ProCool II
– Pre-Mounted I/O Shield
– SafeSlot
– SafeDIMM

AURA Sync
– AURA RGB Header(S)
– Addressable Gen 2 Header(S)

Front Panel USB 20G With Quick Charge 4+ Support
– Support: Up To 60W Fast Charging And USB Wattage Watcher
– Output: 5/9/15/20V Max. 3A, PPS:3.3–21V Max. 3A
– Compatible With PD3.0 And PPS
Software Features ROG Exclusive Software
– ROG CPU-Z
– DTS® Sound Unbound
– Internet Security (1 Year Full Version)ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (1 Year Full Version)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (With AI Cooling II)
– GameFirst
– Two-Way AI Noise Cancelation
– Power Saving
– Sonic Studio
AI Suite 3
– Easy Optimization With AI Overclocking
– TPU
– DIGI+ Power Control
– Turbo App
– PC Cleaner
MyAsus
USB Wattage Watcher
Intel® Unison™
Adobe Creative Cloud (Free Trial)
WinRAR (40 Days Free Trial)UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
MemTest86
Technical Info
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Physical Specification
Form Factor ATX Form Factor
12 Inch X 9.6 Inch ( 30.5 Cm X 24.4 Cm )
Others
Other Features Wireless & Bluetooth:
Intel® Wi-Fi 7
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz Frequency Band
Support Wi-Fi 7 320MHz Bandwidth, Up To 5.76Gbps Transfer Rate.
Bluetooth® V5.4
Operating System: Windows® 11, Windows® 10 64-BitManageability: WOL By PME, PXE
