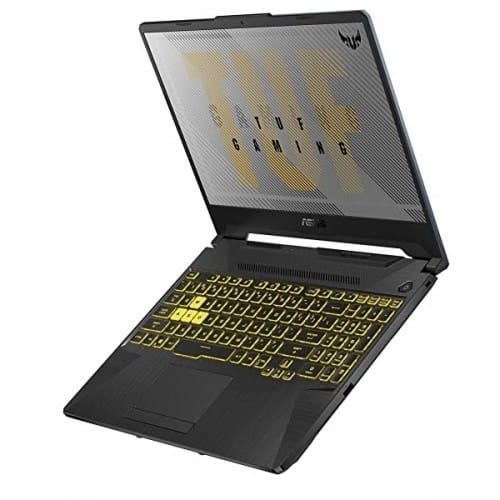

Asus TUF Gaming A15 FA506IV AMD Ryzen 7 4800H 15.6 Inch FHD Display RGB K/B Grey Metal (TUF) Gaming Laptop
Brand | ASUS |
---|---|
Model | TUF A15 FA506IV-R7 |
Color | Metal Gray |
Lithography |
Basic Information | ||
Processor | Ryzen 7 4800H Processor (8M Cache, 2.9GHz up to 4.2GHz) | |
Display | 15.6″ (16:9) LED-backlit FHD (1920×1080) 144Hz Anti-Glare IPS-level Panel with 45% NTSC | |
Memory | 8GB DDR4 3200MHz SO-DIMM RAM | |
Storage | 512GB M.2 NVMe PCIe 3.0 SSD (Extra HDD slot available) | |
Graphics | Nvidia GeForce RTX 2060 with 6GB GDDR6 Graphics | |
Operating System | Windows 10 | |
Battery | 48WHrs, 3S1P, 3-cell Li-ion | |
Adapter | ø6.0 230W AC Adapter Output: 19.5V DC, 11.8A, 230W Input: 100~240V AC, 50/60Hz universal |
|
Audio | Built-in array microphone Built-in speaker DTS software |
|
Special Feature | TUF Gaming Backpack Bezel Label TUF Gaming Mouse M5 |
|
Input Devices | ||
Keyboard | RGB Back-lit Keyboard | |
WebCam | HD 720p CMOS module | |
Network & Wireless Connectivity | ||
LAN | 1 x RJ45 LAN Jack for LAN insert | |
Wi-Fi | Wi-Fi 5 (802.11ac) | |
Bluetooth | Bluetooth 5.0 (Dual-band) 2×2 | |
Ports, Connectors & Slots | ||
USB (s) | 2 x Type-A USB 3.2 (Gen 1) 1 x Type-C USB 3.2 (Gen 2) with display supportDP1.4 1 x Type-A USB2.0 |
|
HDMI | 1 x HDMI 2.0b | |
Audio Jack Combo | 1 x 3.5mm combo audio jack | |
Extra RAM Slot | Yes (Upgrade up to 32GB) | |
Physical Specification | ||
Dimensions (W x D x H) | 35.9 x 25.6 x 2.47 ~ 2.49 cm 14.52 x 10.07 x 0.98 ~ 0.97 inches |
|
Weight | 2.30 Kg 5.07 Lb |
|
Color(s) | Metal Gray | |
Warranty | ||
Manufacturing Warranty | 02 Years International Limited Warranty (1 Year for Battery and Adapter) |
Asus TUF Gaming A15 FA506IV
Play and travel without worries with the ASUS 15.6″ TUF Gaming A15 Series TUF506IV Gaming Laptop. Built for durability, TUF Gaming laptops undergo extra durability tests to face a bit more than your typical everyday use. Specs-wise, it’s equipped with a 2.9 GHz AMD Ryzen 7 4800H eight-core processor, 16GB of DDR4 memory, a 1TB NVMe PCIe M.2 SSD, and an NVIDIA GeForce RTX 2060 graphics card. With these combined, the system will be able to quickly boot applications as well as run graphically demanding games. Its 15.6″ display is built with an IPS panel featuring a 1920 x 1080 Full HD resolution for clear details and a fast 144 Hz refresh rate for reduced blur. Its keyboard has customizable RGB backlighting, and other notable features include Wi-Fi 5, Bluetooth 5.0, an HDMI port, USB Type-A and Type-C ports, a webcam, speakers, microphones, and a combo audio jack. The operating system installed is Windows 10 Home.
NVIDIA GeForce RTX 20-Series
NVIDIA GeForce RTX 20-series graphics cards are built on the Turing architecture. Combining traditional CUDA cores with RT and Tensor cores for ray-tracing and AI, these cards offer more realistic lighting, shadows, and reflections in real-time.
144 Hz Refresh Rate
A fast 144 Hz refresh rate helps to reduce blurring and improve responsiveness so users have a more fluid gaming experience.
Keyboard
The backlit keyboard supports ASUS AURA RGB lighting for a variety of color options and lighting effects. The keys are also rated for up to 20 million presses and feature Overstroke technology, which helps to improve keystroke responsiveness.
Audio
Speakers and DTS:X Ultra technology deliver a loud, immersive listening experience fit for music, movies, and games.
Cooling
Multiple heat pipes, heat sinks, and fans all work together to dissipate heat from the system. The fans also have a self-cleaning mode to prevent dust buildup.
MIL-STD-910H Rated
This AUS TUF Gaming Laptop is MIL-STD-910H rated to ensure it can survive the wear and tear of everyday use, some shortfalls, and varying environments.
Notebook Model – Asus TUF Gaming A15 FA506IV, Notebook Series – TUF Gaming, Processor Brand – AMD, Processor Type – Ryzen 7, Processor Model – Ryzen 7 4800H, Processor Base Frequency – 2.90 GHz, Processor Max Turbo Frequency – 4.20 GHz, Processor Core – 8, Processor Thread – 16, Processor Cache – 8 MB, Display Size – 15.6 Inch, Display Technology – FHD LED Display, Display Resolution – 1920 x 1080, Display Surface – Anti-Glare, Touch Display – No, Display Refresh Rate – 144 Hz, Memory (RAM) – 8 GB, Memory Type – DDR4, Memory Bus (MHz) – 3200 MHz, Total Memory Slot – 2, Max Memory Support – 32 GB, Storage – 512GB SSD, Installed SSD Type – PCIe, Optical Drive – No-ODD, Multimedia Card Slot – None, Supported Multimedia Card – None, Graphics Chipset – Nvidia RTX 2060 Graphics, Graphics Memory Accesibility – Dedicated, Graphics Memory – 6GB, Graphics Memory Type – GDDR6, LAN – Yes, WiFi – Integrated Wi-Fi 5 (802.11 ac (2×2)), Bluetooth – Bluetooth 5.0, USB 2 Port – 1 x USB2.0 Type-A, USB 3 Port – 2 x USB3.2 Gen 1 Type-A, USB C / Thunderbolt Port – 1 x USB3.2 Gen 2 Type-C, HDMI Port – 1, Headphone Port – Combo, Microphone Port – Combo, Speaker – DTS X Ultra, WebCam – HD Webcam, Keyboard Layout – Chiclet keyboard with isolated numpad key, Keyboard Back-lit – Yes, RGB Keyboard – Yes, Num Key pad – Yes, TPM – Yes, Security Lock Slot – Kensington Lock, Battery Capacity – 48Wh, Battery Type – Li-Polymer, Power Adapter – 150W power adapter, Operating System – Windows 10 Home, Color – Grey Metal, Dimension (W x D x H) – 359.8 x 256 x 22.8 – 24.7 mm, Weight – 2.3Kg, Special Feature – LED-backlit FHD 144Hz Anti-Glare IPS-level Panel Display, HD 720p CMOS module (Webcam), HDMI support 2.0b, DTS X Ultra (Audio), Others – 1 x AC adapter plug, Output: 20 V DC, 7.5 A, 150 W / 9 A , 180 W 19.5 V DC, 11.8 A, 230 W, Input: 100 -240 V AC, 50/60 Hz universal, Gaming Series: FA Series, Warranty – 2 year (1 year for Battery and Adapter), Warranty Claim Duration (Approximate) – Estimated Warranty Claim Duration 20 Days. It may take additional time up to 40 days, Part Number – HN352T, Country of Origin – Taiwan, Made in / Assembled in – China
