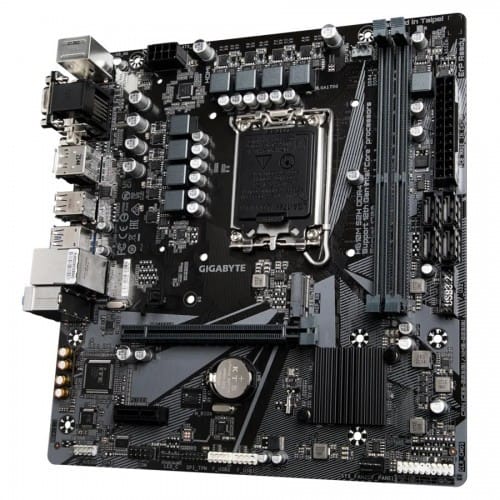

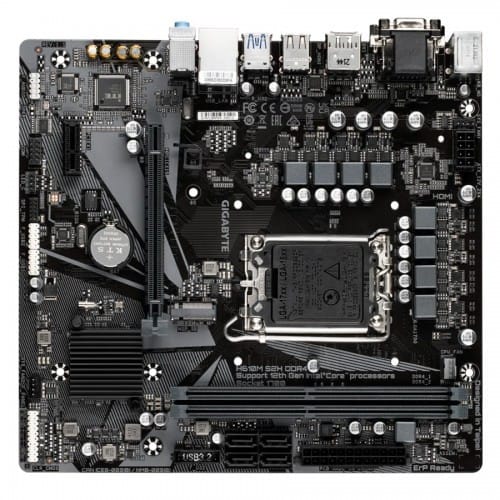

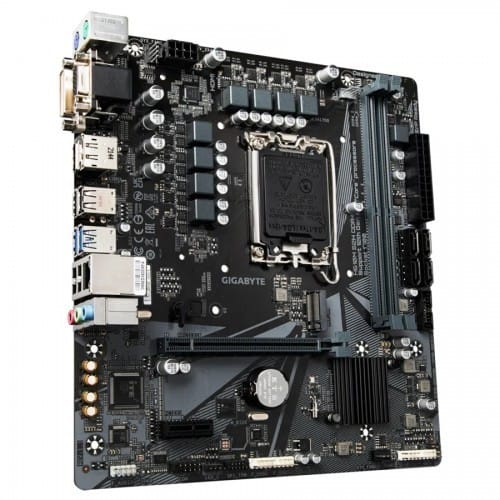

Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard

Gigabyte

  • Model: H610M S2H DDR4
  • LGA1700 socket: Supports 12th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • GIGABYTE Gaming LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2

Short Description

  • Regular Price: 10,600৳
  • Special Price: 9,800৳
  • Availability: In Stock
  • Brand: GIGABYTE
  • Product ID: 10001

9,800.00৳  10,600.00৳

Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard

Brands

Gigabyte

Model

H610M S2H DDR4

Color

Black

Warranty

03 years warranty

Supported CPU LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors
L3 cache varies with CPU
Chipset Intel H610 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
PCI 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
2 x PCI Express x1 slots
(The PCIEX1 slots conform to PCI Express 3.0 standard.)
Memory
Type DDR4
Slots 4 x DDR DIMM sockets
Supported Memory Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
Dual-channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules maximum
Maximum Memory up to 128 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version.
Support for up to 4 displays at the same time
Connector & Ports
HDMI 1 x HDMI port display
Display Port (s) 2 x DisplayPort
D-Sub (s) 1 x D-Sub port USB
USB (s) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel Optane Memory Ready

Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
cFosSpeed

Description

Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard

The Gigabyte H610M S2H DDR4 features LGA1700 socket Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It has a 6+1+1 Hybrid Digital VRM Design. Solid capacitors to improve transient response and minimize oscillation. It is equipped with Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. It is designed with HDMI / DVI-D / D-Sub Ports for Multiple Displays. The Gigabyte H610M S2H DDR4 motherboard comes with 3 years of warranty.
