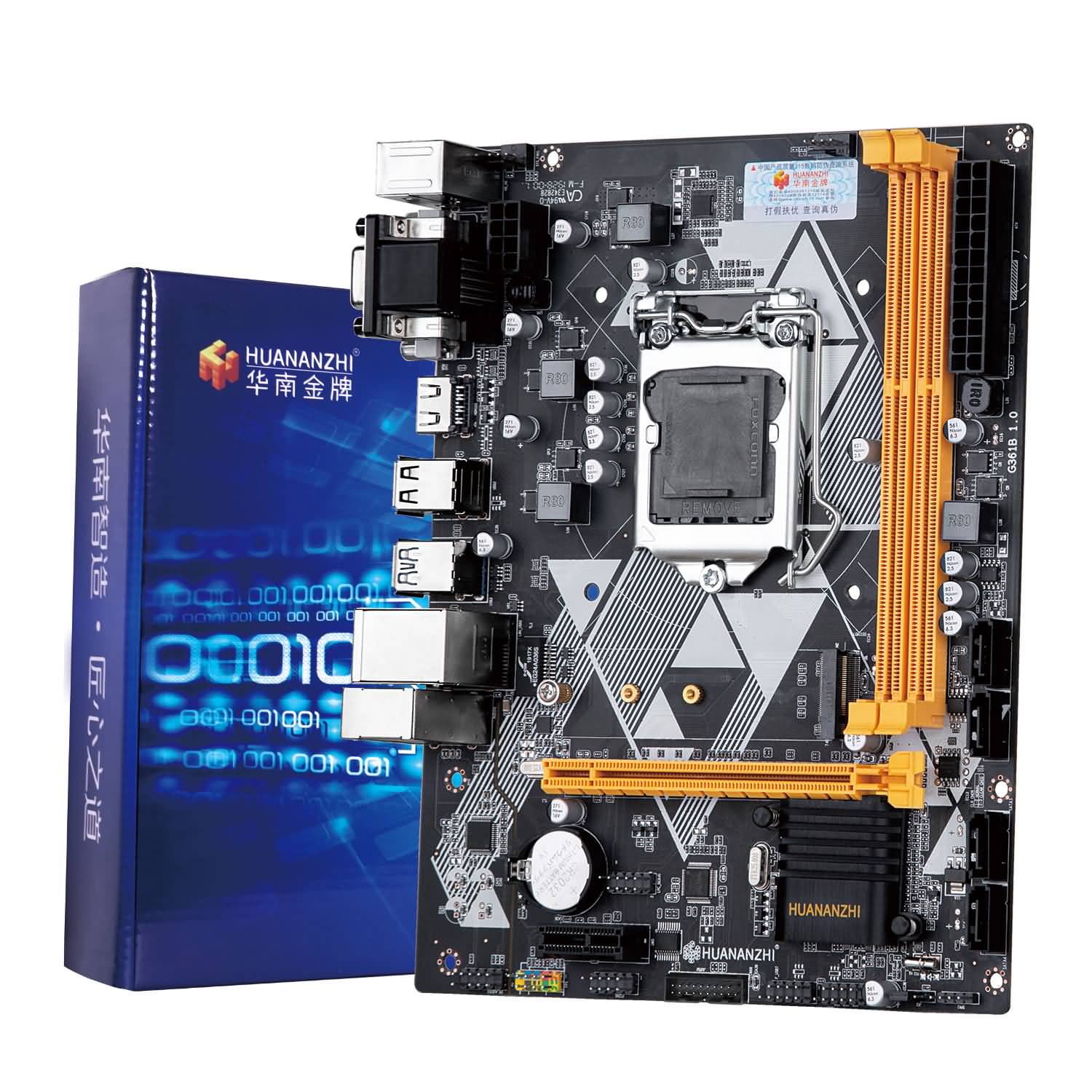

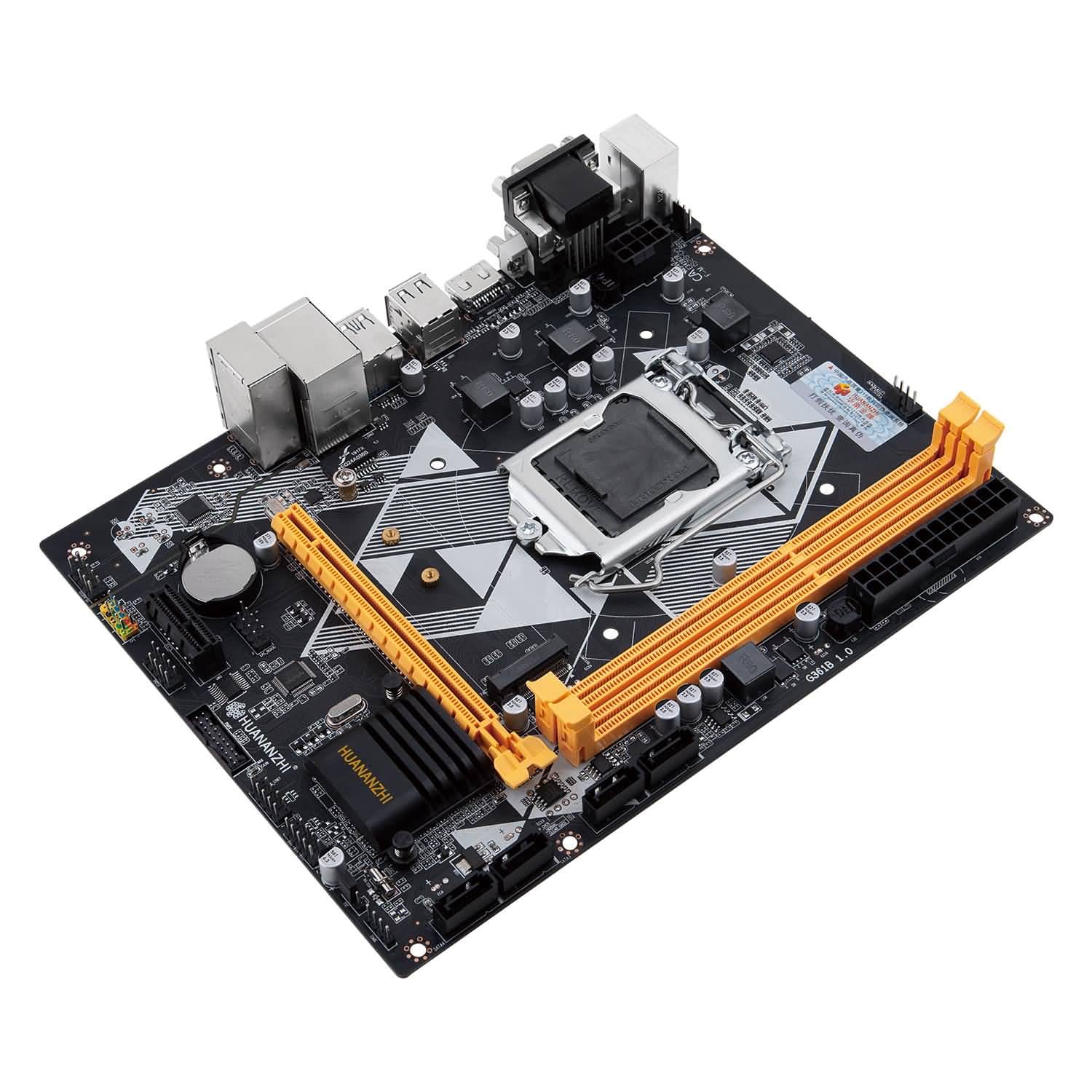

HUANANZHI B85 DDR-3 4th Gen NVME Support M-ATX Motherboard

HUANANZHI

  • Model: Huananzhi B85
  • Support Intel LGA1150 Processors
  • PCIe M.2 NVME PCIe
  • 2xDDR3 Memory Slot, DDR3 1333/1066/1600MHz
  • HDMI+VGA+DVI video interface

Short Description

  • Regular Price: 6,900
  • Special Price: 5,600৳
  • Availability: In Stock
  • Brand: HUANANZHI
  • Product ID: 11553

5,600.00৳  6,900.00৳

Compare

HUANANZHI B85 intel 4 Gen SSD NVME Support M-ATX Motherboard

Brand

HUANANZHI

Model

H85

Supported CPU

Supports 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
Supports Intel® Turbo Boost 2.0 Technology

Chipset

Intel® H85

BIOS

32Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 1.1 Compliant wake-up events
SMBIOS 2.3.1 support
CPU, DRAM Voltage multi-adjustment

Form Factor

Micro ATX Form Factor; 210x168mm

Memory Type

Dual Channel DDR3/DDR3L Memory Technology

Memory Slots

2 x DDR3/DDR3L DIMM Slots

Supported Memory

DDR3 1600/1333 MHz,
Supports non-ECC Memory, Dual Channel Memory Architecture

Maximum Memory

16GB

Expansion Slots PCI

1 x PCIe 3.0 x16, Slot (PCIE2: x16 mode)
1 x PCI Express 2.0 x1 Slot

Storage

1 x M.2 Socket 3, NVMe
2 x SATA2.0 (3GB/s) port(s)
2 x SATA3.0 (6GB/s) port(s)

Graphics

Integrated Graphics Processor,

1 x VGA port,

1 x DVI-I port,

1 x HDMI port

Supports NVIDIA® and AMD® Graphics Cards

Audio

Realtek® ALC662 5.1-Channel, High Definition Audio CODEC

M.2 Socket

1 x M.2 PCIe NVMe Support

Internal I/O Ports

USB3.0x2 USB2.0x8(including expansion)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)

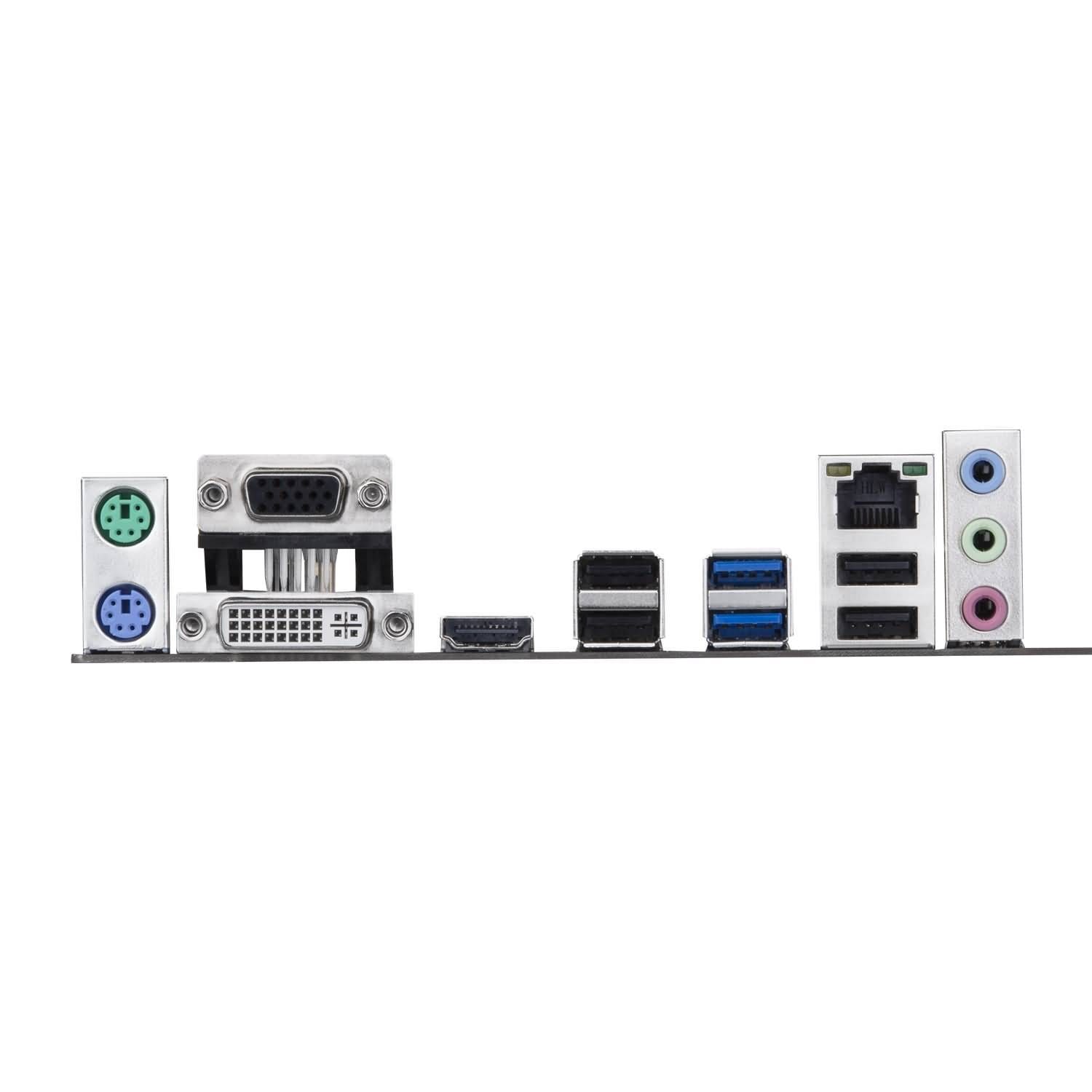

Black I/O Ports

1 x PS/2 Keyboard and Mouse
1 x LAN (RJ45) port(s)
4 x USB 2.0
2 x USB 3.0
3 x Audio jack(s)

Power interface

24pin+8pin

Dimension

210x168mm

Color

Black

Warranty

03 Years Replacement Warranty

Description

HUANANZHI B85 DDR-3 4th Gen NVME Support M-ATX Motherboard

Quality: HUANANZHI focusing on PC hardware development and production for more than 10 years, quality control, and production in strict accordance with the ISO system. Please check the store for the original Factory authorization certificate. In order to prevent counterfeit and shoddy manufacturers from entering, please make sure the product has the certificate.

Warranty: Warranty replacement within 12-36 months (In the event of a failure within the scope of the warranty, we will take back the original product. And fix or replace the same model with qualified quality function to the customer.)

HUANANZHI B85 intel 4 Gen SSD NVME Support M-ATX Motherboard Supports LGA1150 series processors Quickly edit images and videos, quickly multitask between programs, and show your creativity. Support NVIDIA and AMD series graphics cards. The CPU has Integrated Graphics output VGA / DVI-I / HDMI. Help you increase the speed of execution of various tasks, accelerate your game, and help you achieve a professional gaming environment. Support non-ECC PC memory. Support DDR3 memory, 2 channel up to 16GB, Ultra-fast PCIe M.2 (NVMe) slot design HUANANZHI M.2 solution, provide ultra-high storage performance, it can support PCIe or SATA M.2 solid state drives. Warranty03 years warranty.
