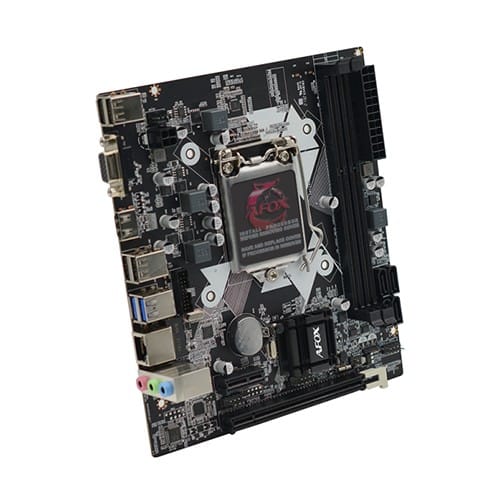

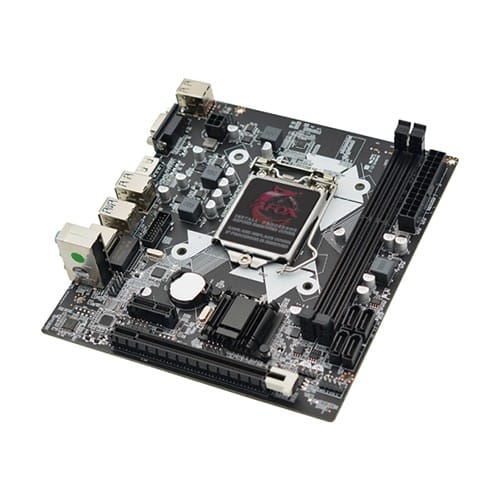

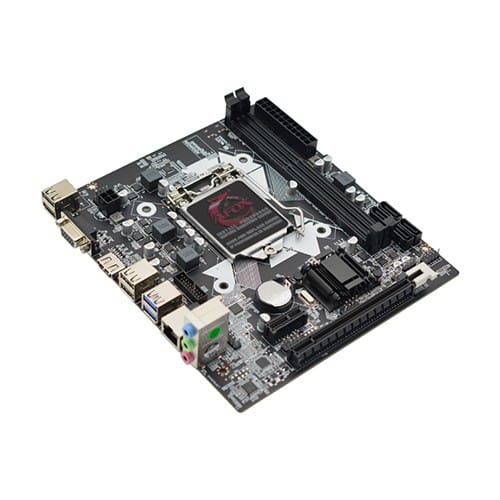

Afox IH81-MA2 DDR-3 Intel 4th Gen NVNe Support Motherboard
| Brand | AFOX |
|---|---|
| Model | IH81-MA2 |
| Color | Black |
| Warranty | 02 years warranty |
| Platform | INTEL Socket LGA1150 |
| Chipset | Intel H81 |
| CPU Supports | Intel 4th generation Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® / Xeon® Processors (CPU up to 95 watts) |
| FSB | 1066 / 1333 / 1600 / 1860MHz |
| Memory | Dual Channel DDR3 1066 / 1333 / 1600 / 1860MHz |
| Dimm | 2 x Memory Slots (Max. capacity of system memory 16GB) |
| Onboard Graphics | Integrated Graphics Processor |
| PCI/PCI-E Slots | 1 x PCI Express x16 2.0 slot, 1 x PCI Express x1 slot |
| SATA | 2 x SATA3, 2 x SATA2 |
| IDE | N/A |
| Audio | Realtek 662 on board, Supports 6-channel audio-out |
| LAN | Realtek RTL8105/8106 10/100Mbps Ethernet on board |
| Back Panel I/Os | 1 x HDMI Port 1 x D-Sub (VGA) Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port with LED 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
| ON-Board Pinheaders/Connectors | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s), 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader |
| BIOS | UEFI BIOS |
| Form Factor | Micro-ATX (17*19cm) |
| Mounting | 4 mounting holes |
| Accessories | 1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
