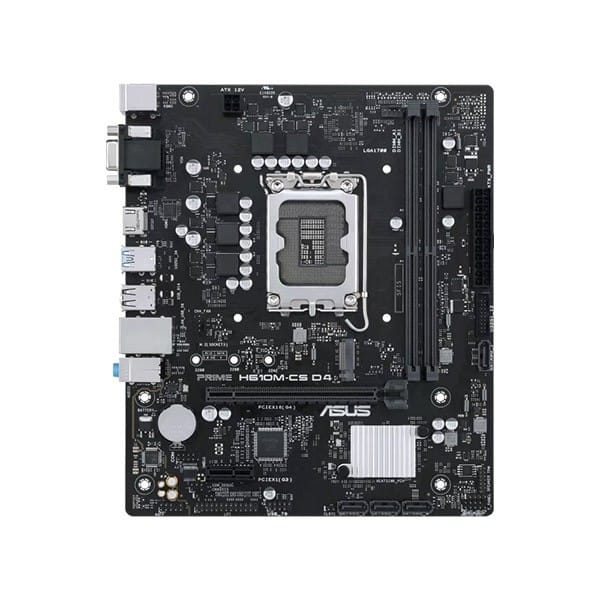

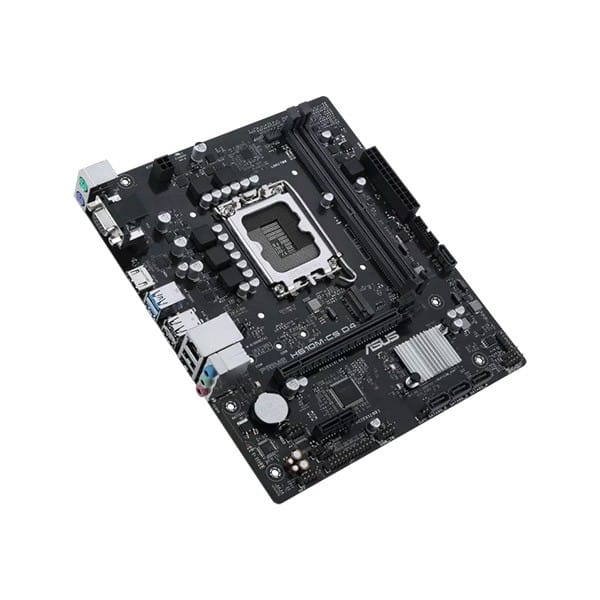

Asus PRIME H610M-CS D4 DDR-4 12th/13th/14th Gen mATX Motherboard
In stock
- Model: PRIME H610M-CS D4
- Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 2 x DIMM, Max. 64GB, DDR4
- Graphics Output: 1 x VGA, 1 x HDMI
- Features: 1 x Realtek 1Gb Ethernet
Short Description
- Regular Price: 12,320৳
- Special Price: 11,100৳
- Availability: In Stock
- Brand: ASUS
- Product ID: 15222
11,100.00৳ 12,320.00৳
In stock
CompareAsus PRIME H610M-CS D4 DDR-4 12th/13th/14th Gen mATX Motherboard
| Brand | ASUS |
|---|---|
| Model | PRIME H610M-CS D4 |
| Generation | 12th Gen, 13th Gen, 14th Gen |
| Processor Type | |
| Color | Black |
| Warranty | 03 Years Replacement Warranty |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H610 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |
|
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | 1 x M.2 slot | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | 3200MHz/ 3000MHz/ 2933MHz/ 2800MHz/ 2666MHz/ 2400MHz/ 2133MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | 1 x VGA port 1 x HDMITM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMITM 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| VGA (s) | 1 x VGA port | |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet | |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
|
| Others | ||
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot – Q-LED Core ASUS Thermal Solution – Aluminum heatsink design USBGuard |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
Description
Asus PRIME H610M-CS D4 DDR-4 12th/13th/14th Gen mATX Motherboard
The Asus PRIME H610M-CS D4 mATX Motherboard is a versatile and reliable micro-ATX motherboard designed to accommodate Intel’s latest 12th, 13th, and 14th generation processors with its LGA1700 socket. This motherboard boasts an Intel H610 chipset with modern features tailored for seamless computing experiences. Key features include DDR4 memory support, PCIe 4.0 compatibility, and an M.2 slot for ultra-fast storage solutions. Connectivity options are abundant with Realtek 1 Gb Ethernet, HDMI, D-Sub, and USB 3.2 Gen 1 ports, ensuring smooth data transfer and peripheral connectivity. For enhanced durability and longevity, the motherboard is fortified with 5X Protection III, incorporating multiple hardware safeguards to protect against various hazards. Additionally, a dedicated PCH heatsink provides a comprehensive cooling solution, ensuring optimal thermal performance under heavy workloads. he luminous anti-moisture coating, which shields critical components from moisture and corrosion, thereby prolonging the lifespan of the motherboard. This coating adds an extra layer of protection, making the motherboard suitable for diverse environmental conditions. The Asus PRIME H610M-CS D4 mATX Motherboard offers a balance of performance, connectivity, and durability, making it an ideal choice for a wide range of computing needs, from everyday tasks to gaming and content creation.
Buy Asus PRIME H610M-CS D4 DDR-4 12th/13th/14th Gen mATX Motherboard Shop in BD
In Bangladesh, you can get the original Asus PRIME H610M-CS D4 mATX Motherboard From Rose Tech. We have a large collection of the latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Rose Tech Shop to get yours at the lowest price. The Asus PRIME H610M-CS D4 DDR-4 12th/13th/14th Gen mATX Motherboard comes with 3 years warranty.
Based on 0 reviews
Be the first to review “Asus PRIME H610M-CS D4 DDR-4 12th/13th/14th Gen mATX Motherboard”
