| Brand | ASUS |
|---|---|
| Model | ROG STRIX B760-A GAMING WIFI |
| Color | Black |
| Generation | 12th Gen, 13th Gen |
| Warranty | 03 years warranty |
| Supported CPU | Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input Supports up to 32-Bit/384 kHz playbackAudio Features SupremeFX Shielding Technology Savitech SV3H712 AMP Premium audio capacitors Dedicated audio PCB layers Audio cover |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slotIntel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots* PCIe x1(G3)-1 and PCIe x1(G3)-2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)-1 or PCIe x1(G3)-2 slot is operating, PCIe x16(G3) will only supports x2 mode. |
| Type | DDR5 |
| Slots | 4 x DIMM slots |
| Supported Memory | 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Max Memory | Max. 192GB |
| HDMI | 1 x HDMI port |
| Display Port | 1 x DisplayPort |
| USB | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2×2 (20G) port (1 x USB Type-C) 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) 3 x USB 3.2 Gen 1 (5G) port (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A)Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports |
| LAN Port | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless Communication module | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio | 5 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related USB Miscellaneous |

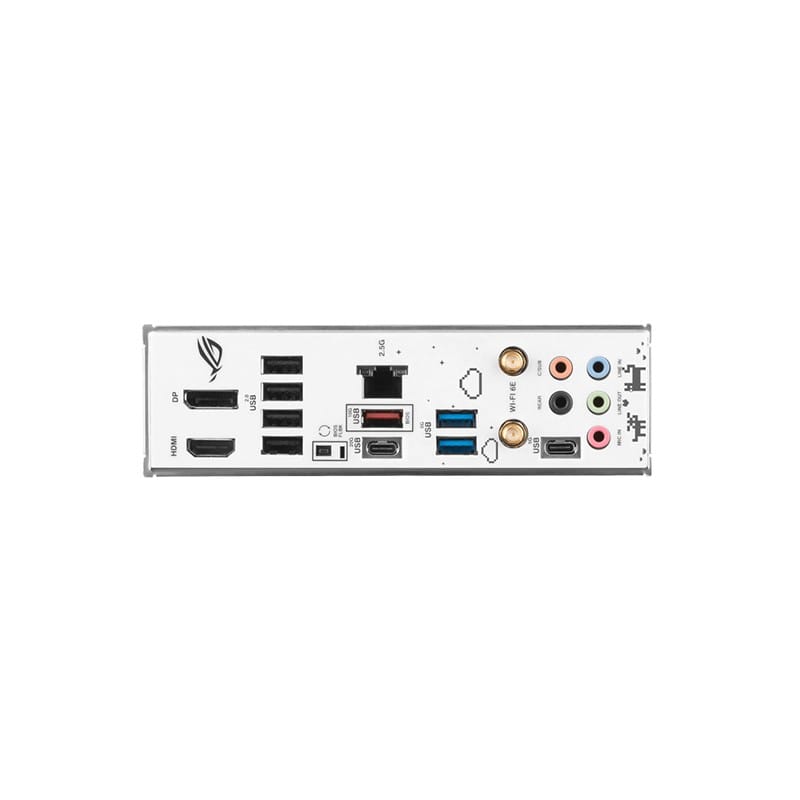

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 (20G) port (1 x USB Type-C) 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| Graphics | 1 x DisplayPort** 1 x HDMI port*** |
| Special Features | Extreme Engine Digi+ 5K Black Metallic CapacitorsASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution ASUS EZ DIY Aura Sync |
| Bundled Software | ROG Exclusive Software GameFirst VI ROG CPU-Z Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion Sonic Radar III DTS Sound UnboundASUS Exclusive Software Armoury Crate AIDA64 Extreme (60 days free trial) Aura Creator Aura Sync Fan Xpert 4 Power Saving Two-Way AI Noise Cancellation Performance and Power Saving Utility AI Suite 3 DIGI+ VRM PC Cleaner MyAsus Adobe Creative Cloud (Free Trial) Norton 360 for Gamers WinRAR UEFI BIOS
|
