Intel® Socket LGA1700 For 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold And Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 And Intel® Turbo Boost Max Technology 3.0** * Refer To Www.Asus.Com For CPU Support List. ** Intel® Turbo Boost Max Technology 3.0 Support Depends On The CPU Types.
Chipset
Intel® Z790 Chipset
Memory
4 X DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-Buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported Memory Types, Data Rate (Speed), And Number Of DRAM Modules Vary Depending On The CPU And Memory Configuration, For More Information Please Refer To CPU/Memory Support Under The Support Tab Or Visit Https://Www.Asus.Com/Support/ ** Non-ECC, Un-Buffered DDR5 Memory Supports On-Die ECC Function.
Graphics
1 X DisplayPort** 1 X HDMI® Port*** * Graphics Specifications May Vary Between CPU Types. Please Refer To Ww.Intel.Com For Any Updates. ** Supports Max. 8K@60Hz As Specified In DisplayPort 1.4. *** Supports 4K@60Hz As Specified In HDMI 2.1. **** VGA Resolution Support Depends On Processors’ Or Graphic Cards’ Resolution.
Slots
Intel® 13th & 12th Gen Processors 1 X PCIe 5.0 X16 SlotIntel® Z790 Chipset 2 X PCIe 4.0 X16 Slots (Support X4 Mode) 1 X PCIe 3.0 X1 Slot* Please Check The PCIe Bifurcation Table On The Support Site (Https://Www.Asus.Com/Support/FAQ/1037507/). ** To Ensure Compatibility Of The Device Installed, Please Refer To Https://Www.Asus.Com/Support/ For The List Of Supported Peripherals.
Supported Storage
Total Supports 4 X M.2 Slots And 4 X SATA 6Gb/S Ports*Intel® 13th & 12th Gen Processors M.2_1 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 4.0 X4 Mode)Intel® Z790 Chipset M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode) M.2_3 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 4.0 X4 Mode) M.2_4 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 & SATA Modes) 4 X SATA 6Gb/S Ports * Intel® Rapid Storage Technology Supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Bluetooth
Bluetooth® V5.3
LAN
1 X Intel® 2.5Gb Ethernet ASUS LANGuard
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance Sense For Front And Rear Headphone Outputs – Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking – High Quality 120 DB SNR Stereo Playback Output And 113 DB SNR Recording Input – Supports Up To 32-Bit/384 KHz Playback* Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear Optical S/PDIF Out Port – Premium Audio Capacitors – Audio Cover *The Rear Panel Line Out Port Does Not Support Spatial Audio. If You Wish To Use Spatial Audio Make Sure To Connect Your Audio Output Device To The Audio Jack On The Front Panel Of Your Chassis.
USB Port
Rear USB (Total 12 Ports) 1 X USB 3.2 Gen 2×2 Port (1 X USB Type-C®) 3 X USB 3.2 Gen 2 Ports (2 X Type-A + 1 X USB Type-C®) 4 X USB 3.2 Gen 1 Ports (4 X Type-A) 4 X USB 2.0 Ports (4 X Type-A)Front USB (Total 7 Ports) 1 X USB 3.2 Gen 2×2 Connector (Supports USB Type-C® With Up To 30W PD Fast-Charge) 1 X USB 3.2 Gen 1 Header Supports 2 Additional USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support 4 Additional USB 2.0 Ports
Internal I/O Ports
Fan And Cooling Related 1 X 4-Pin CPU Fan Header 1 X 4-Pin CPU OPT Fan Header 1 X 4-Pin AIO Pump Header 5 X 4-Pin Chassis Fan HeadersPower Related 1 X 24-Pin Main Power Connector 2 X 8-Pin +12V Power ConnectorsStorage Related 4 X M.2 Slots (Key M) 4 X SATA 6Gb/S PortsUSB 1 X USB 3.2 Gen 2×2 Connector (Supports USB Type-C® With Up To 30W PD Fast-Charge) 1 X USB 3.2 Gen 1 Header Supports 2 Additional USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support 4 Additional USB 2.0 PortsMiscellaneous 3 X Addressable Gen 2 Headers 1 X Aura RGB Header 1 X CPU Over Voltage Jumper 1 X Front Panel Audio Header (AAFP) 1 X 20-3 Pin System Panel Header With Chassis Intrude Function 1 X Start Button 1 X Thermal Sensor Header 1 X Thunderbolt™ Header
External I/O Ports
1 X USB 3.2 Gen 2×2 Port (1 X USB Type-C®) 3 X USB 3.2 Gen 2 Ports (2 X Type-A + 1 X USB Type-C®) 4 X USB 3.2 Gen 1 Ports (4 X Type-A) 4 X USB 2.0 Ports (4 X Type-A) 1 X DisplayPort 1 X HDMI® Port 1 X Wi-Fi Module 1 X Intel® 2.5Gb Ethernet Port 5 X Gold-Plated Audio Jacks* 1 X Optical S/PDIF Out Port 1 X BIOS FlashBack™ Button 1 X Clear CMOS Button *The Rear Panel Lime (Line Out) Port Does Not Support Spatial Audio. If You Wish To Use Spatial Audio Make Sure To Connect Your Audio Output Device To The Audio Jack On The Front Panel Of Your Chassis.
WiFi
Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 A/B/G/N/Ac/Ax) Supports 2.4/5/6GHz Frequency Band
Form Factor
ATX Form Factor 12 Inch X 9.6 Inch ( 30.5 Cm X 24.4 Cm )
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Special Features
Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-DIMM – Q-LED (CPU [Red], DRAM [Yellow], VGA [White], Boot Device [Yellow Green]) – Q-Slot ASUS Thermal Solution – M.2 Heatsink Backplate – M.2 Heatsink – VRM Heatsink DesignASUS EZ DIY – BIOS FlashBack™ Button – BIOS FlashBack™ LED – Clear CMOS Button – CPU Socket Lever Protector – ProCool II – Pre-Mounted I/O Shield – SafeSlot – SafeDIMMAura Sync – Aura RGB Header – Addressable Gen 2 HeadersFront Panel USB 3.2 Gen 2×2 With PD Fast-Charge Support – Support: Up To 30W Charging – Output: 5/9V Max. 3A, 12V Max. 2.5A – Compatible With PD3.0
HDMI
1 X HDMI® Port
Software Features
ROG Exclusive Software – GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound UnboundASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 Days Free Trial) – Aura Creator- Aura Sync – Fan Xpert 4 (With AI Cooling II) – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – Easy Optimization With AI Overclocking – TPU – DIGI+ VRM – Turbo App – PC Cleaner MyAsus Norton 360 For Gamers WinRARUEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey MemTest86
Others
Manageability: WOL By PME, PXE Operating System: Windows® 11, Windows® 10 64-Bit

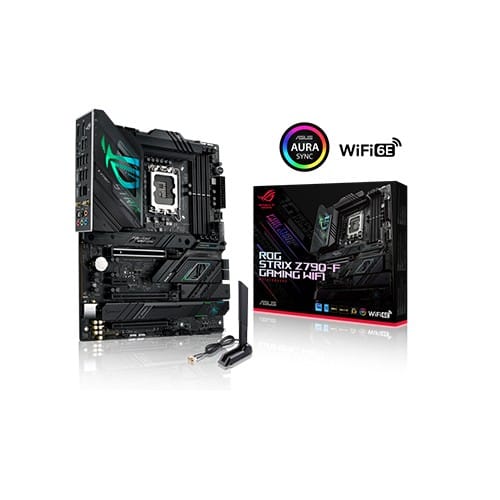

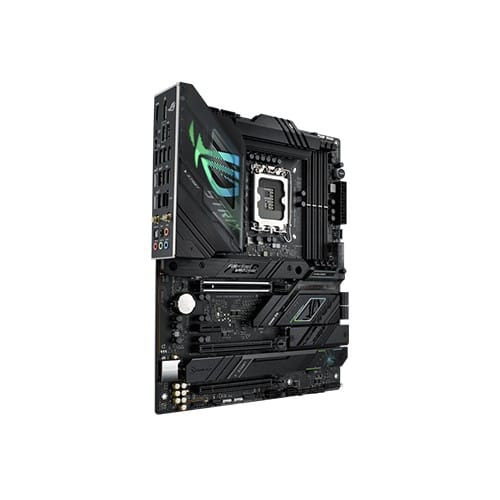

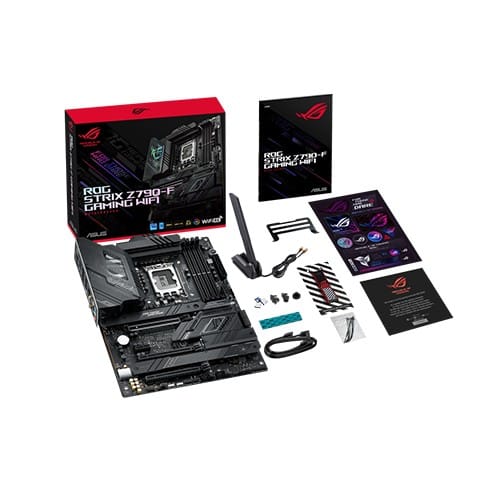

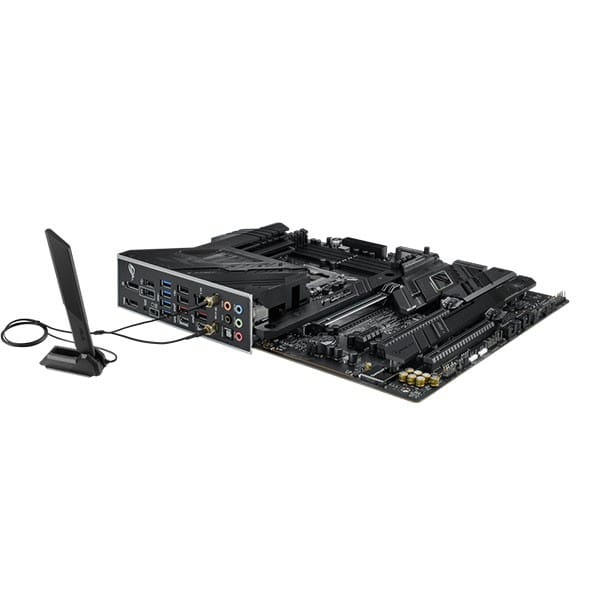

ASUS ROG STRIX Z790-F GAMING WIFI 12TH/13TH GEN MOTHERBOARD
Asus ROG STRIX Z790-F GAMING WIFI 12th/13th Gen Motherboard. The Asus ROG STRIX Z790-F GAMING WIFI 12th/13th Gen Motherboard is a high-performance motherboard designed for use with 12th and 13th Gen Intel Core processors, Pentium Gold, and Celeron processors. The motherboard supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. The Intel Z790 chipset supports a maximum memory of 128GB, with DDR5 memory speeds of up to 7800+ MHz, and OptiMem II technology for improved memory stability. Graphics options include 1 x DisplayPort, 1 x HDMI port, and support for up to 8K@60Hz and 4K@60Hz resolutions. The motherboard also features expansion slots for 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16 (supporting x4 mode), and 1 x PCIe 3.0 x1. The storage options include 4 x M.2 slots and 4 x SATA 6Gb/s ports with Intel Rapid Storage Technology supporting PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Ethernet is provided by 1 x Intel 2.5Gb Ethernet, while Wi-Fi 6E and Bluetooth v5.3 are also available.The motherboard supports a range of USB ports, including 1 x USB 3.2 Gen 2×2 port, 3 x USB 3.2 Gen 2 ports, 4 x USB 3.2 Gen 1 ports, and 4 x USB 2.0 ports. The audio features include ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, Savitech SV3H712 AMP, and a rear optical S/PDIF out port, among others. The back panel I/O ports include 1 x USB 3.2 Gen 2×2 port, 3 x USB 3.2 Gen 2 ports, and more
