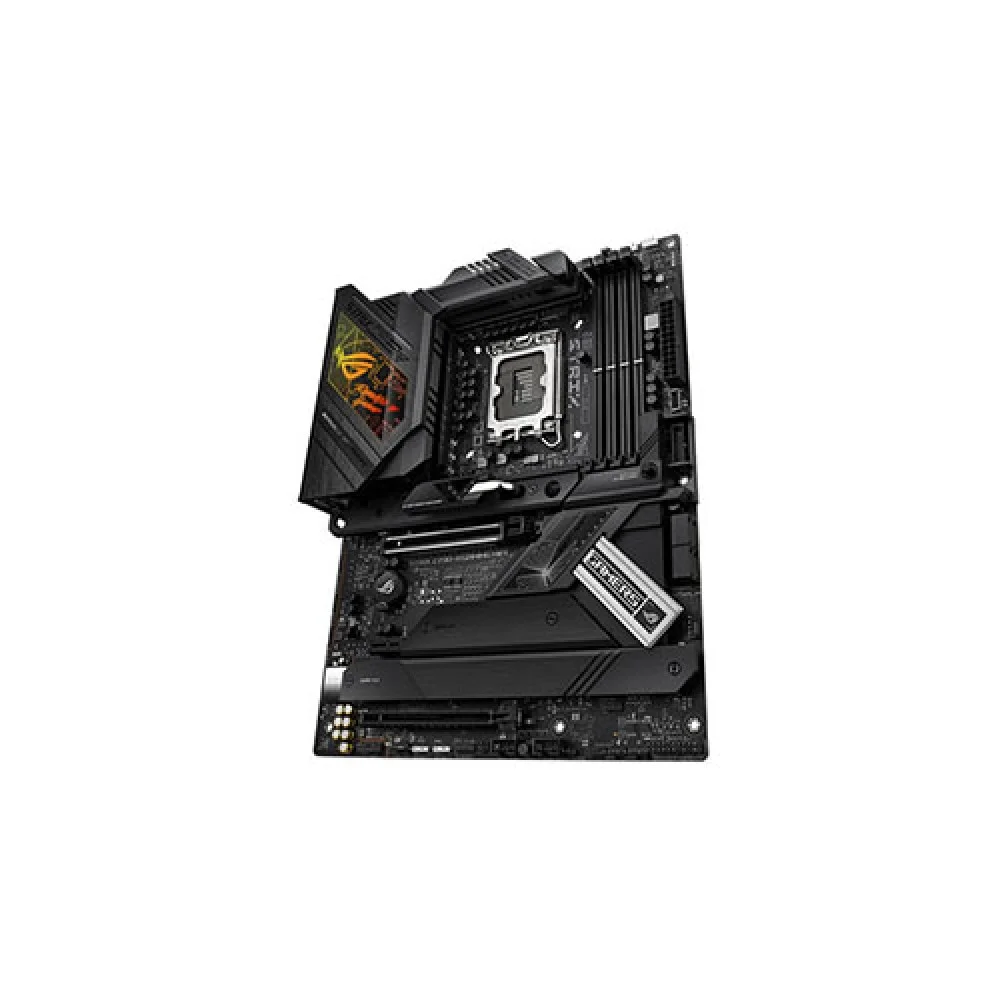

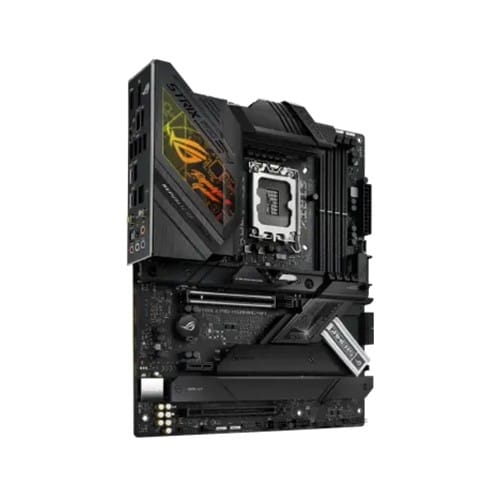

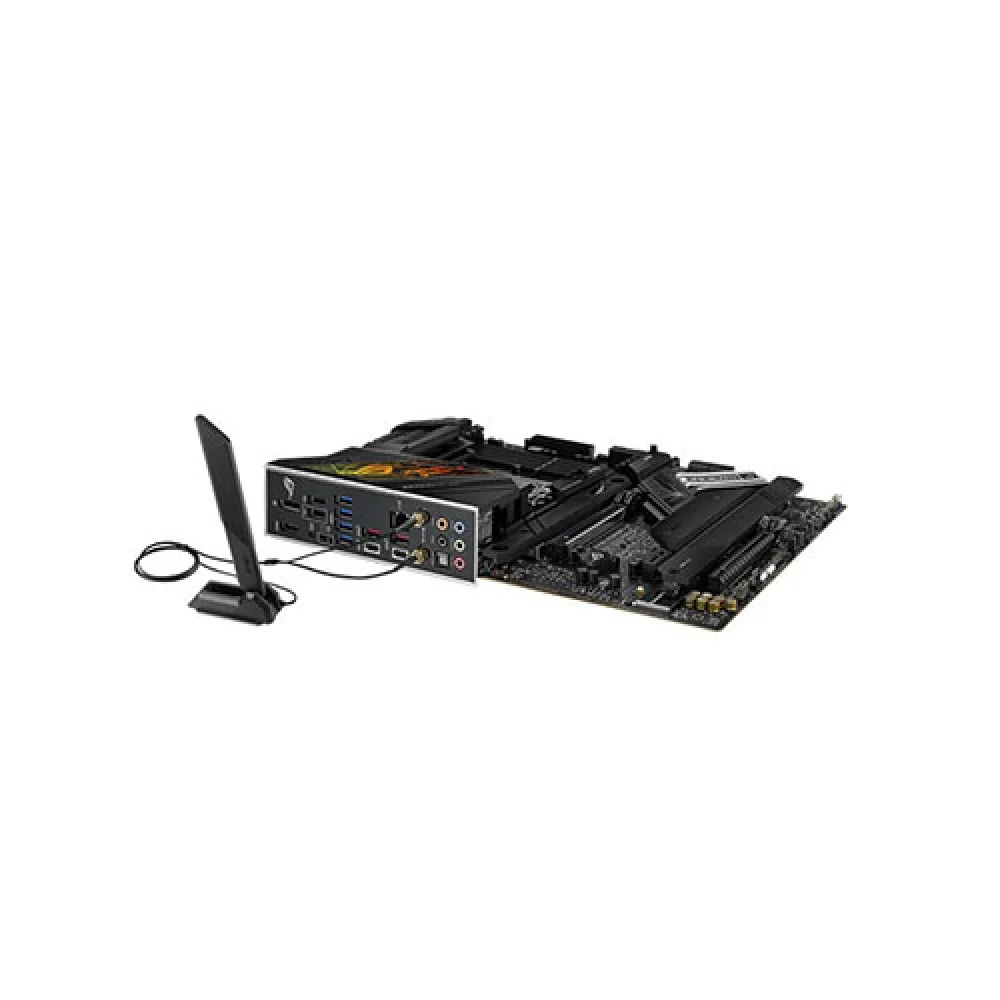

ASUS ROG STRIX Z790-H GAMING WIFI DDR5 12TH & 13TH GEN ATX MOTHERBOARD
ASUS ROG STRIX Z790-H GAMING WIFI DDR5 12TH & 13TH GEN ATX MOTHERBOARD - Image 2
ASUS ROG STRIX Z790-H GAMING WIFI DDR5 12TH & 13TH GEN ATX MOTHERBOARD - Image 3
ASUS ROG STRIX Z790-H GAMING WIFI DDR5 12TH & 13TH GEN ATX MOTHERBOARD - Image 4
ASUS ROG STRIX Z790-H GAMING WIFI DDR5 12TH & 13TH GEN ATX MOTHERBOARD
, ,

ASUS ROG STRIX Z790-H GAMING WIFI DDR5 12TH & 13TH GEN ATX MOTHERBOARD

ASUS
Add to wishlist
Compare
  • Socket: Intel Socket LGA1700
  • m.2 slots: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
  • USB: 10x Rear ports 7x Front ports
  • Memory: 4 x DIMM, Max. 128GB, DDR5



Short Description

  • Regular Price: 54,500৳
  • Special Price: 51,000৳
  • Availability: In Stock
  • Brand: ASUS
  • Product ID: 13544

51,000.00৳  54,500.00৳

Compare
Brand

ASUS
Model

ROG STRIX Z790-H
Color

Black
Warranty

03 years warranty
Supported CPU Intel Socket LGA1700 For 13th Gen Intel Core™ & 12th Gen Intel® Core, Pentium Gold And Celeron Processors
Supports Intel Turbo Boost Technology 2.0 And Intel Turbo Boost Max Technology 3.0
Chipset Intel Z790 Chipset
Memory 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800
Non-ECC, Un-Buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Supported Storage Total Supports 2 X M.2 Slots And 4 X SATA 6Gb/S Ports
Intel W480 Chipset:
1 X M.2 Socket 3, With M Key, Type 2242/2260/2280/22110 Storage Devices
Support (SATA & PCIE 3.0 X 4 Mode)*3
1 X M.2 Socket 3, With M Key, Type 2242/2260/2280/22110 Storage Devices
Support (SATA & PCIE 3.0 X 4 Mode)*4
6 X SATA 6Gb/S Port(S)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology Supports
Intel Optane Memory Ready
Graphics 1 X DisplayPort (Supports Max. 8K@60Hz As Specified In DisplayPort 1.4)
1 X HDMI Port (Supports 4K@60Hz As Specified In HDMI 2.1)
Slots 4 X DIMM
Internal I/O Ports Fan And Cooling Related

1 X 4-Pin CPU Fan Header
1 X 4-Pin CPU OPT Fan Header
1 X 4-Pin AIO Pump Header
5 X 4-Pin Chassis Fan Headers

Power Related
1 X 24-Pin Main Power Connector
2 X 8-Pin +12V Power Connectors

Storage Related
4 X M.2 Slots (Key M)
4 X SATA 6Gb/S Ports

USB

1 X USB 3.2 Gen 2×2 Connector (Supports USB Type-C)
1 X USB 3.2 Gen 1 Header Supports 2 Additional USB 3.2 Gen 1 Ports
2 X USB 2.0 Headers Support 4 Additional USB 2.0 Ports

Miscellaneous

3 X Addressable Gen 2 Headers
1 X Aura RGB Header
1 X CPU Over Voltage Jumper
1 X Front Panel Audio Header (AAFP)
1 X 20-3 Pin System Panel Header With Chassis Intrude Function
1 X Thermal Sensor Header
1 X Thunderbolt Header

Back Panel I/O Ports
1 X USB 3.2 Gen 2×2 Port (1 X USB Type-C)
3 X USB 3.2 Gen 2 Ports (2 X Type-A + 1 X USB Type-C)
4 X USB 3.2 Gen 1 Ports (4 X Type-A)

2 X USB 2.0 Ports (2 X Type-A)
1 X DisplayPort
1 X HDMI Port
1 X Wi-Fi Module
1 X Intel 2.5Gb Ethernet Port
5 X Gold-Plated Audio Jacks
1 X Optical S/PDIF Out Port
1 X BIOS FlashBack Button
1 X Clear CMOS Button
USB Rear USB (Total 10 Ports)

1 X USB 3.2 Gen 2×2 Port (1 X USB Type-C)
3 X USB 3.2 Gen 2 Ports (2 X Type-A + 1 X USB Type-C)
4 X USB 3.2 Gen 1 Ports (4 X Type-A)
2 X USB 2.0 Ports (2 X Type-A)

Front USB (Total 7 Ports)
1 X USB 3.2 Gen 2×2 Connector (Supports USB Type-C)
1 X USB 3.2 Gen 1 Header Supports 2 Additional USB 3.2 Gen 1 Ports
2 X USB 2.0 Headers Support 4 Additional USB 2.0 Ports
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 Inch X 9.6 Inch ( 30.5 Cm X 24.4 Cm )
Other Features ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
– Impedance Sense For Front And Rear Headphone Outputs
– Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking
– High Quality 120 DB SNR Stereo Playback Output And 113 DB SNR Recording Input
– Supports Up To 32-Bit/192 KHz Playback
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear Optical S/PDIF Out Port
– Premium Audio Capacitors
– Audio Cover

ASUS ROG STRIX Z790-H GAMING WIFI DDR5 12TH & 13TH GEN ATX MOTHERBOARD PRICE IN BD

The Asus ROG STRIX Z790-H GAMING WIFI DDR5 twelfth and thirteenth Gen ATX Motherboard is a first in class motherboard intended for gamers and devotees hoping to fabricate an elite presentation PC. It is furnished with an Intel LGA 1700 attachment, preparing it for use with thirteenth era Intel Center and twelfth age Intel Center, Pentium Gold, and Celeron processors. The motherboard highlights a strong power arrangement with 16 + 1 power stages evaluated for 80A, double ProCool II power connectors, excellent compound stifles, and sturdy capacitors, giving stable ability to help the most recent multicore processors. It additionally brags enhanced VRM thermals with gigantic intensity sinks associated by a L-formed heat pipe, high-conductivity warm cushions, and a coordinated I/O cover. With four PCIe 4.0 M.2 openings all with heatsinks, including the tallest having a combo sink expansion and backplate for extra cooling, the motherboard gives broad M.2 support. Moreover, it offers bountiful network with a USB 3.2 Gen 2×2 Sort C back I/O port and extra front board connector, seven USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4. The motherboard is outfitted with worked in WiFi 6E (802.11ax) and 2.5Gb Intel Ethernet with ASUS LANGuard for superior execution organizing. It likewise includes insightful control with ASUS-restrictive computer based intelligence overclocking, man-made intelligence II cooling, man-made intelligence systems administration, and bi-directional man-made intelligence clamor dropping to work on arrangement and further develop execution.
