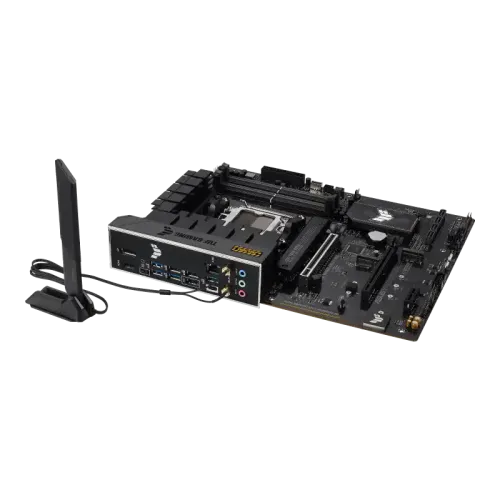

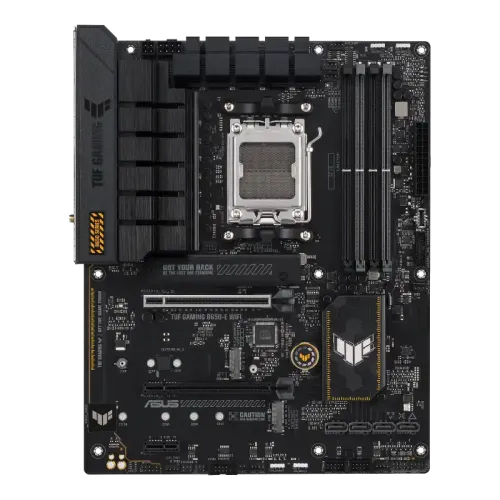

Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard
Brand | ASUS |
---|---|
Model | TUF GAMING B650-E WIFI |
Color | Black |
Warranty | 03 years warranty |
Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
Chipset | AMD B650 | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers Audio cover Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
|
PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD Ryzen 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x1 mode) 1 x PCIe 4.0/3.0 x1 slots |
|
M.2 Socket | Supports 3 x M.2 slots | |
Type | DDR5 | |
Slots | 4 DIMMs | |
Supported Memory | 8000+ OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II |
|
Maximum Memory | 192GB | |
Graphics | Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors’ or graphic cards’ resolution. |
|
HDMI | 1x HDMI | |
Display Port | 1 x DisplayPort | |
USB | Rear USB (Total 8 ports) 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C) 3 x USB 5Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports |
|
LAN Port | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
Wireless Communication module | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** WiFi 6E 6GHz regulatory may vary between countries. The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
|
Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
|
Audio | 5 x Audio jacks | |
Internal I/O Ports | Internal I/O Connectors

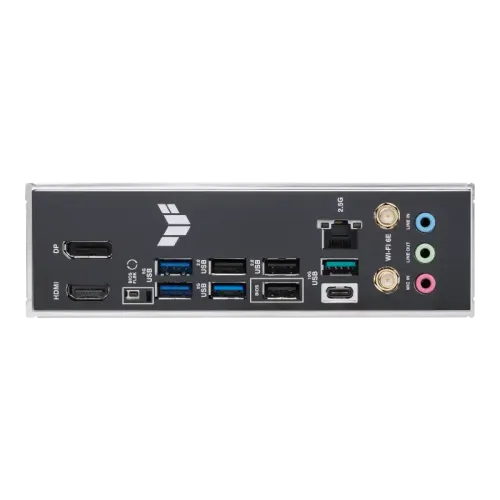

Fan and Cooling related Back Panel I/O Ports 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C) |
|
Special Features | ASUS TUF PROTECTION DIGI+ VRM (- Digital power design with DrMOS) Enhanced DRAM Overcurrent Protection ESD Guards TUF LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design M.2 Q-Latch Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED ProCool Pre-mounted I/O shield SafeDIMM Aura Sync Aura RGB header(s) Addressable Gen 2 header(s) |
|
Bundled Software | ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 4 Power Saving Two-Way AI Noise Cancellation AI Suite 3 TurboV EVO DIGI+ VRM PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
|
Description
Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard
The ASUS TUF GAMING B650-E WIFI motherboard is designed to deliver exceptional performance for gaming and advanced computing applications. Built for the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, this motherboard supports the AM5 socket, ensuring compatibility with cutting-edge CPU technology. With support for up to 192GB of DDR5 RAM across four slots, and speeds reaching over 8000MHz with overclocking (OC), this motherboard offers the memory performance needed for demanding tasks. One HDMI and one DisplayPort provide graphic output, allowing for versatile display options. Key features include 2.5Gb Ethernet for high-speed wired networking and Wi-Fi 6E for the latest wireless connectivity, ensuring fast and stable internet access whether you’re gaming or working. The TUF GAMING B650-E WIFI is constructed with military-grade components, ensuring durability and reliability even under extreme conditions. A comprehensive cooling system is integrated into the design to maintain optimal temperatures during prolonged use. The motherboard also passes rigorous endurance testing, which guarantees that it can withstand challenging environments where other motherboards might fail. The rugged off-black aesthetic with geometric design elements highlights the toughness and reliability that define the TUF GAMING series. This motherboard provides the power, connectivity, and stability required for advanced AI PC applications, making it an ideal choice for gamers and power users alike.
