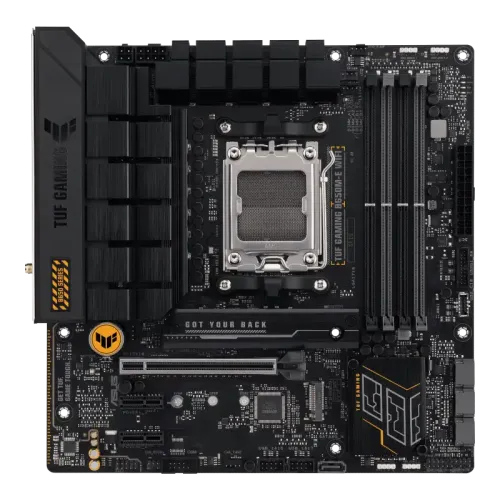

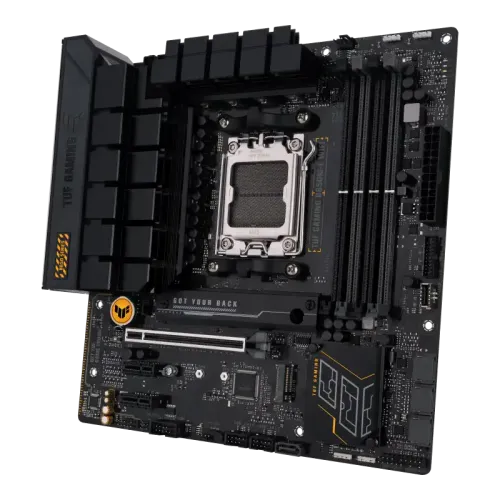

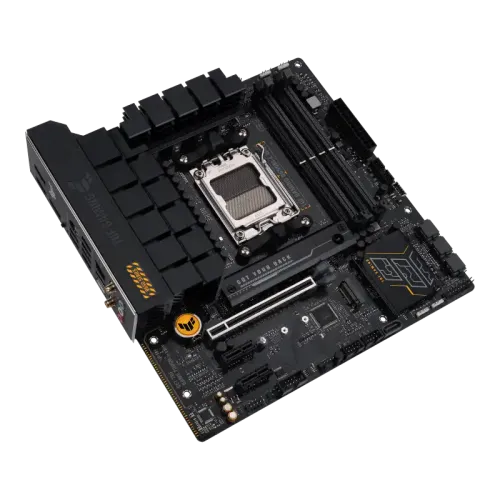

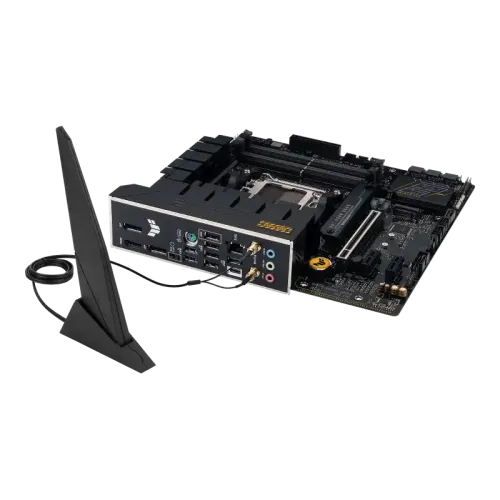

Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard
Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard - Image 2
Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard - Image 3
Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard - Image 4
Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard - Image 5
Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard - Image 6
Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard
, ,

Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard

ASUS
Availability:

In stock
Add to wishlist
Compare
  • Model: TUF GAMING B650M-E WIFI
  • Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 192GB, 7600+(OC)
  • Graphics Output: 1x HDMI, 2x Display Port
  • Features: Wi-Fi 6, Realtek 2.5Gb Ethernet

Short Description

  • Regular Price: 33,800৳
  • Special Price: 31,100৳
  • Availability:In Stock
  • Brand: ASUS
  • Product ID: 16498

31,100.00৳  33,800.00৳

In stock

Compare

Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard

Brand

ASUS
Model

TUF GAMING B650M-E WIFI
Color

Black
Warranty

03 years warranty
Supported CPU AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset AMD B650
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback”
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
PCI AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot
AMD B650 Chipset
2 x PCIe 4.0 x1 slots
Type DDR5
Slots 4 DIMMs
Supported Memory DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
Maximum Memory 192GB
Graphics 2 x DisplayPort
1 x HDMITM port
HDMI 1x HDMI
Display Port  2x DisplayPort
USB  Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port  1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless Communication module Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
Special Features ASUS TUF PROTECTION
DIGI+ VRM (- Digital power design with DrMOS)
ESD Guards
TUF LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
ProCool
Pre-mounted I/O shield
SafeSlot Core+
SafeDIMM
Aura Sync
Aura RGB header
Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 2+
Power Saving
Two-Way AI Noise Cancelation
AI Suite 3
TurboV EVO
DIGI+ VRM
PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers(60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

Description

Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard

The ASUS TUF GAMING B650M-E WIFI motherboard is compatible with the latest AMD Ryzen 8000 & 7000-series processors. This motherboard is built with military-grade components, an upgraded power solution, and an extensive cooling system, ensuring rock-solid and stable performance during marathon gaming sessions. It’s not just about performance; this motherboard undergoes rigorous endurance testing to ensure it can withstand challenging conditions. Asus TUF GAMING B650M-E WIFI Motherboard features 8+2 power stages, PCIe 5.0 for M.2 storage, DDR5 memory module support, USB 3.2 Gen 2 Type-C, 2.5 Gb Ethernet, and WiFi 6, it covers all the bases for modern gaming and computing needs. This motherboard also offers intelligent control, allowing you to fine-tune and optimize various aspects of your system, including CPU performance, power savings, and more. The UEFI BIOS provides easy configuration options for both beginners and experienced users. It even features advanced tuning capabilities for serious tweakers. The TUF GAMING B650M-E WIFI motherboard has an enlarged VRM heatsink, optimized M.2 heatsink design, and comprehensive fan controls. Asus TUF GAMING B650M-E WIFI Motherboard comes with ESD Guards, TUF LANGuard, and a stainless steel back I/O panel. It also offers convenient features like M.2 Q-Latch, which simplifies M.2 SSD installation, and Q-LED troubleshooting lights. The motherboard offers ultrafast networking, AI noise cancellation, and high-quality audio with DTS Audio Processing. Its RGB lighting can be customized through Aura Sync, creating a personalized gaming atmosphere.
