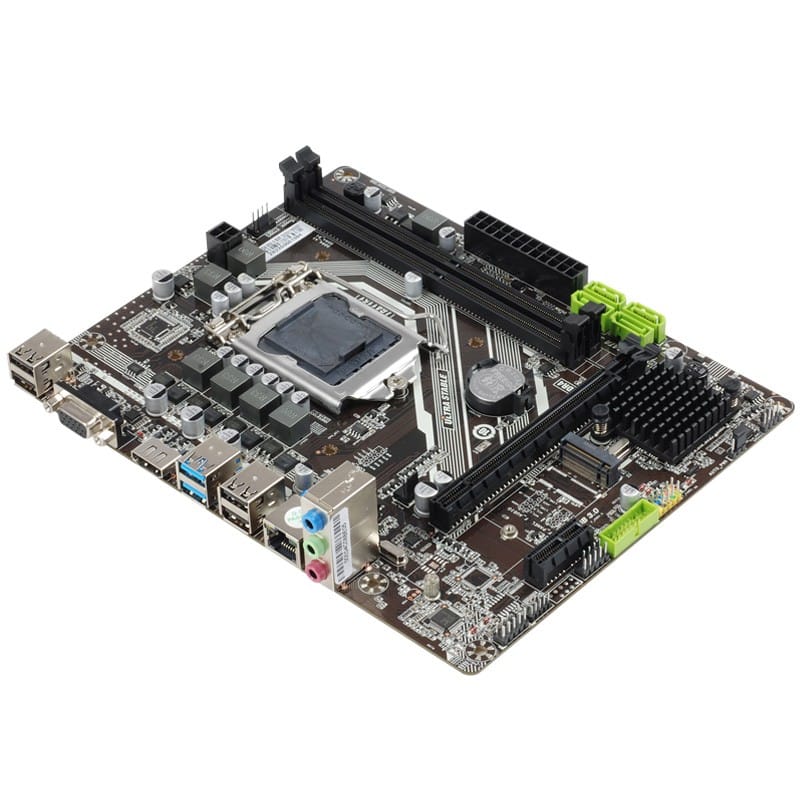

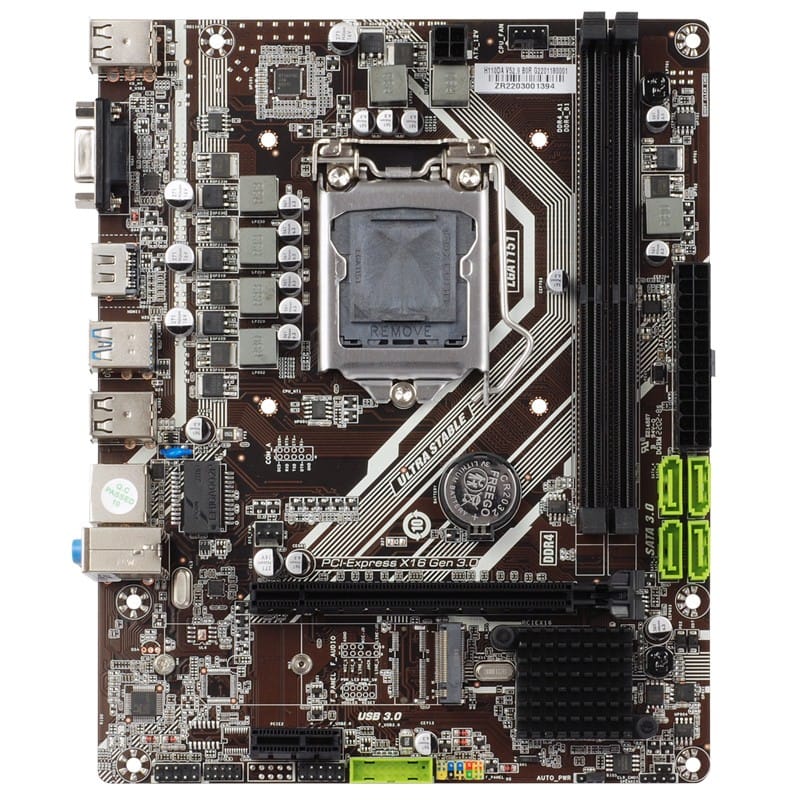

Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard
Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard
Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard
Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard
Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard
Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard
Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard
Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard
, ,

Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard

Esonic
Availability:

In stock
Add to wishlist
Compare
  • Model: Esonic H110DA1
  • Intel Socket LGA1151 for 6/7/8/9th Gen
  • Memory Support DDR4 2133/2400/2666MHz
  • Storage- 4X SATA3.0 6Gb/s
  • Core i7/ i5/i3/ Dual Core

Short Description

  • Regular Price: 5,250৳
  • Special Price: 4,390৳
  • Availability: In Stock
  • Brand: Esonic
  • Product ID: 12316

4,390.00৳  5,250.00৳

In stock

Compare

Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard

Brand

Esonic
Model

H110DA1
Processor

Support Intel® Socket 1151 for 6th/7th/8th/9th Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
Chipset

Intel® H110 Chipset
Memory Support

2 * DDR-4 2133/2400/2666MHz DIMM ,Max. 64GB
Dual channel memory architecture
Graphic

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HD / VGA ports
Slots

1 x PCIe x16 3.0/2.0 slot
1 x PCIe x16 2.0 slot
Storage

1 x M.2 Socket, Supports 2260/2280 SSD
4 x SATA 6Gb/s Ports
LAN

Realtek Chip, 1 x 100M（Optional 1000M）
Audio

Realtek Chip, ALC 6-channel audio
USB

4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board)
6 * USB 2.0 port (2 at back panel, black, 2 at mid-board)

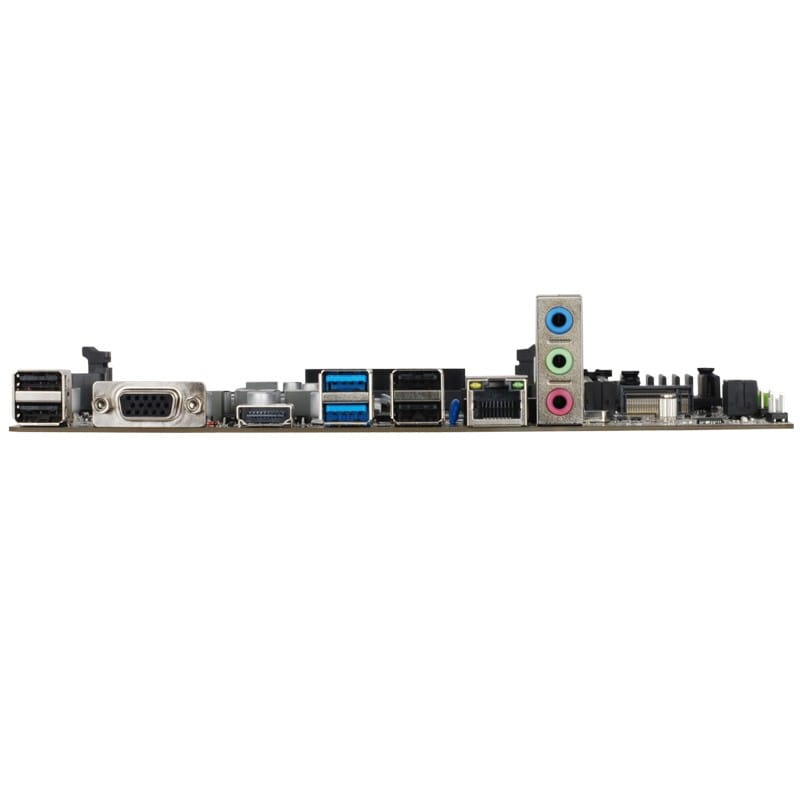

Back Panel I/O

1 x VGA Port
1 x HDMI Port
1 x LAN (RJ45) Port
2 x USB 3.1 Gen 1 Ports(Blue)
4 x USB 2.0 Ports
3 x flexible audio jacks
Internal I/O

1 x USB 3.1 Gen 1 connector（19pin)， supports 2*USB 3.1 Gen 1 ports
1 x USB 2.0 connector， supports 2*USB 2.0 ports
4 x SATA 6Gb/s Ports
2 x 4 -pin CPU_FAN/SYS_FAN connectors
1 x 24-pin ATX power connector
1 x 4-pin 12V ATX Power connectors
1 x F_Audio connector
1 x Internal Speaker connector
1 x F_Panel connector
Dimension

215 x 170mm
Color

Black
Warranty

01 year warranty

Description

Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard

Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Nvme Motherboard” are not available in my database. However, based on the name, we can infer some information:

  1. Chipset: The motherboard uses the H110 chipset. This chipset was released as part of Intel’s Skylake line of processors.
  2. RAM Compatibility: It supports DDR4 memory.
  3. Supported Generations: It’s mentioned to support Intel’s 6th, 7th, 8th, and 9th generation CPUs.
  4. NVMe Support: The motherboard supports NVMe, which suggests that it has M.2 slots that can accept NVMe SSDs.

For more detailed information, you might want to consult the manufacturer’s official website or product listing. Esonic is not one of the mainstream motherboard manufacturers like ASUS, MSI, or Gigabyte, so you might need to look harder or approach specialized forums and communities to get detailed reviews or user feedback.
