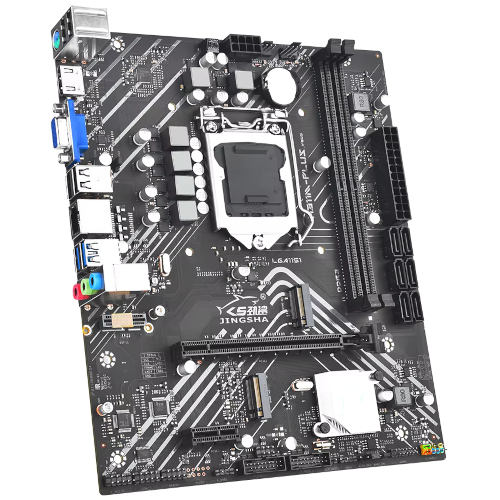

JINGSHA H311M-K DDR4 Intel 6th/7th/8th/9th Gen Gaming Motherboard

The JINGSHA H311M-K is a budget-oriented micro-ATX motherboard designed for Intel’s 6th, 7th, 8th, and 9th Generation processors (LGA 1151 socket). Below are its key features and specifications:

Key Specifications:

• Chipset: Intel H310 (Note: Some listings may incorrectly label it as H311, but H310 is the correct chipset for this board.)
• Socket: LGA 1151 (Supports 6th/7th/8th/9th Gen Intel CPUs)
• Memory:
  • 2 x DDR4 DIMM slots (Dual-channel)
  • Supports up to 32GB (16GB per slot)
  • DDR4 2133/2400 MHz (Non-ECC, Unbuffered)
• Expansion Slots:
  • 1 x PCIe 3.0 x16 (for GPU)
  • 1 x PCIe 2.0 x1 (for additional cards)
• Storage:
  • 4 x SATA III (6Gbps) ports
  • 1 x M.2 slot (PCIe 2.0 x2 / SATA support, varies by model)
• USB & Connectivity:
  • 4 x USB 3.0 (2 rear + 2 front via header)
  • 6 x USB 2.0 (2 rear + 4 via headers)
  • 1 x PS/2 port (for legacy keyboard/mouse)
  • 1 x Gigabit Ethernet (Realtek RTL8111H)
  • 3 x Audio jacks (Realtek ALC887 audio codec)
• Video Outputs:
  • 1 x HDMI
  • 1 x VGA (D-Sub)
    (Supports integrated graphics from Intel CPUs)
• Form Factor: Micro-ATX (24.4 cm x 21.5 cm)

Compatibility:

• 6th Gen (Skylake): Core i7/i5/i3/Pentium/Celeron
• 7th Gen (Kaby Lake): Core i7/i5/i3/Pentium/Celeron
• 8th Gen (Coffee Lake): Core i7/i5/i3/Pentium Gold/Celeron
• 9th Gen (Coffee Lake Refresh): Core i9/i7/i5/i3/Pentium Gold
  (May require BIOS update for 8th/9th Gen CPUs)

Target Use Case:

• Budget gaming builds (paired with a mid-range GPU like GTX 1650 or RX 6400)
• Office/Home PCs
• Basic workstation setups

Limitations:

• No USB Type-C or USB 3.1 Gen2
• No PCIe 3.0 x4 M.2 (slower SSD speeds)
• Basic VRMs (not ideal for overclocking)
• Limited rear I/O ports

Conclusion:

The JINGSHA H311M-K is an entry-level motherboard best suited for budget builds using Intel 8th/9th Gen CPUs (like the i3-9100F or i5-9400F). It lacks premium features but provides essential connectivity for gaming and general use.

If you’re looking for better performance, consider motherboards with the B365 or H370 chipset for improved I/O and M.2 support.
