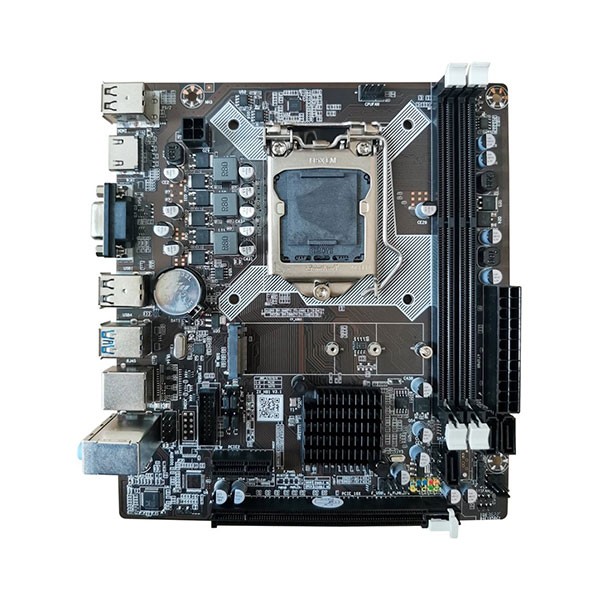

ARKTEK AK-H81M EL 4th Gen Micro-ATX Motherboard
Short Description
- Model: AK-H81M EL
- Supported CPU: Intel Core i7/i5/i3/Pentium/ Celeron for LGA1150
- Supported RAM: 2x DIMM, DDR3 1066/1333/1600MHz
- Graphics Output: 1 x HDMI, 1 x VGA Port
- Features: Realtek RTL8105E/8111E Gigabit 100/1000 Mbps
- Brand: ARKTEK
- Product ID: 17115
Title
Title
Specification
| Basic Information | |
| Brand | ARKTEK |
| Model | AK-H81M EL |
| Product Type | Micro-ATX Motherboard |
| Chipset | Intel H81 Express |
| Part Number | AK-H81M EL |
| CPU Socket | LGA1150 |
| BIOS | UEFI BIOS |
| Form Factor | Micro-ATX |
| PCB Size | 190 × 170 mm |
| Processor Support | |
| Supported Processor | Intel Core i7 / i5 / i3 / Pentium / Celeron |
| CPU Generation | Intel 4th Generation (Haswell) |
| Memory | |
| Memory Type | DDR3 |
| Memory Slots | 2 × DDR3 DIMM |
| Maximum Memory | 16GB (8GB ×2) |
| Memory Speed | DDR3 1066 / 1333 / 1600MHz |
| Memory Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| Graphics | |
| Graphics Support | Integrated Intel HD Graphics |
| HDMI | 1 × HDMI |
| VGA | 1 × VGA (D-Sub) |
| Expansion Slots | |
| PCI Express x16 | 1 × PCIe x16 |
| Storage | |
| M.2 Slot | 1 × M.2 (NVMe + NGFF) |
| SATA Ports | 3 × SATA III |
| Network | |
| LAN Controller | Realtek RTL8105E / RTL8111E |
| LAN Speed | 10/100/1000 Mbps Gigabit Ethernet |
| Audio | |
| Audio Codec | Realtek ALC662 HD Audio |
| Audio Channel | 6-Channel HD Audio |

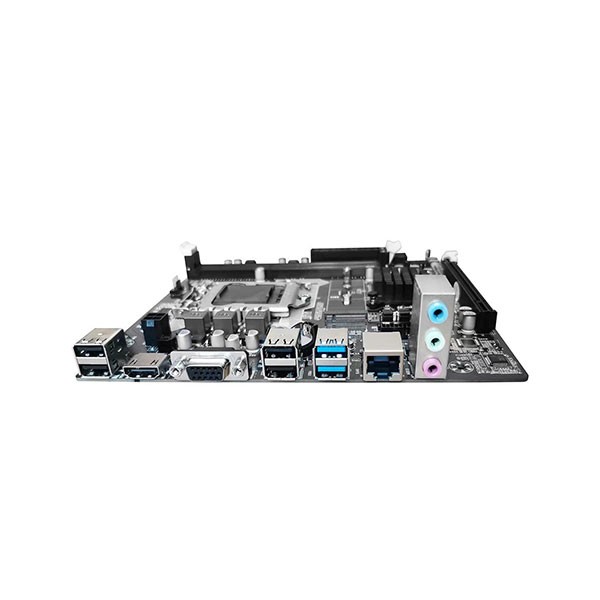

| Rear I/O Ports | |
| PS/2 Ports | Keyboard & Mouse |
| HDMI | 1 |
| VGA | 1 |
| USB 3.0 | 2 |
| USB 2.0 | 4 |
| RJ-45 LAN | 1 |
| Audio Jacks | 3 |
| Internal Connectors | |
| USB 2.0 Header | 1 |
| Front Audio Header | 1 |
| CPU Fan Header | 1 |
| 24-pin ATX Power | 1 |
| 4-pin CPU Power | 1 |
| Operating System | |
| Supported OS | Windows 7 / 8 / 10 (64-bit) |
| Package Contents | |
| Accessories | Motherboard, SATA Cable, I/O Shield, Driver CD, User Manual |
| Warranty | |
| Warranty | 3 Years Official Warranty |
