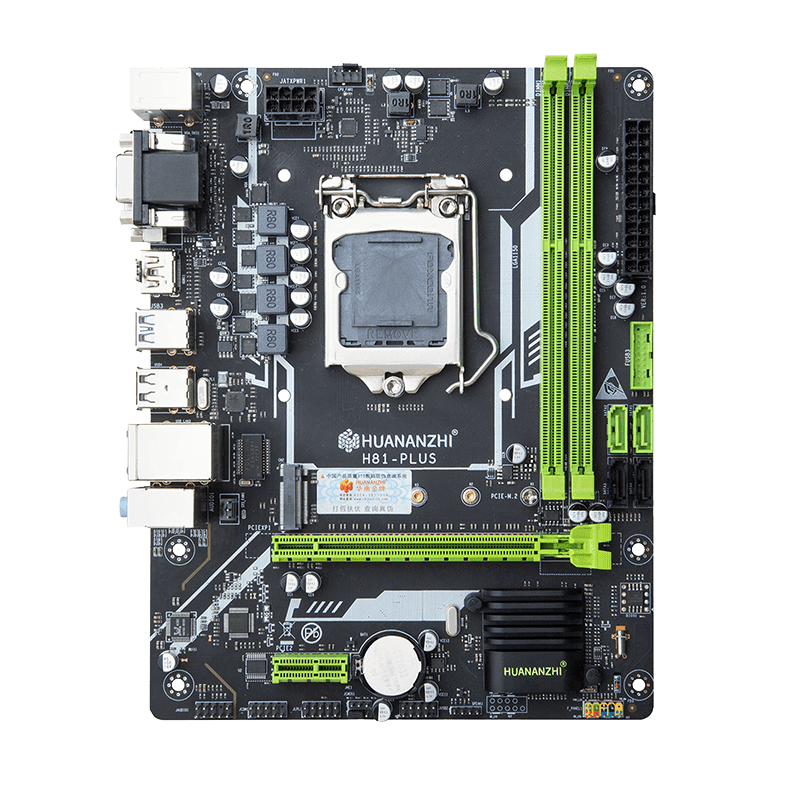

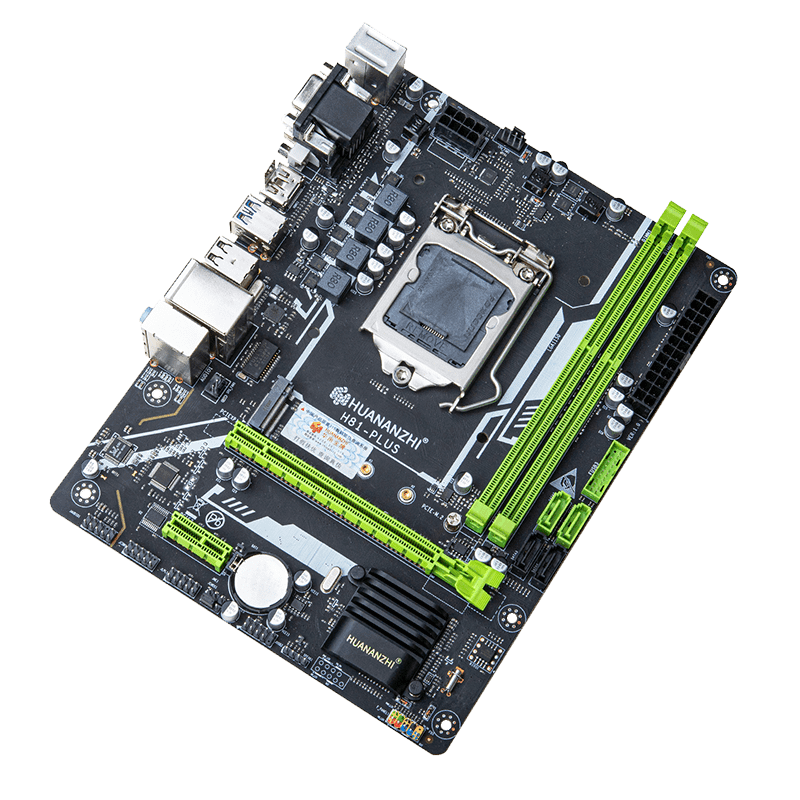

HUANANZHI H81 PLUS DDR-3 4th Gen NVME Support Mainboard
| Brand | HUANANZHI |
|---|---|
| Model | H81 PLUS |
| Color | Black |
| Warranty | 03 Years Replacement Warranty |
| Main chipset | Intel H81 |
| CPU Socket | Support Intel LGA1150 |
| Memory slot | 2 x DDR3 memory slot |
| Memory Standard | Support Dual channel DDR3 1600/1333MHz Memory，Max support 16GB |
| Storage interface | 2 x SATA3.0 6Gbps，2 x SATA2.0 3Gbps |
| Expansion Slots | 1x PCI Express3.0x16，1x PCI Express2.0x1 |
| Expansion interface | 1x M.2 2280 PCIEX4 2.0 20Gbps |
| Sound Track | 5.1 sound card |
| Network Card | Gigabit Ethernet |
| Power interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，1xSYS_FAN PIN |
| Power Supply | 4-phase power supply |
| PCB layers | 4-layer PCB |
| Dimension | 220*170MM M-ATX |

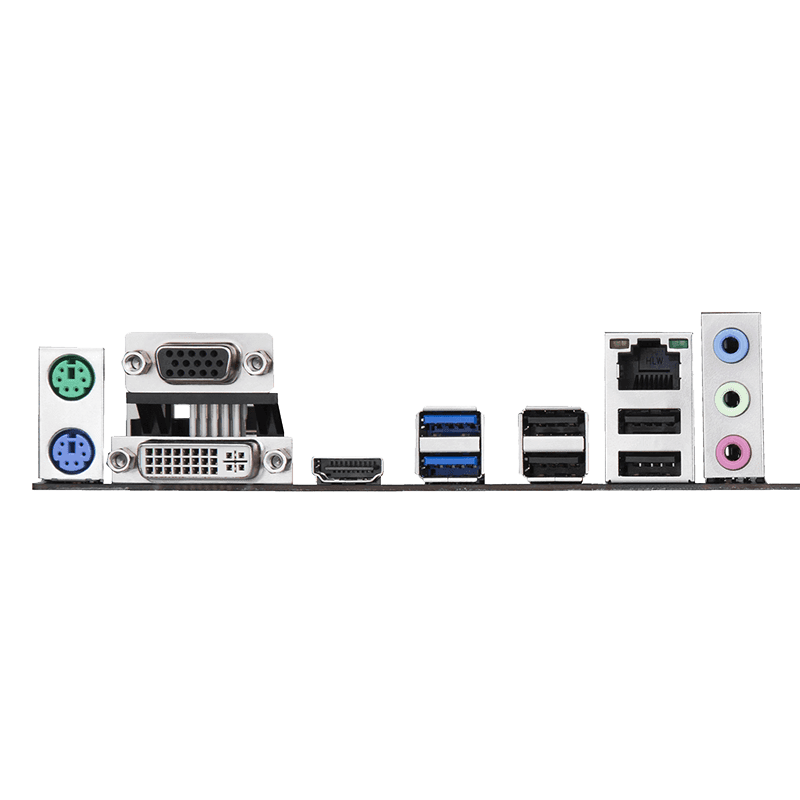

| Rear panel interface | 1xPS/2 Mouse and Keyboard port，4xUSB2.0，2xUSB3.0，1xRJ45Network card interface，1×3-hole audio interface，1x VGA，1x HDMI，1xDVI |
| Front panel interface | 1 x USB2.0 PIN，1 x USB3.0 PIN（USB2.0 speed)，1 x Front audio pin，1xCOM PIN |
| Support system | Windows7 Windows10 Windows11 |
| BIOS | AMI UEFI BIOS |
| Packing list | 1 x Motherboard，1 x SATA data cable，1xWarranty card，1xI/O shield back plat |
