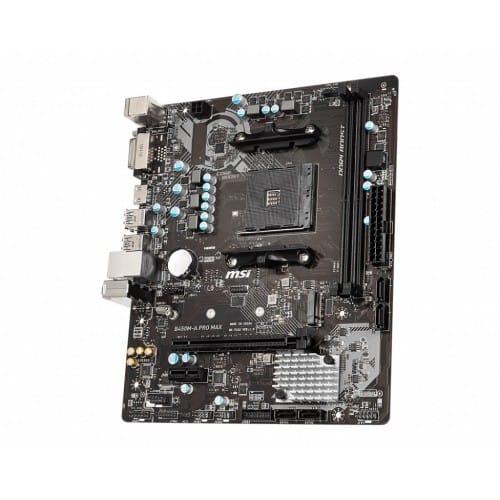

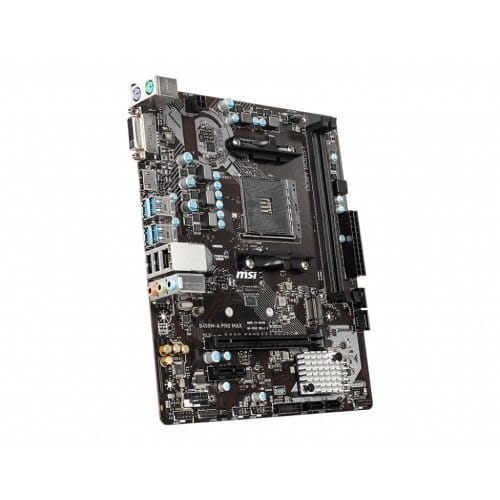

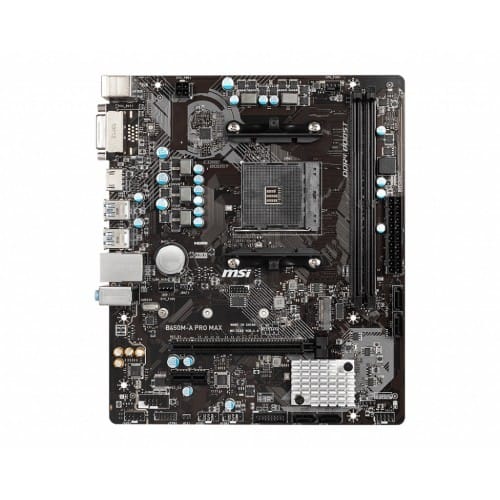

MSI B450M-A PRO MAX AMD AM4 Motherboard

MSI

  • Model: MSI B450M-A PRO MAX
  • Supports 1st, 2nd and 3rd Gen AMD Ryzen
  • AMD B450 Chipset AMD, Sockets A4
  • Turbo M.2 & Audio Boost Technology
  • X-Boost & Core Boost Technology

Short Description

  • Regular Price: 7,270৳
  • Special Price: 6,600৳
  • Availability:  In Stock
  • Brand: MSI
  • Product ID: 6672

6,600.00৳  7,270.00৳

MSI B450M-A PRO MAX AMD AM4 Motherboard

Brands

MSI

MSI

B450M-A PRO MAX

Color

Black

Warranty

03 years warranty

Supported CPU Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Chipset AMD B450 Chipset
Form Factor m-ATX
PCI 1 x PCIe 3.0 x16 slot (PCI_E1)
– Supports x16 speed with AMD Ryzen 1st and 2nd Generation processors
– Supports x8 speed with AMD Ryzen with Radeon Vega Graphics processors
– Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors
2 x PCIe 2.0 x1 slots
M.2 Socket 1 x M.2 slot (Key M)
– Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics) and SATA 6Gb/s
– Supports 2242/2260/2280 storage devices
Memory
Type DDR4
Slots 2
Supported Memory Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)
– For AMD Ryzen Gen3 (R5/R7/R9) :
– 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
– For AMD Other CPU
– 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Dual channel memory architecture
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory
Maximum Mamory 32GB
Graphics
Graphics 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz
Max Shared Memory 2048 MB
Connector & Ports
HDMI Yes
USB (s) 6 x USB 3.2 Gen1 + 6 x USB 2.0
LAN Port (s) Realtek 8111H Gigabit LAN
Supported Storage AMD B450 Chipset :
– 4 x SATA 6Gb/s ports
– Supports RAID 0, RAID1 and RAID 10
– 1x M.2 slot (Key M)
– Supports PCIe 3.0 x4 and SATA 6Gb/s
– 1st, 2nd and 3rd Gen AMD Ryzen
– Ryzen with Radeon Vega Graphics
– 2nd Gen AMD Ryzen with Radeon Graphics
– Supports PCIe 3.0 x2 and SATA 6Gb/s
– AMD Athlon with Radeon Vega Graphics
– A-series
– Athlon X4
– Supports 2242/ 2260/ 2280/ 22110 storage devices
Audio 8-Channel(7.1) HD Audio with Audio Boost
Internal I/O Ports 1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x Serial port connector
1x Clear CMOS jumper
DVI-D (s) Yes
