MSI PRO B760M-E DDR4 mATX Motherboard
MSI PRO B760M-E DDR4 mATX Motherboard - Image 2
MSI PRO B760M-E DDR4 mATX Motherboard - Image 3
MSI PRO B760M-E DDR4 mATX Motherboard
, ,

MSI PRO B760M-E DDR4 mATX Motherboard

MSI
Availability:

In stock
Add to wishlist
Compare
  • Model: PRO B760M-E DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 128GB 4800(OC)
  • Graphics Output: 1x HDMI, 1x VGA
  • Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN

Short Description

  • Regular Price: 14,200৳
  • Special Price: 12,850৳
  • Availability:  In Stock
  • Brand: MSI
  • Product ID: 15684

12,850.00৳  14,200.00৳

In stock

Compare

MSI PRO B760M-E DDR4 mATX Motherboard

Brand

MSI
Model

B760M-E DDR4
Color

Black
Warranty

03 years warranty
Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
Chipset INTEL B760
Form Factor mATX
200mmx236.16mm
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio
PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Type DDR4
Slots 2
Supported Memory 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 64GB
Graphics 1x HDMI
Support HDMI 1.4 with HDR, the maximum resolution of 4K 30Hz
1x VGA
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
HDMI 1x HDMI
VGA (s) 1x VGA
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
2x USB 2.0 ports
1x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Special Features 4x EZ Debug LED

Description

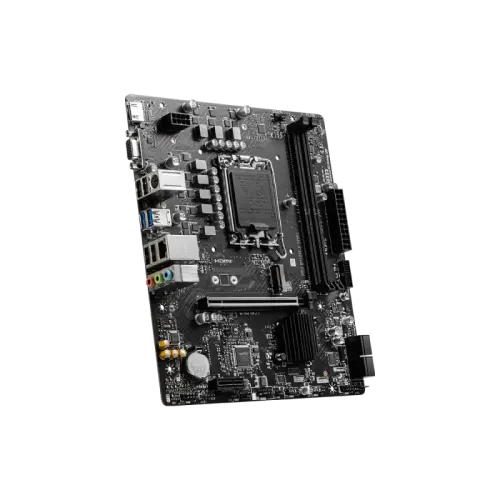

MSI PRO B760M-E DDR4 mATX Motherboard

The MSI PRO B760M-E is a micro-ATX motherboard with an LGA 1700 socket that supports 14th, 13th, and 12th-generation Intel Processors. For quicker performance, it supports DDR4 memory and has dual-channel DDR4 4800+MHz (OC) capabilities. Core Boost, a premium layout, and a digital power architecture enable the motherboard to accommodate more cores and give higher performance. Memory Boost, an innovative technology that produces pure data signals for the highest performance, stability, and compatibility, is also incorporated. The MSI PRO B760M-E has PCIe 4.0 and Lightning Gen4 x4 M.2 for a lightning-fast experience. This 14th Gen Motherboard enables faster data transmission rates and enhanced performance for gaming and other high-performance applications. The motherboard has AUDIO BOOST, which delivers studio-quality sound for the most immersive gaming experience. Steel Armor is also incorporated to prevent VGA cards from bending and EMI, resulting in improved performance, stability, and strength.
