| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon with Radeon Vega Graphics desktop processors Socket AM4 | |
| Chipset | AMD B450 | |
| Form Factor | mATX 200mmx236mm | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio | |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset) | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 | |
| Supported Memory | Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) Supports Dual-Channel mode Supports non-ECC, UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory | |
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 1.4, maximum resolution of 4K 24Hz 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 1920×1200 60Hz 1x DVI Support DVI-D, maximum resolution of 1920×1200 60Hz | |
| Connector & Ports | ||
| HDMI VGA | 1x HDMI 1 x VGA | |
| DVI-D (s) | 1x DVI | |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) | |
| LAN Port (s) | Realtek 8125 2.5Gbps LAN controller | |
| Supported Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |
Description

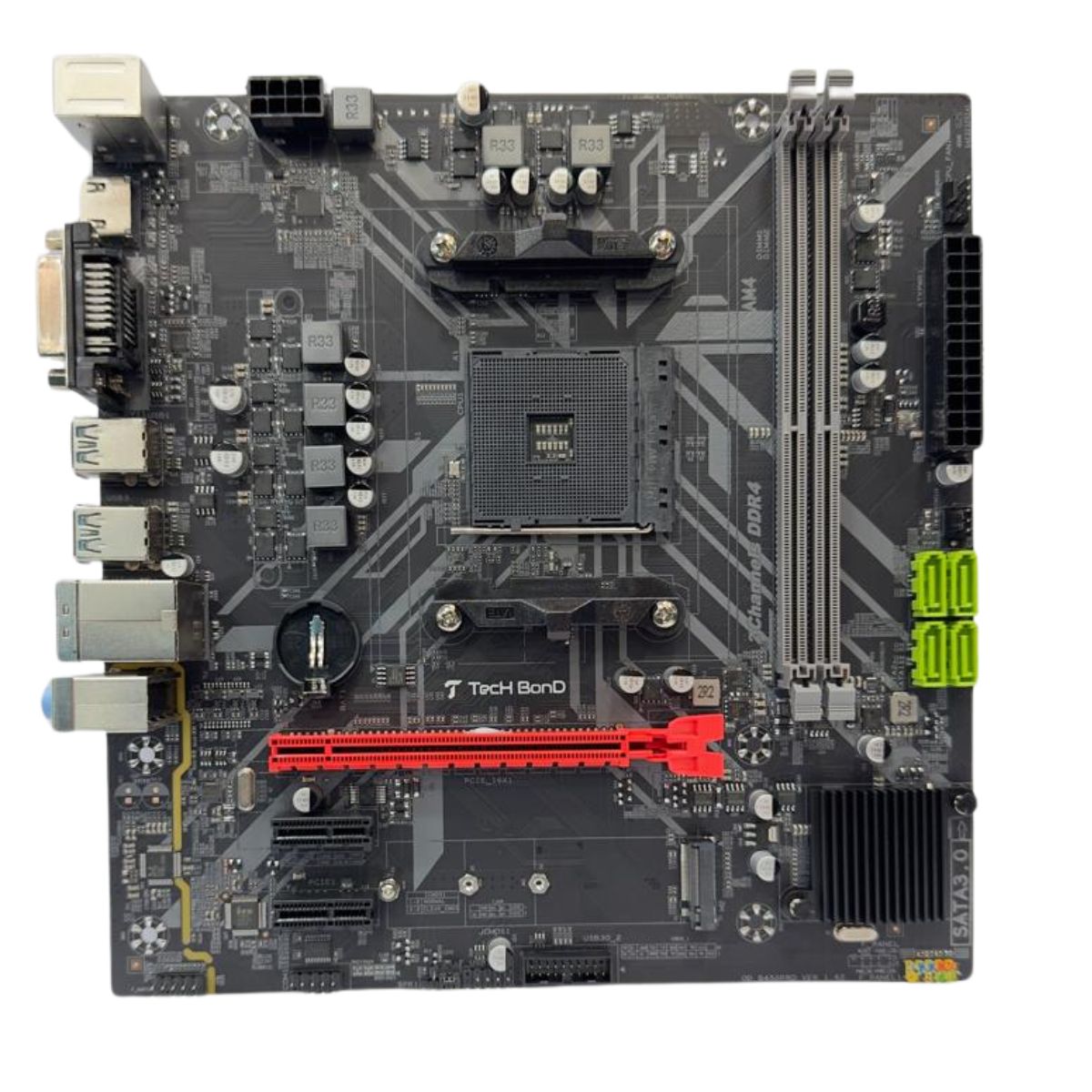

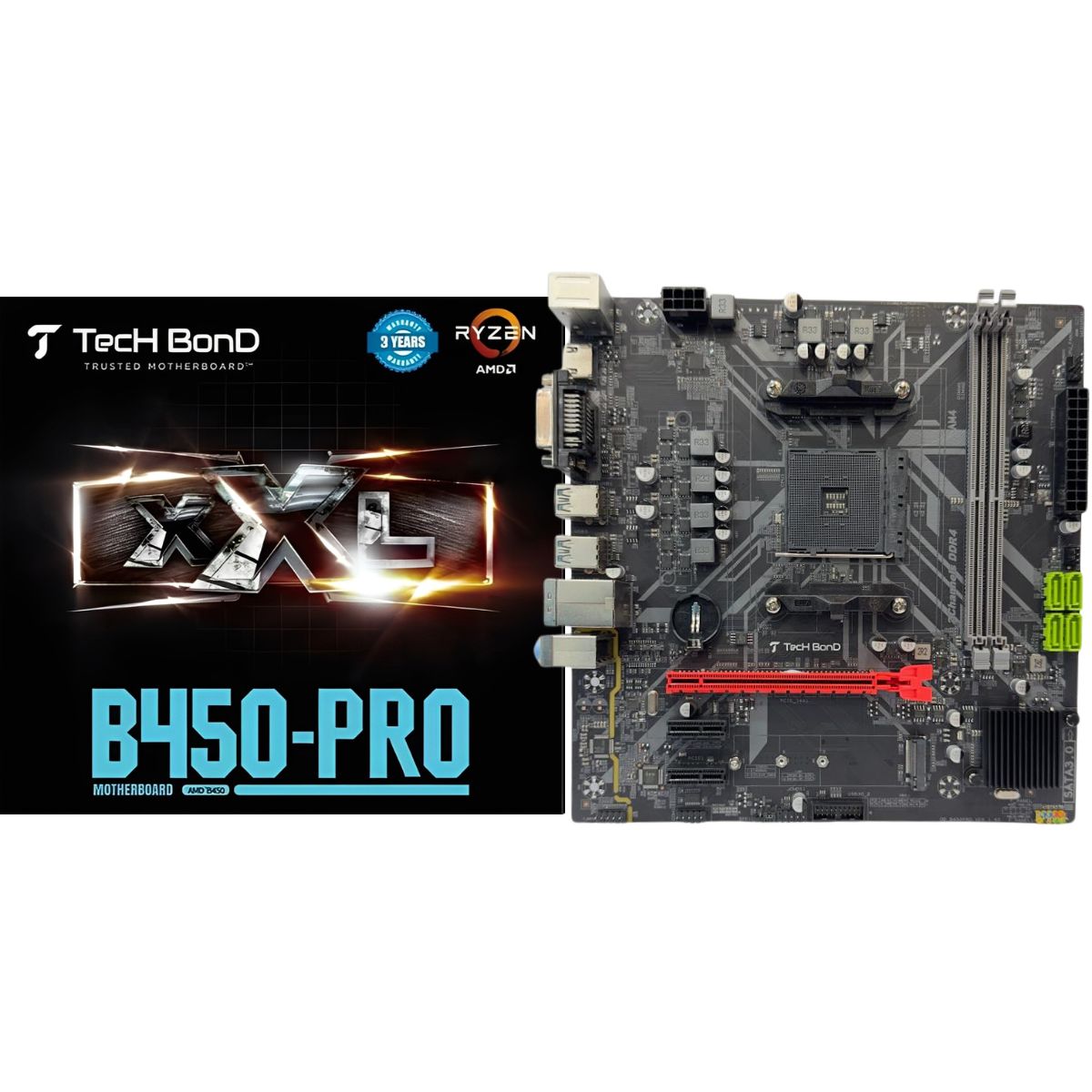

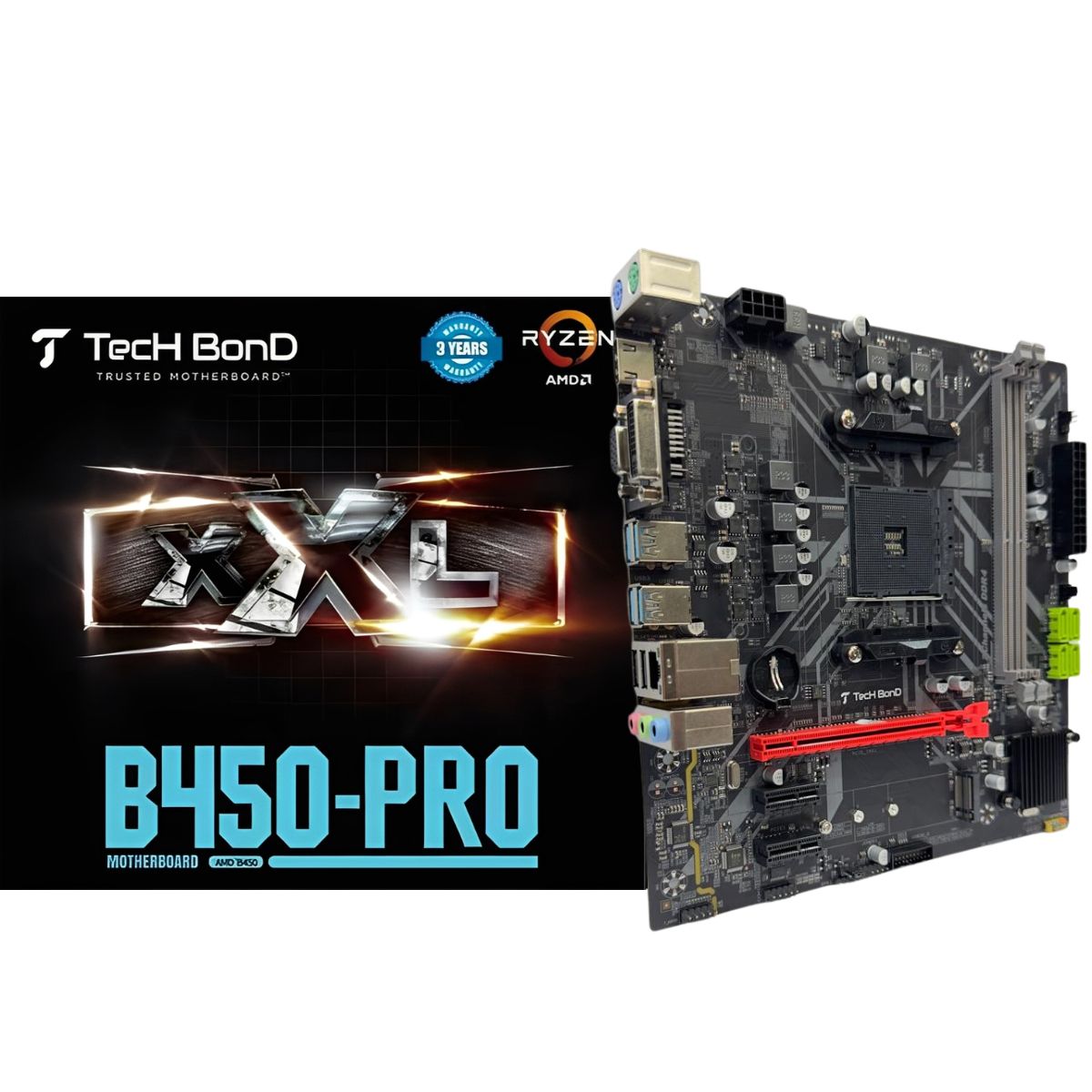

TecH BonD B450-PRO (Black) AM4 AMD Micro-ATX Motherboard
The TecH BonD B450-PRO (Black) AM4 AMD Micro-ATX Motherboard is designed to support a wide range of processors, from AMD Ryzen 5000 Series to Athlon with Radeon Vega Graphics desktop processors, it ensures versatility. With support for DDR4 Memory up to 4133 (OC) MHz, it delivers rapid and efficient performance. The Turbo M.2 feature, running at PCI-E Gen3 x4, maximizes the performance of NVMe based SSDs. Experience studio-grade sound quality with Audio Boost, while the 2.5G LAN provides an upgraded network solution for professional and multimedia use. X-Boost software detects and enhances the performance of storage and USB devices, adding convenience. With Core Boost, the motherboard features a premium layout and fully digital power design, ensuring support for more cores and improved performance. The TecH BonD B450-PRO (Black) AM4 AMD Micro-ATX Motherboard combines aesthetics, power, and functionality for a dynamic computing experience.
Buy TecH BonD B450-PRO (Black) AM4 AMD Micro-ATX Motherboard from Rose Tech
In Bangladesh, you can get original TecH BonD B450-PRO (Black) AM4 AMD Micro-ATX Motherboard From Rose Tech. We have a large collection of latest TecH BonD Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Rose Tech Shop to get yours at lowest price. The TecH BonD B450-PRO (Black) AM4 AMD Micro-ATX Motherboard comes with 3 years warranty.
There are no reviews yet.
