Tenda HG6 N300 300Mbps 2 Antenna Wi-Fi GPON ONT Router
| Brand | Tenda |
|---|---|
| Data Speed (Wi-Fi) | |
| Color | Black |
| Warranty | 01 year warranty |
| Data Rate | 300Mbps | |
| Antenna | 2 antenna | |
| Button | 1* Power On/Off Button 1*WPS Button 1*WLAN Button 1*RESET Button 1*LED Button | |
| Frequency | 2.4GHz | |
| Wireless | Yes | |
| Interface | 1*SC/APC GPON Port 1*1000Mbps RJ45 LAN Port 3*100Mbps RJ45 LAN Ports 1*USB Port 1*VoIP Port 1*DC Port | |
| Encryption | WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering | |
| Ports | GPON Port, 2 LAN Port, USB Port, VoIP Port, DC Port | |
| Power Source | ||
| Power Mode | Power Consumption: ≤12w External Power Supply: DC 12V /1.0A TX Power: 0.5~5dBm RX Power: -28~-8dBm | |
| Physical Dimension | ||
| Dimension | 163*115*28 mm (W * D * H) | |
| IEEE Standards | IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z |
| PON Standards | ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4 |
| Interfaces | 1*SC/APC GPON Port, 1*1000Mbps RJ45 LAN Port, 3*100Mbps RJ45 LAN Ports, 1*USB Port, 1*VoIP Port, 1*DC Port |
| LED Indicator | PWR, PON, LOS, LAN1, LAN2，LAN3, LAN4, TEL,WLAN, WPS, USB |
| Button | 1* Power On/Off Button, 1*WPS Button, 1*WLAN Button, 1 RESET Button ，1*LED Button |
| Optical Mode | Class B+ |
| Optical Wavelength | Transmit at 1310nm, Receive at 1490nm |
| Transmission Distance | 20km Max |
| Bandwidth | Upstream 1.25Gbps Max, Downstream 2.5Gbps Max |
| TX Power | 0.5~5dBm |
| RX Power | -28~-8dBm |
| External Power Supply | DC 12V /1.0A |
| Power Consumption | ≤12w |
| DHCP Server | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| WAN Connection | PPPoE , Dynamic IP, Static IP, Bridge |
| Business Type | TR069, Internet, IPTV, VoIP |
| Quality Of Service | Bandwidth Control |
| IP Version | IPv4, IPv6 |
| Services | DHCP, Dynamic DNS , IGMP Proxy UPnP, Samba |
| VPN Pass-through | PPTP, L2TP, IPsec Pass-through |
| Firewall | ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding， DMZ |
| IPv6 | Radvd, DHCPv6, MLD Proxy, MLD Snooping |
| Diagnostics | Ping, Ping6, Tracert, Tracert6 |
| TR069 | ACS, Connection request |
| VoIP | Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan , Codec, Hotline, DND, Alarm |
| Frequency | 2.4GHz，IEEE802.11 b/g/n |
| Bandwidth | 20M/40M |
| Channel Range | CH1-CH13 |
| Antenna | 2 * 6 dBi Antenna |
| Easy Client Setup | WPS Button, WPS LED |
| Speed | 11n 300M |
| Transmission Power | <20 dBm(EIRP) |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering |
| SSIDs | Main SSID 4 Guest SSIDs |
| Max Terminal Linked | 32 |
| Operation Temperature | 0°c ~ 45°c |
| Storage Temperature | -40°c ~ 70°c |
| Operating Humidity | 10% ~ 90% （Non-condensing） |
| Storage Humidity | 5% ~ 90% (Non-condensing) |
| Package Contents | 1*HG6,1* Power adapter, 1* Quick install guide, 1* RJ45 cable, 1* RJ11 cable |
| Certification | CE, FCC, RoHS, Anatel |
Description

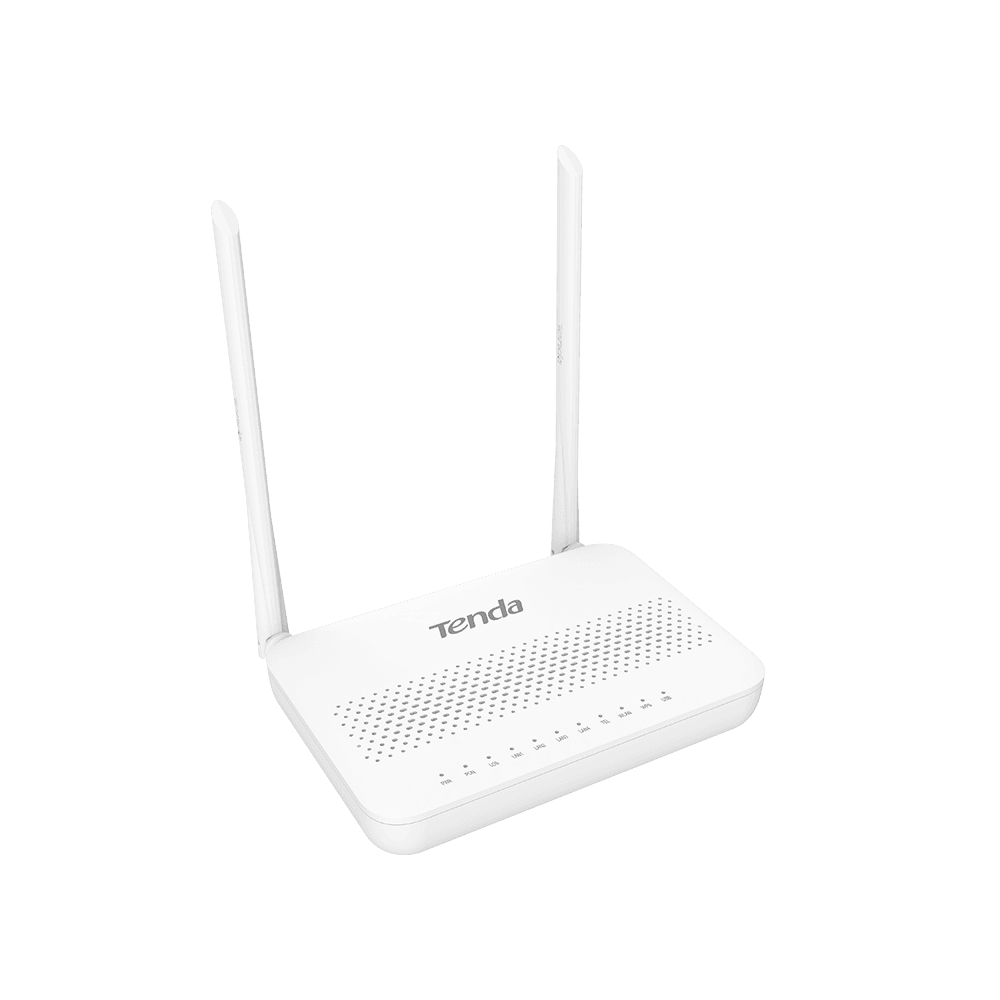

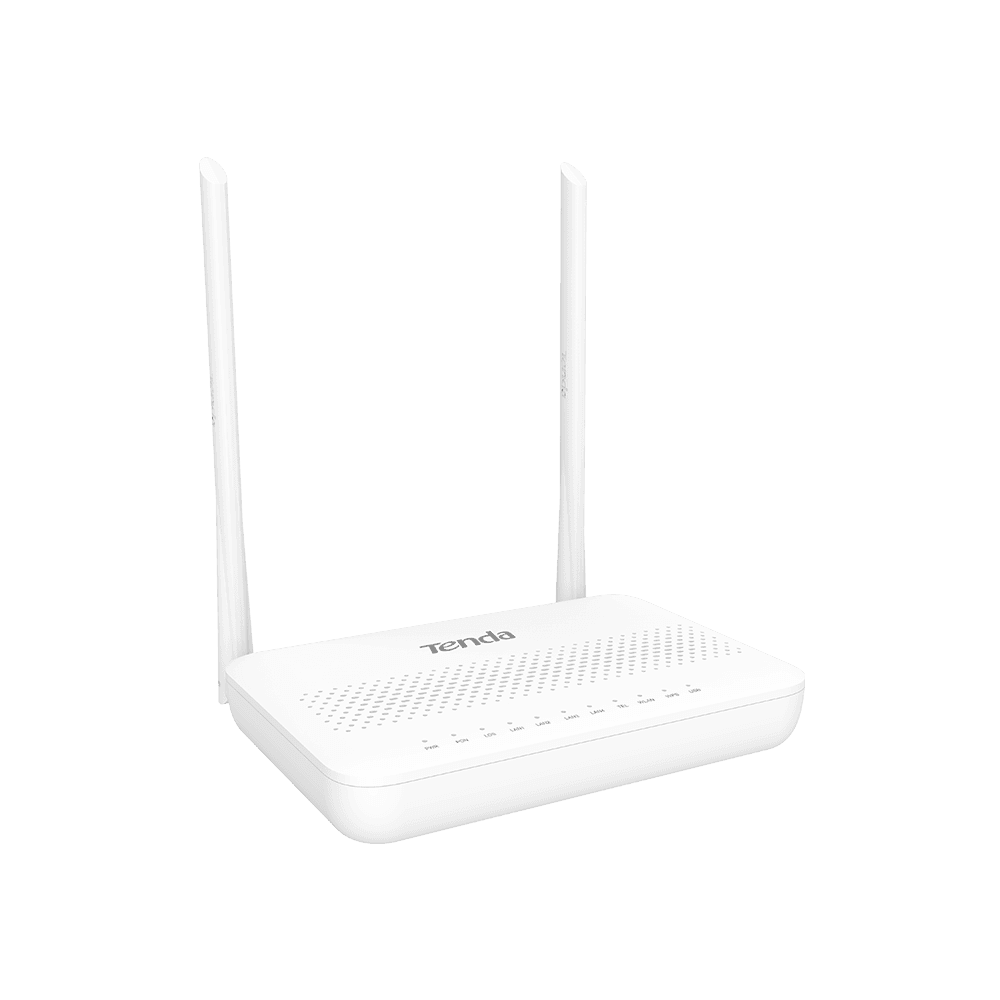

Tenda HG6 N300 2 Antenna Wi-Fi GPON ONT Router
HG6 is an intelligent routing passive optical network terminal in Tenda FTTH solution. HG6 provides 4 LAN ports(1*GE,3*FE), a voice port to meet users’ requirements for enjoying the Internet, HD IPTV and VoIP multi-service applications. HG6 complaints with 802.11n standard, supports up to 300Mbps Wi-Fi high speed linking. With 2 6dBi high gain external antennas and high power Wi-Fi, it can provide superior Wi-Fi coverage and high quality connection experience. It is widely compatible with the global mainstream OLT brand, supports plug-and-play, OMCI and TR069 remote maintenance features.
This router comes with 01 year warranty service.
N300 Wi-Fi GPON ONT
HG6
N300 Wi-Fi GPON ONT
Main Features
- • Ideal solution for FTTH solution
- • 2.4G Wi-Fi, 300Mbps wireless speed
- • 2* 6 dBi high gain antennas
- • 4 * LAN ports(1* GE , 3*FE)
- • VoIP/IPTV supported
- • High compatible to OLTs
- • OMCI / TR069 remote management
- • IPv6 supported
300Mbps high speed Wi-Fi connection
HG6 comes with the 11n Wi-Fi, with up to 300Mbps wireless speed over 2.4GHz band,it balances the signal field and gain, providing you with stronger Wi-Fi signals.
6dBi antenna and high RF power for better Wi-Fi coverage
2 clean-cut 6dBi antennas and high to 20dBm strong RF power,with leading accordion wireless design, HG6 balances the signal field and gain, ensures the good wireless performance for wide signal coverage.

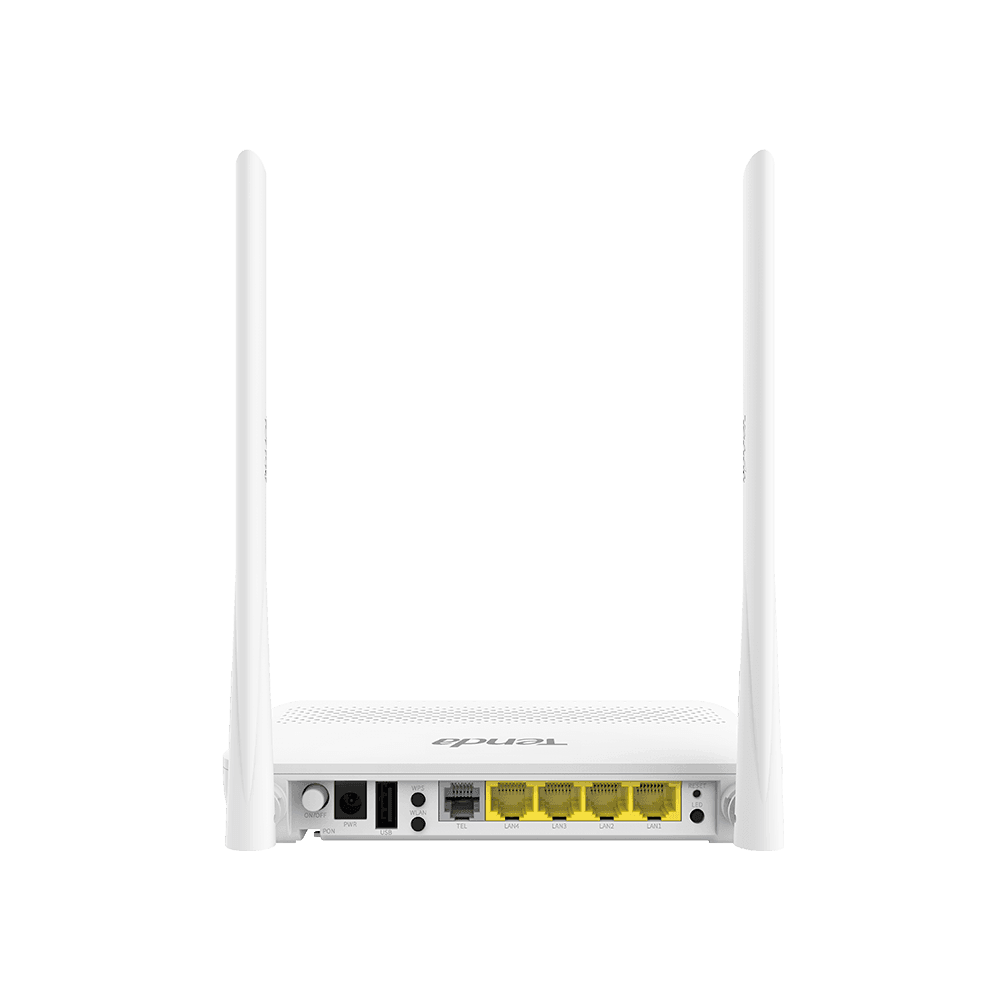

4 LAN ports for variety data services
With the 4 LAN ports, users can enjoy high-speed GPON services and bandwidth-intensive multimedia applications such as interactive gaming, IPTV,HD video streaming and NAS service much easier and faster than ever before.
Fiber optic disc design for good using
Fiber optic disc
- More reliable for fiber signal input
- More stable for long time product using
IPv6 for smoothly data transferring & low time delay
IPv6 support much more IP address volume , need not to do the data resolution , which decrease the transfer time delay between server and client , in order to provide a better experience to users.
Easier management and maintenance
HG6 can provide efficient operation and maintenance, such as remote business modification, remote upgrade, remote restart, remote fault diagnosis and so on, making the remote control easy and quick.
High compatible to worldwide OLTs
Compliant with ITU-T G.984 standard, HG6 has extensive compatibility with lots of OLT brands worldwide ,like Huawei, ZTE, Fiberhome, Nokia SBell and so on.
