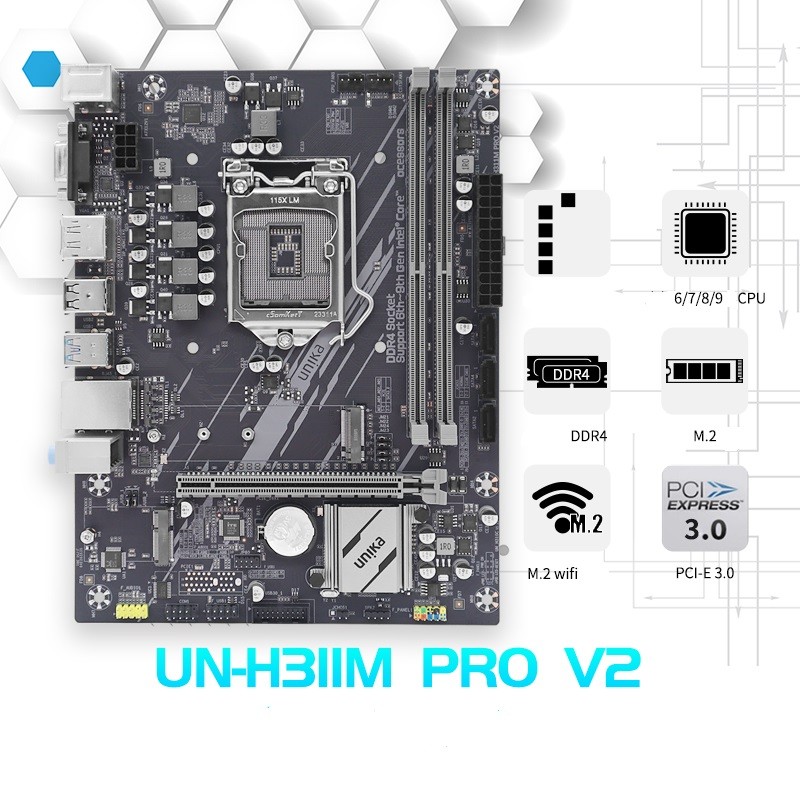

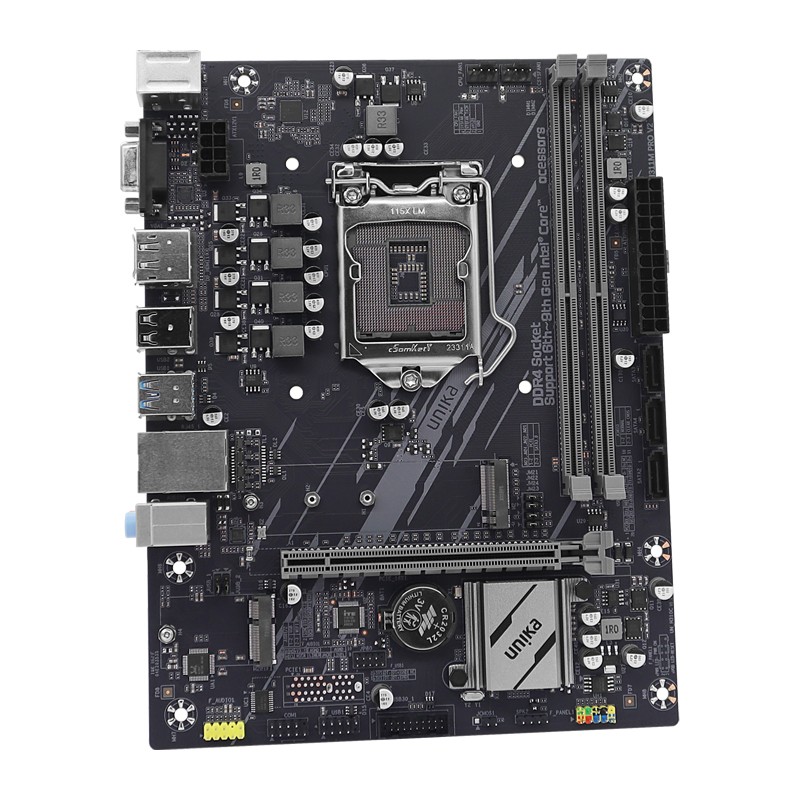

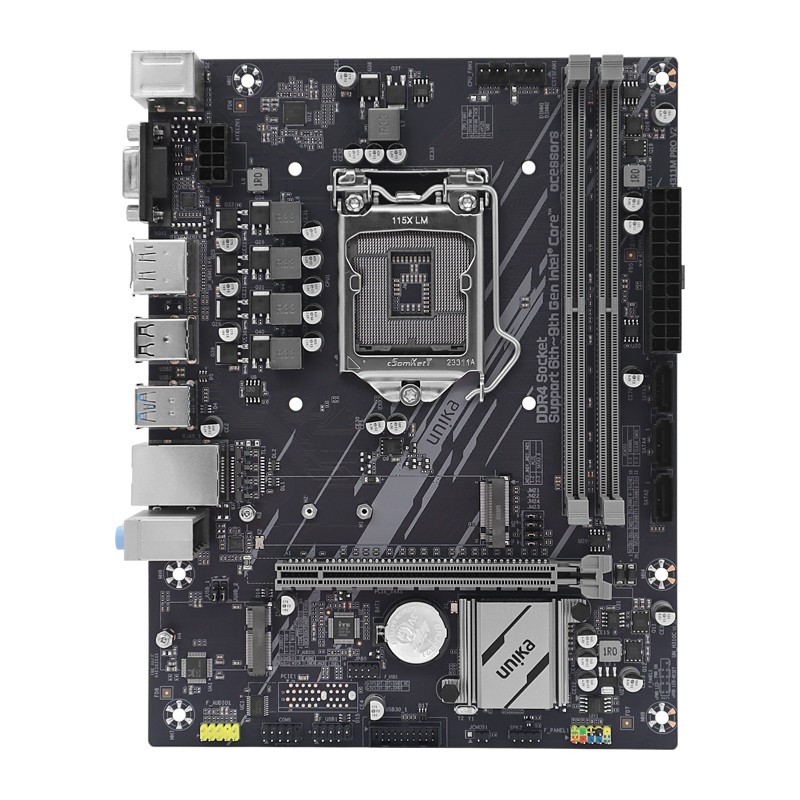

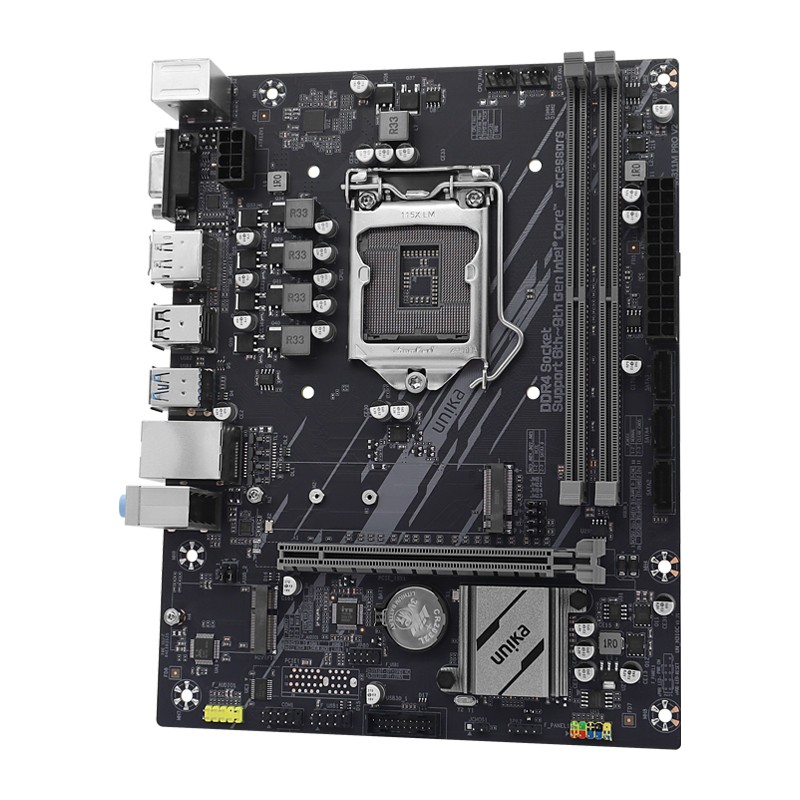

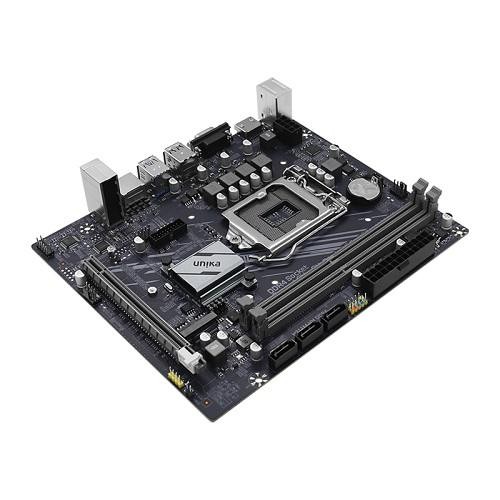

UNIKA UN-H311M PRO V2 Sniper DDR-4 6th/7th/8th/9th Gen M-ATX Motherboard

Product Description

The UNIKA UN-H311M PRO V2 Sniper DDR-4 6th/7th/8th/9th Gen M-ATX Motherboard is a compact and versatile motherboard for Intel-based desktop PC builds. Its Micro ATX form factor makes it suitable for space-efficient desktop systems, while its combination of DDR4 memory, M.2 storage, SATA connectivity and PCIe expansion provides flexibility for everyday computing, office PCs, home systems and budget gaming builds.

Intel H311M Chipset & Multi-Generation CPU Support

The motherboard is based on the Intel H311M chipset and is marketed with support for Intel 6th, 7th, 8th and 9th Gen CPUs using an LGA1151-family socket. Compatible processor families listed by retailers include Intel Core i7, i5, i3, Pentium and Celeron.

Important: Retailer specifications contain inconsistencies around the socket naming, with some listings writing LGA1511 while their descriptions identify the platform as LGA1151. For the product page, it is safer to retain the manufacturer's/retailer's stated compatibility rather than presenting the incorrect “LGA1511” wording as a standard Intel socket specification.

DDR4 Memory Support

The UN-H311M PRO V2 provides 2 DDR4 DIMM slots and supports DDR4 memory speeds of 3000/2933/2800/2666MHz, with a listed maximum memory capacity of 16GB. Actual supported speed can depend on the processor and memory module.

M.2 & SATA Storage

For storage, the motherboard provides 1× M.2 slot supporting 2242, 2260 and 2280 storage devices, alongside 3× SATA III 6Gb/s ports. This allows users to combine an M.2 SSD with SATA SSDs or hard drives for additional storage.

PCIe Expansion

The motherboard includes 1× PCIe x16 slot for a graphics card and 1× PCIe x1 slot for additional expansion hardware. This provides flexibility for graphics upgrades and compatible PCIe expansion cards.

Display Connectivity

Multiple display outputs are provided, including HDMI, DisplayPort and VGA, allowing compatible Intel processors with integrated graphics to connect to different types of monitors.

Gigabit LAN & Realtek Audio

Networking is handled by an onboard Realtek 8111H Gigabit LAN controller, while audio is provided by a Realtek ALC897 high-fidelity audio solution. The board also includes a dedicated M.2 interface for Wi-Fi expansion according to listed specifications.

Micro ATX Design

With dimensions of approximately 170 × 220mm, the UN-H311M PRO V2 is designed in a compact M-ATX form factor, making it suitable for compatible Micro ATX PC cases.

Available retailer listings contain inconsistent socket terminology; the product is marketed for the stated 6th/7th/8th/9th Gen Intel CPU compatibility, while several listings explicitly describe it as an LGA1151 platform.

Key Features

• Intel H311M Chipset
• Intel 6th/7th/8th/9th Gen CPU Support
• Intel Core i7/i5/i3, Pentium & Celeron Support
• 2 × DDR4 DIMM Slots
• Up to 16GB RAM
• DDR4 3000/2933/2800/2666MHz Support
• 1 × PCIe x16 Slot
• 1 × PCIe x1 Slot
• 1 × M.2 Slot
• M.2 2242/2260/2280 Support
• 3 × SATA III 6Gb/s
• Realtek 8111H Gigabit LAN
• Realtek ALC897 Audio
• HDMI Output
• DisplayPort Output
• VGA Output
• USB 3.0 & USB 2.0 Ports
• PS/2 Keyboard & Mouse
• M-ATX 170 × 220mm Design
• 24-Pin + 8-Pin Power Connectors
• 3 Years Warranty

Buy UNIKA UN-H311M PRO V2 Sniper Motherboard in Bangladesh

Looking for the UNIKA UN-H311M PRO V2 Sniper DDR-4 6th/7th/8th/9th Gen M-ATX Motherboard Price in Bangladesh? You can buy the UNIKA UN-H311M PRO V2 Sniper Motherboard from Rose Tech & Computer.

This motherboard is a practical option for building or upgrading a compatible Intel desktop PC, offering DDR4 memory support, M.2 storage, SATA III ports, PCIe expansion, Gigabit LAN, multiple display outputs and Realtek audio in a compact Micro ATX design. Rose Tech & Computer provides this motherboard with the applicable warranty support.
