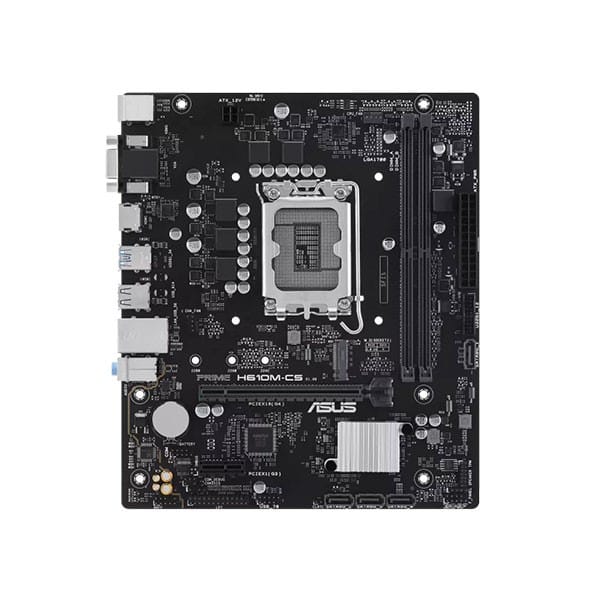

Asus PRIME H610M-CS DDR-5 intel 12th/13th/14th Gen mATX Motherboard
Short Description
- Model: PRIME H610M-CS DDR5
- Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 2 x DIMM, Max. 96GB, DDR5
- Graphics Output: 1 x VGA, 1 x HDMI
- Features: 1 x Realtek 1Gb Ethernet
- Brand: ASUS
Title
Title
Specification
| Basic Information | |
| Brand | ASUS |
| Model | PRIME H610M-CS |
| Product Type | Desktop Motherboard |
| Chipset | Intel H610 |
| CPU Socket | LGA1700 |
| Form Factor | Micro-ATX (mATX) |
| Processor Support | |
| Supported CPU | Intel Core 14th, 13th & 12th Gen Processors, Pentium Gold & Celeron Processors |
| CPU Power Support | Up to 65W |
| Intel Turbo Boost Technology | Supports Intel Turbo Boost 2.0 & Turbo Boost Max 3.0 |
| Memory | |
| Memory Type | DDR5 |
| Memory Slots | 2 × DIMM |
| Maximum Memory | 96GB |
| Memory Speed | DDR5 5600 / 5400 / 5200 / 5000 / 4800 MHz |
| Memory Architecture | Dual Channel |
| Memory Support | Non-ECC, Un-buffered Memory |
| XMP Support | Yes |
| Graphics | |
| Graphics Output | 1 × HDMI, 1 × VGA |
| HDMI Version | HDMI 2.1 |
| HDMI Resolution | Up to 4K @ 60Hz |
| Expansion Slots | |
| PCIe x16 Slot | 1 × PCIe 4.0 x16 |
| PCIe x1 Slot | 1 × PCIe 3.0 x1 |
| Storage | |
| M.2 Slot | 1 × M.2 Key M |
| M.2 Form Factor | 2242 / 2260 / 2280 |
| M.2 Interface | PCIe 3.0 x4 |
| SATA Ports | 4 × SATA 6Gb/s |
| Connectivity | |
| LAN | Realtek 1Gb Ethernet |
| Rear USB | 2 × USB 3.2 Gen 1 (5Gbps) Type-A, 4 × USB 2.0 Type-A |
| Front USB | 1 × USB 3.2 Gen 1 Header, 1 × USB 2.0 Header |
| PS/2 | 1 × PS/2 Keyboard, 1 × PS/2 Mouse |
| Audio | |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Output | 3 × Audio Jacks |
| Audio Resolution | Up to 24-bit / 192kHz |
| Audio Features | Audio Shielding, Premium Audio Capacitors, Dedicated Audio PCB Layers |
| Cooling & Headers | |
| CPU Fan Header | 1 × 4-pin |
| Chassis Fan Header | 1 × 4-pin |
| Power | |
| Main Power Connector | 1 × 24-pin |
| CPU Power Connector | 1 × 4-pin +12V |
| Internal I/O | |
| TPM | 1 × SPI TPM Header |
| Clear CMOS | 1 × Clear CMOS Header |
| COM Port | 1 × COM Header |
| LPT | 1 × LPT Header |
| Front Panel Audio | 1 × AAFP Header |
| Speaker Header | 1 × Speaker Header |
| System Panel | 1 × 10-1 Pin System Panel Header |
| Special Features | |
| Protection | ASUS 5X Protection III |
| ASUS Features | Q-DIMM, Q-Slot, Q-LED Core |
| Thermal Solution | Aluminum Heatsink Design |
| Additional Feature | USBGuard |
| BIOS | |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Operating System | |
| Supported OS | Windows 11 / Windows 10 64-bit |
| Physical Information | |
| Dimensions | 22.6 × 19.5 cm |
| Form Factor | mATX |
| Warranty information | |
| Warranty | 3 Years Warranty |
Product Descriptions
Asus PRIME H610M-CS DDR-5 intel 12th/13th/14th Gen mATX Motherboard
The ASUS PRIME H610M-CS DDR5 Intel 12th/13th/14th Gen mATX Motherboard is a reliable and cost-effective motherboard designed for modern Intel desktop PC builds. Featuring the Intel H610 chipset and LGA1700 socket, it supports Intel Core 14th, 13th and 12th Gen processors, along with compatible Pentium Gold and Celeron processors. It is an excellent choice for home computers, office PCs, budget gaming PCs and everyday productivity systems.
DDR5 Memory Support
The ASUS PRIME H610M-CS comes with 2 × DDR5 DIMM slots and supports up to 96GB of DDR5 memory. It supports DDR5 speeds up to 5600MHz, depending on the processor and memory configuration, along with Dual Channel Memory Architecture and Intel XMP support.
PCIe 4.0 Graphics Support
For dedicated graphics cards and expansion devices, the motherboard includes 1 × PCIe 4.0 x16 slot for modern graphics cards and 1 × PCIe 3.0 x1 slot for additional expansion hardware.
M.2 and SATA Storage
For fast storage, the motherboard provides 1 × M.2 Key M slot supporting 2242, 2260 and 2280 drives through PCIe 3.0 x4 mode. It also features 4 × SATA 6Gb/s ports, allowing users to connect multiple SATA SSDs and hard drives.
HDMI and VGA Display Output
The ASUS PRIME H610M-CS features HDMI and VGA display outputs, allowing compatible Intel processors with integrated graphics to connect directly to modern and legacy displays. The HDMI port supports up to 4K @ 60Hz according to ASUS.
Gigabit LAN and USB Connectivity
For networking, the motherboard features Realtek 1Gb Ethernet. It provides 2 × USB 3.2 Gen 1 Type-A ports and 4 × USB 2.0 Type-A ports on the rear panel, while front-panel headers provide additional USB connectivity.
High-Definition Audio
The motherboard uses a Realtek 7.1 Surround Sound High Definition Audio CODEC with support for jack detection, multi-streaming and front-panel jack retasking. It also supports up to 24-bit/192kHz playback, along with audio shielding and premium audio capacitors.
ASUS Protection and Features
ASUS PRIME H610M-CS includes ASUS 5X Protection III, featuring DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core and a stainless-steel rear I/O panel. ASUS also provides Q-DIMM, Q-Slot, Q-LED Core, an aluminum heatsink design and USBGuard for additional convenience and protection.
Compact mATX Design
With its Micro-ATX form factor and dimensions of 22.6 × 19.5 cm, the ASUS PRIME H610M-CS is suitable for compact PC cases as well as standard desktop cases.
Buy ASUS PRIME H610M-CS from Rose Tech & Computer
If you are looking for an affordable ASUS DDR5 motherboard for Intel 12th, 13th or 14th Gen processors, the ASUS PRIME H610M-CS is a practical option. It combines DDR5 memory support, PCIe 4.0 graphics, M.2 NVMe storage, SATA connectivity, Gigabit LAN, HDMI, VGA and high-definition audio in a compact mATX design.
Buy the ASUS PRIME H610M-CS DDR5 mATX Motherboard from Rose Tech & Computer for your Intel-based PC build.
Warranty
3 Years Warranty
