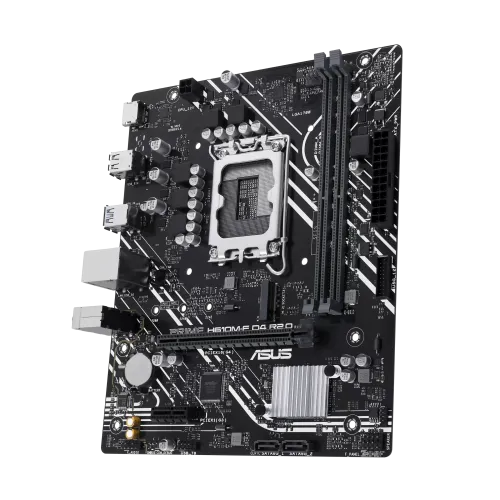

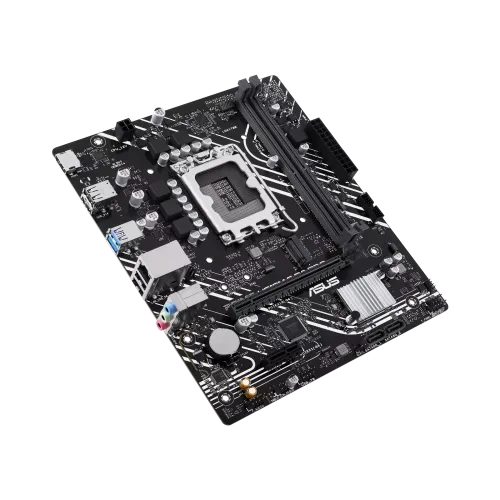

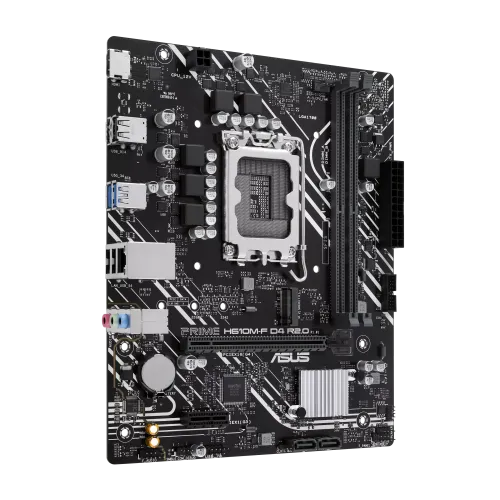

ASUS PRIME H610M-F D4 R2.0 DDR4 mATX Motherboard
Short Description
- Model: PRIME H610M-F D4 R2.0
- Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 2 x DIMM, Max. 64GB, DDR4
- Graphics Output: 1x HDMI
- Features: 1x M.2 slot, 1x Realtek 1Gb Ethernet
- Brand: ASUS
Title
Title
Specification
| Basic Information | |
| Brand | ASUS |
| Model | PRIME H610M-F D4 R2.0 |
| Product Type | Motherboard |
| Chipset | Intel H610 |
| CPU Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Processor Support | |
| CPU Support | Intel Core 14th, 13th & 12th Gen, Pentium Gold, Celeron |
| CPU Power Support | Up to 65W |
| Memory | |
| Memory Type | DDR4 |
| Memory Slots | 2 × DIMM |
| Maximum Memory | 64GB |
| Memory Speed | Up to 3200MHz |
| Memory Architecture | Dual Channel |
| XMP Support | Yes |
| Graphics & Expansion | |
| PCIe x16 Slot | 1 × PCIe 4.0 x16 |
| PCIe x1 Slot | 1 × PCIe 3.0 x1 |
| Graphics Output | 1 × HDMI |
| HDMI Resolution | Up to 4K @ 60Hz |
| Storage | |
| M.2 Slot | 1 × M.2 Key M |
| M.2 Interface | PCIe 3.0 x4 |
| M.2 Form Factor | 2242 / 2260 / 2280 |
| SATA Port | 2 × SATA 6Gb/s |
| Connectivity | |
| LAN | Realtek 1Gb Ethernet |
| Rear USB | 2 × USB 5Gbps Type-A, 4 × USB 2.0 Type-A |
| Front USB | 1 × USB 5Gbps Header, 1 × USB 2.0 Header |
| Audio | |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Resolution | Up to 24-bit / 192kHz |
| Cooling & Headers | |
| CPU Fan Header | 1 × 4-pin |
| Chassis Fan Header | 1 × 4-pin |
| Power | |
| Main Power Connector | 1 × 24-pin |
| CPU Power Connector | 1 × 4-pin +12V |
| BIOS | |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Special Features | |
| Protection | ASUS 5X Protection III |
| ASUS Features | Q-DIMM, Q-Slot, Q-LED Core |
| Operating System | |
| Supported OS | Windows 11 / Windows 10 64-bit |
| Physical Information | |
| Dimensions | 22.6 × 18.8 cm |
| Color | Black |
| Warranty Information | |
| Warranty | 3 Years Warranty |
Product Descriptions
The ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard is built to provide a dependable foundation for modern Intel desktop PC builds. Powered by the Intel H610 chipset and featuring an LGA1700 socket, this motherboard supports compatible 14th, 13th, and 12th Gen Intel Core processors, along with selected Pentium Gold and Celeron processors. ASUS specifies support for CPUs up to 65W, making it particularly suitable for mainstream desktop configurations.
DDR4 Memory Support
The motherboard features 2 DDR4 DIMM slots with support for up to 64GB total memory. It supports DDR4 speeds up to 3200MHz, dual-channel memory architecture, and Intel XMP memory profiles for compatible modules. This provides a good balance of performance and affordability for office PCs, home computers, and entry-level gaming systems.
PCIe 4.0 Graphics Support
For graphics expansion, the ASUS PRIME H610M-F D4 R2.0 includes one PCIe 4.0 x16 slot, allowing users to install a dedicated graphics card. It also has a PCIe 3.0 x1 slot for additional expansion devices.
M.2 and SATA Storage
The motherboard provides one M.2 Key M slot supporting 2242, 2260, and 2280-size drives through PCIe 3.0 x4 mode, with a theoretical interface bandwidth of up to 32Gbps. It also includes 2 × SATA 6Gb/s ports for additional SATA storage devices.
Fast Connectivity
For networking, the motherboard uses Realtek 1Gb Ethernet. It also features rear USB 5Gbps Type-A ports along with USB 2.0 connectivity, providing practical connectivity for keyboards, mice, storage devices, printers, and other peripherals.
Reliable ASUS Protection
ASUS equips this motherboard with 5X Protection III, including DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core, and a stainless-steel rear I/O panel. ASUS also includes Q-Design features such as Q-DIMM, Q-Slot, and Q-LED Core to make PC building and troubleshooting easier.
Compact Micro-ATX Design
With its Micro-ATX form factor, the PRIME H610M-F D4 R2.0 is suitable for a wide range of compact and standard PC cases. Its compact 22.6 × 18.8 cm design makes it a practical choice for space-conscious PC builds.
Why Buy ASUS PRIME H610M-F D4 R2.0?
The ASUS PRIME H610M-F D4 R2.0 is a strong choice for users who want a cost-effective DDR4 motherboard for Intel LGA1700 processors. Its combination of 14th/13th/12th Gen Intel CPU support, 64GB DDR4 capacity, PCIe 4.0 graphics support, M.2 storage, Gigabit LAN, and compact Micro-ATX design makes it suitable for office PCs, home computers, budget gaming PCs, and general-purpose desktop builds.
Buy ASUS PRIME H610M-F D4 R2.0 from Rose Tech & Computer
You can buy the ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard from Rose Tech & Computer in Bangladesh. It is an excellent motherboard option for building a reliable Intel-based desktop PC with DDR4 memory and high-speed M.2 storage.
For the latest availability and price, visit rosetech.com.bd.
Warranty
3 Years Warranty
