Specification
| Basic Information | |
| Brand | VIISAN |
| Model | VF3120 |
| Product Type | A3 High-Speed Flatbed Scanner |
| Scanner Category | Large Format Flatbed Scanner |
| Scanning Specifications | |
| Optical Sensor | Color CIS (Contact Image Sensor) |
| Light Source | Three-Color (RGB) LED |
| Optical Resolution | 1200 × 1200 dpi |
| Maximum Scanning Area | 304 × 426mm (12 × 17 inches) |
| A3 Scanning Speed | 8 Seconds per Page at 200 dpi (Color) |
| Color Bit Depth | 48-bit Input / 24-bit Output |
| Grayscale Bit Depth | 16-bit Input / 8-bit Output |
| Daily Duty Scan | 2,500 Pages |
| Function & Features | |
| Function Buttons | Scan / PDF / E-Mail / Print |
| Design | Frameless & Narrow-Boundary |
| OCR Support | Yes |
| Output & Connectivity | |
| Output Formats | BMP, PNG, JPEG, PDF, Multi-page PDF, TIF, Multi-page TIF |
| Interface | High-Speed USB 2.0 |
| Windows Driver Protocol | TWAIN & WIA |
| macOS Driver Protocol | Image Capture (ICA) |
| Linux Support | XSANE |
| Software | |
| Bundled Software | Scanner Driver, ViiScan, Event Utility, OCR Engine |
| Power Specifications | |
| Power Supply | 12V DC / 2A, 24W |
| Input Voltage | 100–120V AC / 200–240V AC |
| Input Frequency | 50–60Hz |
| Power Consumption | 8.5W |
| Power Saving | Automatic Power Off After 15 Minutes |
| Operating Environment | |
| Operating Temperature | 10°C to 35°C |
| Operating Humidity | 10% to 85% RH |
| Physical Specifications | |
| Dimensions | 565 × 394 × 61mm |
| Weight | Approx. 4.3kg |
| Warranty | |
| Warranty | Confirm with Local Seller |
Product Descriptions
VIISAN VF3120 A3 Large Format Flatbed Scanner
The VIISAN VF3120 A3 Large Format Flatbed Scanner is a high-speed scanning solution designed for offices, educational institutions, libraries, printing businesses and professional document digitization. Supporting large-format A3 scanning, it allows users to digitize documents, books, magazines, photographs, drawings and artwork with detailed image quality.
Available at Rose Tech & Computer, the VIISAN VF3120 combines 1200 × 1200 dpi optical resolution, Color CIS technology and fast scanning performance in a compact flatbed design.
A3 Large Format Scanning
The VF3120 supports a maximum scanning area of 304 × 426mm, making it suitable for scanning large documents and materials that cannot fit on standard A4 scanners.
It is ideal for:
- A3 documents and certificates
- Books, magazines and newspapers
- Photographs and photo albums
- Drawings and artwork
- Office records and archival documents
High Optical Resolution – 1200 × 1200 DPI
With a maximum optical resolution of 1200 × 1200 dpi, the scanner captures detailed images and text. Its Color CIS sensor helps reproduce documents, photographs and artwork with accurate visual details.
Fast A3 Scanning Performance
The VIISAN VF3120 can scan an A3-size color page in approximately 8 seconds at 200 dpi, helping improve productivity in offices and document digitization environments.
48-Bit Color Depth
The scanner supports 48-bit color input and 24-bit color output, allowing detailed color capture. For grayscale scanning, it supports 16-bit input and 8-bit output.
Frameless and Narrow-Boundary Design
Its frameless and narrow-boundary design makes it easier to position and scan large documents, photo albums and thick bound materials. The flatbed structure provides a stable surface for scanning books and other paper materials.

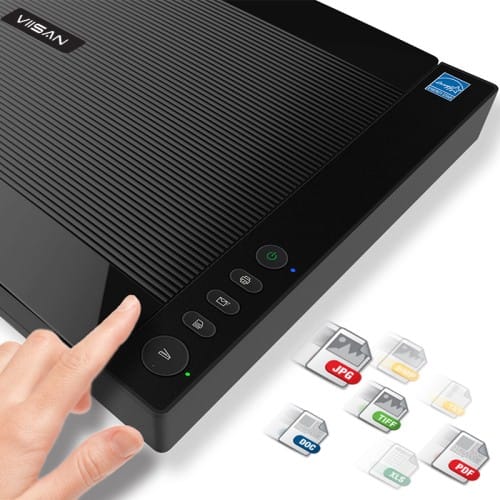

Convenient One-Touch Function Buttons
The front control panel includes four convenient function buttons:
- Scan
These buttons provide quick access to common scanning tasks and help simplify everyday document management.
USB 2.0 Connectivity
The VF3120 uses a High-Speed USB 2.0 interface for computer connectivity. It supports Windows and macOS scanning workflows, with TWAIN and WIA drivers for Windows and Image Capture (ICA) support for compatible macOS systems. Linux driver support is also available.
Bundled Scanning Software
The scanner comes with software tools designed to support document scanning and image processing, including:
- Scanner Driver
- ViiScan
- Event Utility
- OCR Engine
Supported output formats include BMP, PNG, JPEG, PDF, Multi-page PDF, TIF and Multi-page TIF.
Key Features
- A3 high-speed flatbed scanner
- 1200 × 1200 dpi optical resolution
- Color CIS optical sensor
- 8-second A3 color scanning at 200 dpi
- 48-bit color input / 24-bit output
- Maximum scan area of 304 × 426mm
- Three-color RGB LED light source
- Frameless and narrow-boundary design
- Four convenient function buttons
- High-Speed USB 2.0 interface
- Supports Windows, macOS and Linux driver workflows
Choose the VIISAN VF3120 A3 Large Format Flatbed Scanner from Rose Tech & Computer for efficient large-document scanning, book digitization, artwork capture and professional office workflows.
Warranty: Please confirm the applicable warranty period and service terms with Rose Tech & Computer before purchase.
