Zebra ZD230 Barcode Label Printer
| Brand | Zebra |
|---|---|
| Model | ZD230 |
| Color | Black |
| Warranty | 01 year warranty |
| Printer Type | Barcode Label Printer | |
| Technology | Thermal Transfer & Direct Thermal | |
| Print Speed | Speed 152 mm/sec width 104 mm | |
| Print Resolution | 203 dpi/8 dots per mm | |
| Paper Information | ||
| Paper Type | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands Tape Size127 mm Maximum Tape Width 112 mm Max. Label Length 991 mm | |
| Technical Specs | ||
| Memory | 128MB SDRAM Flash Storage 256MB | |
| Connectivity | USB | |
| Power Consumption | 100-240VAC, 50-60Hz | |
| Physical Specs | ||
| Dimension | Thermal Transfer: 10.5 in. L x 7.75 in. W x 7.5 in. H 267 mm L x 197 mm W x 191 mm H Direct Thermal 8.6 in. L x 6.9 in. W x 5.9 in. H 220 mm L x 176 mm W x 151 mm H | |
| Weight | 2.5 lbs | |
| Special Features | ||
| Others | Font- 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts Barcode – 1D Bar Codes: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code, 2D Bar Codes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec | |
Description

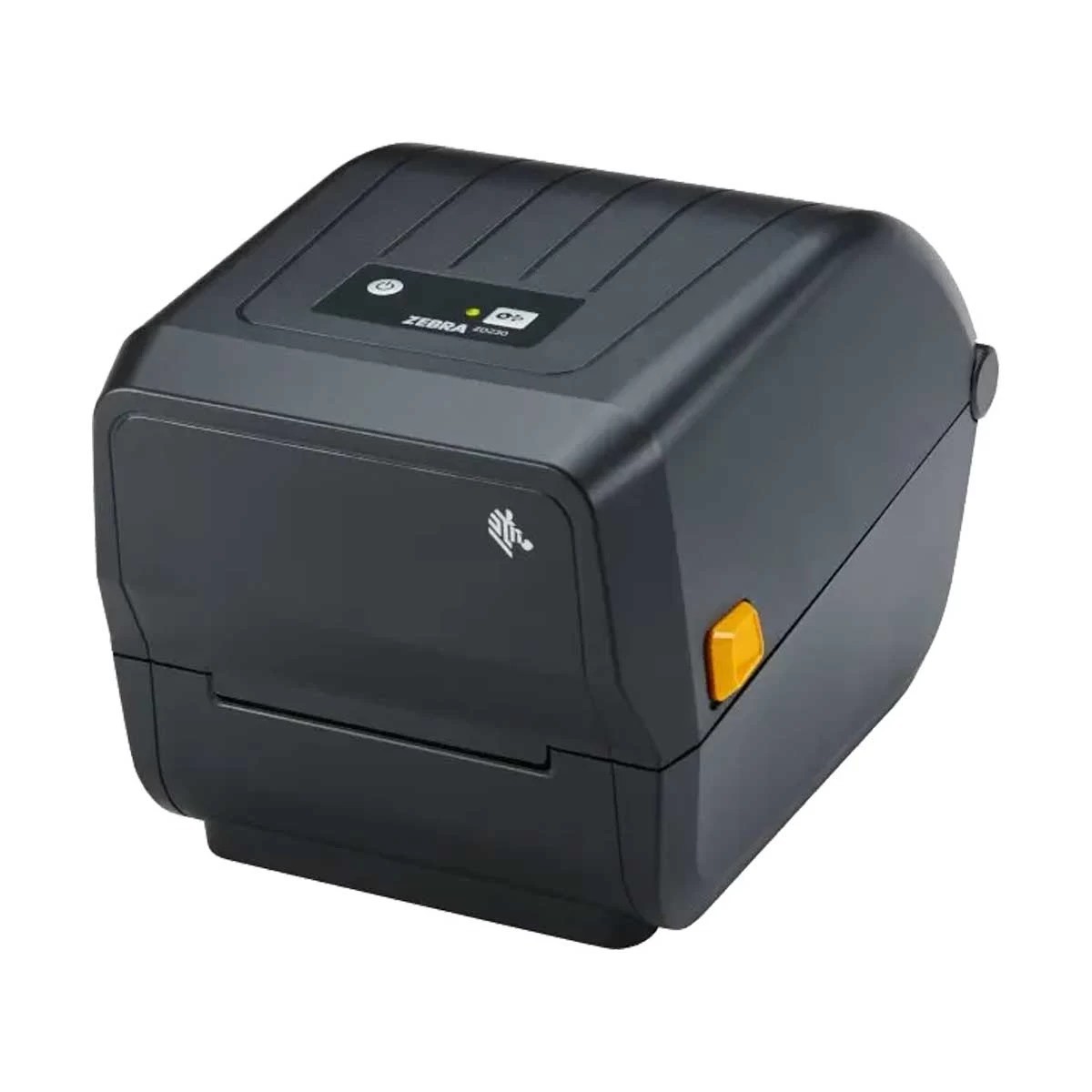

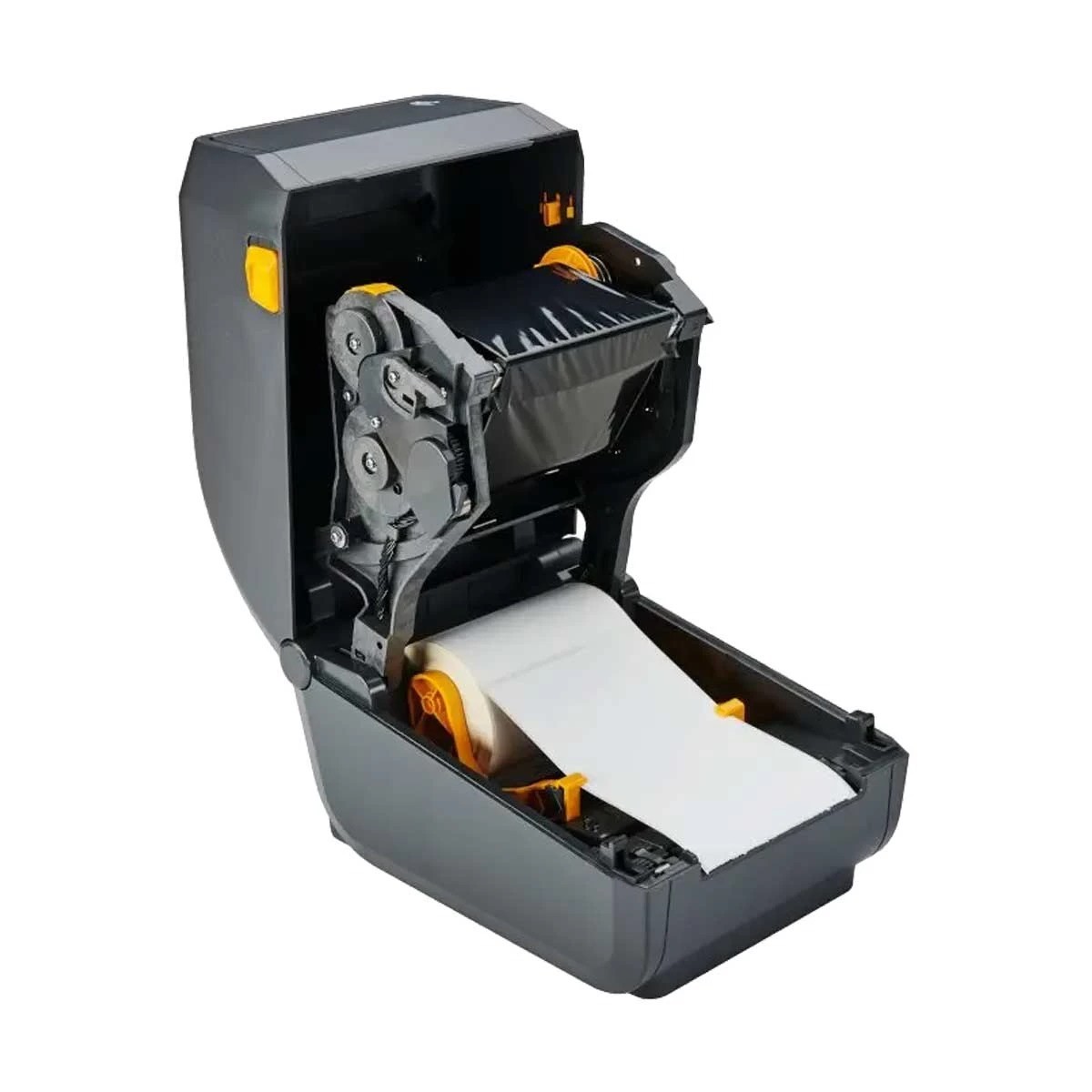

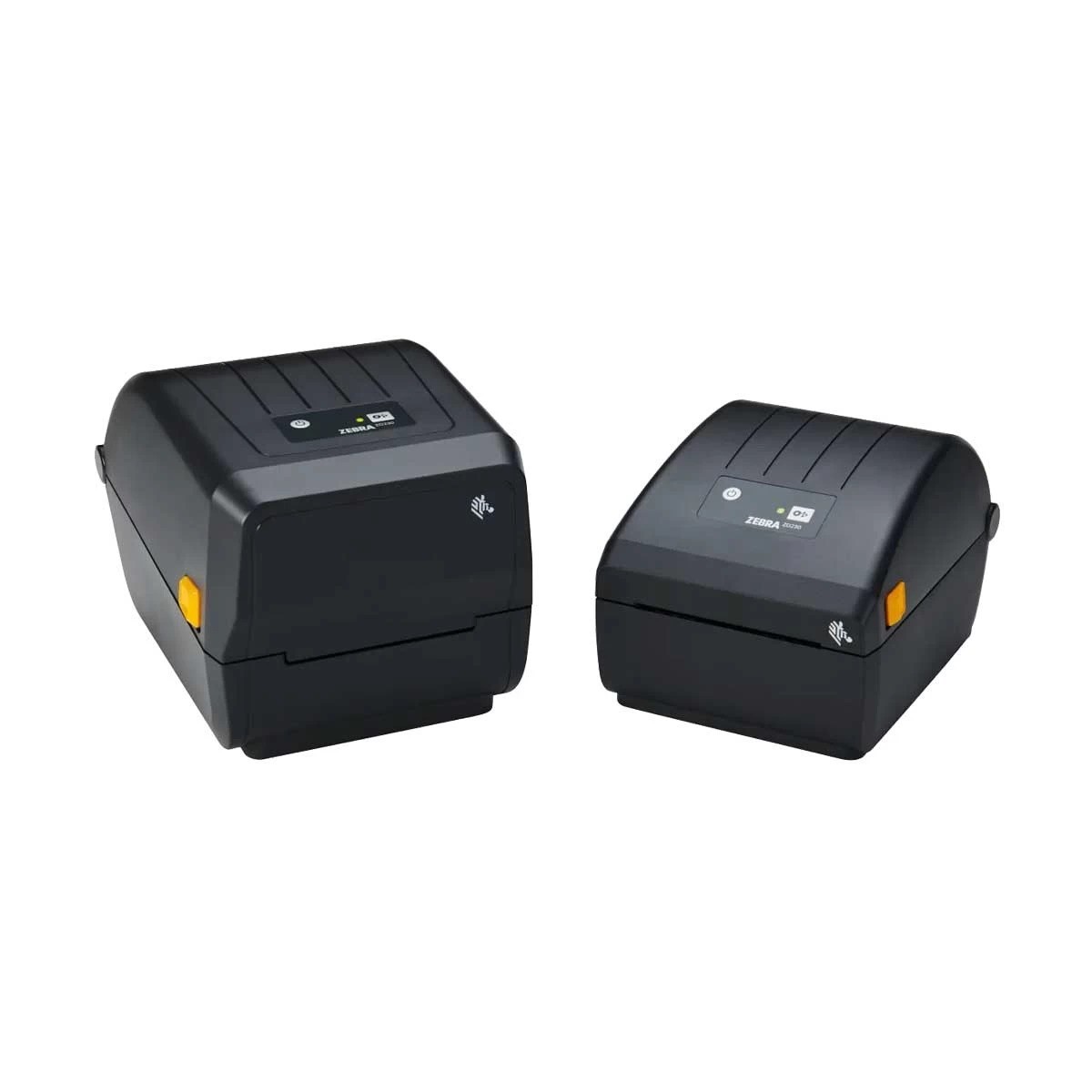

Zebra ZD230 Barcode Label Printer
The Zebra ZD230 is a barcode label printer. It is straightforward to install and begin printing. It uses ZPL and EPL programming languages. It has a built-in factory-installed USB. It can accommodate a 300m ribbon roll to lengthen the time between media changes. The 4-inch printer produces labels quickly, up to 6 per second. To make it easy to operate and identify printer status, a single LED indicator and a single button for feed/pause have been used. It can print at a resolution of 203 dpi/8 dots per mm. A movable black mark sensor, limited range from centre to left side, and a fixed off-centre gap sensor have been used in this barcode printer. A factory-installed peeler or cutter has been used for media handling. It is ideal for use in transportation and logistics, light manufacturing, retail, and healthcare applications to print tickets, tags, passes, labels, and receipts. It has a 1-year warranty.
