Gigabyte H310M M.2 2.0 DDR4 8th/9th Gen Micro ATX Motherboard
Short Description
- Model: Gigabyte H310M M.2 2.0
- Supports 9th and 8th Gen Intel Core Processors
- Chipset: Intel H310 Express Chipset
- 2 x DIMM, Max. 32GB DDR4
- CEC 2019 Ready
- Brand: GIGABYTE
- Product ID: 6635
Title
Title
Specification
| Basic Information | |
| Brand | GIGABYTE |
| Model | H310M M.2 2.0 |
| Revision | Rev. 1.0 / 1.1 |
| Product Type | Micro ATX Motherboard |
| Part Number / Model | H310M M.2 2.0 |
| Chipset | Intel H310 Express |
| CPU Support | |
| CPU Socket | LGA1151 |
| Supported CPU | Intel Core i9 / i7 / i5 / i3, Pentium & Celeron |
| CPU Generation | 8th & 9th Gen Intel Core |
| Memory | |
| Memory Type | DDR4 |
| Memory Slots | 2 × DDR4 DIMM |
| Maximum Memory | Up to 32GB |
| Memory Speed | DDR4 2666 / 2400 / 2133MHz |
| Memory Architecture | Dual Channel |
| ECC Support | ECC Unbuffered DIMM operates in Non-ECC mode |
| XMP Support | Yes |
| Graphics | |
| Integrated Graphics | Intel HD Graphics Support |
| HDMI | 1 × HDMI 1.4 |
| HDMI Resolution | Up to 4096 × 2160 @ 30Hz |
| D-Sub | 1 × VGA |
| D-Sub Resolution | Up to 1920 × 1200 @ 60Hz |
| Expansion Slots | |
| PCIe x16 | 1 × PCIe 3.0 x16 |
| PCIe x1 | 2 × PCIe 2.0 x1 |
| Storage | |
| M.2 Slot | 1 × M.2 Socket 3 |
| M.2 Form Factor | 2260 / 2280 |
| M.2 Interface | PCIe Gen2 x2 & SATA |
| SATA Ports | 4 × SATA 6Gb/s |
| USB | |
| USB 3.1 Gen 1 | 4 × Total |
| USB 2.0 / 1.1 | 6 × Total |
| Audio | |
| Audio Chipset | Realtek Audio Codec |
| Audio | High Definition Audio |
| Audio Channel | Up to 7.1 Channel |
| Networking | |
| LAN Chip | Realtek 8118 Gaming LAN |
| LAN Speed | 10/100/1000 Mbps |
| Bandwidth Management | Supported |
| Rear I/O | |
| PS/2 | 1 × Keyboard/Mouse |
| HDMI | 1 × |
| D-Sub | 1 × |
| USB 3.1 Gen 1 | 2 × |
| USB 2.0/1.1 | 4 × |
| LAN | 1 × RJ-45 |
| Audio | 3 × Audio Jacks |
| Cooling & Monitoring | |
| Smart Fan 5 | Supported |
| Temperature Sensors | Multiple |
| Hybrid Fan Headers | Supported |
| Fan Stop | Supported |
| BIOS | |
| BIOS | AMI UEFI BIOS |
| BIOS ROM | 128 Mbit |
| Q-Flash | Supported |
| Operating System | |
| Supported OS | Windows 11, 10 64-bit |
| Physical Specification | |
| Form Factor | Micro ATX |
| Dimensions | 22.6 × 17.4 cm |
| Warranty Information | |
| Warranty | 03 Years Manufacturing Warranty |
Product Descriptions

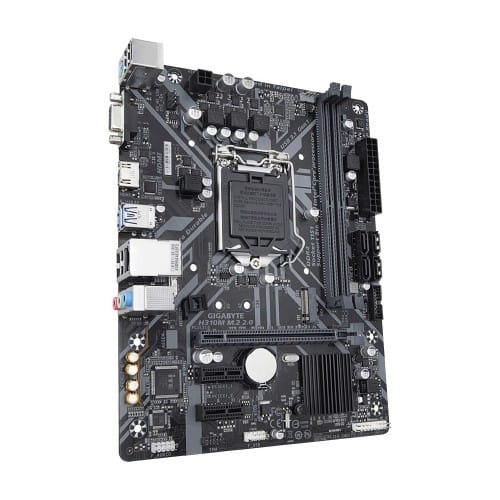

GIGABYTE H310M M.2 2.0 DDR4 8th/9th Gen Micro ATX Motherboard
The GIGABYTE H310M M.2 2.0 DDR4 8th/9th Gen Micro ATX Motherboard is designed for users who need a reliable, compact, and affordable platform for an Intel-based desktop PC. Powered by the Intel H310 Express chipset and featuring an LGA1151 socket, it supports compatible 8th and 9th Generation Intel Core i9, i7, i5, i3, Pentium, and Celeron processors. Its compact Micro ATX form factor makes it suitable for home computers, office PCs, business systems, and budget desktop builds.
For memory, the H310M M.2 2.0 features two DDR4 DIMM slots supporting up to 32GB of system memory. It supports DDR4 2666/2400/2133MHz modules and dual-channel memory architecture, providing efficient performance for everyday computing, office applications, browsing, multimedia, and multitasking. GIGABYTE also supports XMP memory modules on the platform, with the supported speed dependent on the installed processor.
One of the motherboard's key advantages is its integrated M.2 connector, supporting PCIe Gen2 x2 and SATA-based SSDs in 2260 and 2280 form factors. Alongside the M.2 slot, four SATA 6Gb/s connectors provide additional storage options for SATA SSDs and hard drives. This makes the H310M M.2 2.0 a flexible solution for users who want fast M.2 storage as well as conventional SATA storage.
For graphics and connectivity, the motherboard provides HDMI 1.4 and D-Sub outputs, one PCIe 3.0 x16 slot for a dedicated graphics card, two PCIe 2.0 x1 expansion slots, USB 3.1 Gen 1, USB 2.0, and a Realtek 8118 Gigabit LAN controller. Its Realtek High Definition Audio solution supports up to 7.1-channel audio with the appropriate front-panel configuration.
The motherboard also features GIGABYTE Smart Fan 5, multiple temperature sensors, hybrid fan headers, fan-stop functionality, and GIGABYTE Ultra Durable design features. These technologies help provide stable operation and practical thermal management for everyday desktop systems.
Buy GIGABYTE H310M M.2 2.0 Motherboard from Rose Tech & Computer
In Bangladesh, you can buy the original GIGABYTE H310M M.2 2.0 DDR4 8th/9th Gen Micro ATX Motherboard from Rose Tech & Computer. We offer a wide collection of the latest GIGABYTE Motherboards, Intel 8th Gen Motherboards, Intel 9th Gen Motherboards, DDR4 Motherboards, H310 Motherboards, M.2 Motherboards, and Desktop PC Components at competitive prices.
Order online from Rose Tech & Computer or visit our store to get the best GIGABYTE H310M M.2 2.0 Motherboard Price in Bangladesh. We provide genuine products, competitive pricing, secure online shopping, fast nationwide delivery, and reliable customer support. The GIGABYTE H310M M.2 2.0 is an excellent choice for building or upgrading a dependable 8th/9th Gen Intel desktop PC.
Why Buy GIGABYTE H310M M.2 2.0 from Rose Tech & Computer?
- ✅ 100% Genuine GIGABYTE Product
- ✅ Competitive Price in Bangladesh
- ✅ Intel 8th & 9th Gen CPU Support
- ✅ DDR4 Memory Support
- ✅ M.2 PCIe Gen2 x2 & SATA SSD Support
- ✅ Smart Fan 5 Technology
- ✅ Fast Nationwide Delivery
- ✅ Secure Online Shopping
- ✅ Professional Customer Support
- ✅ Quality-Assured Computer Components
Warranty
03 Years Manufacturing Warranty
