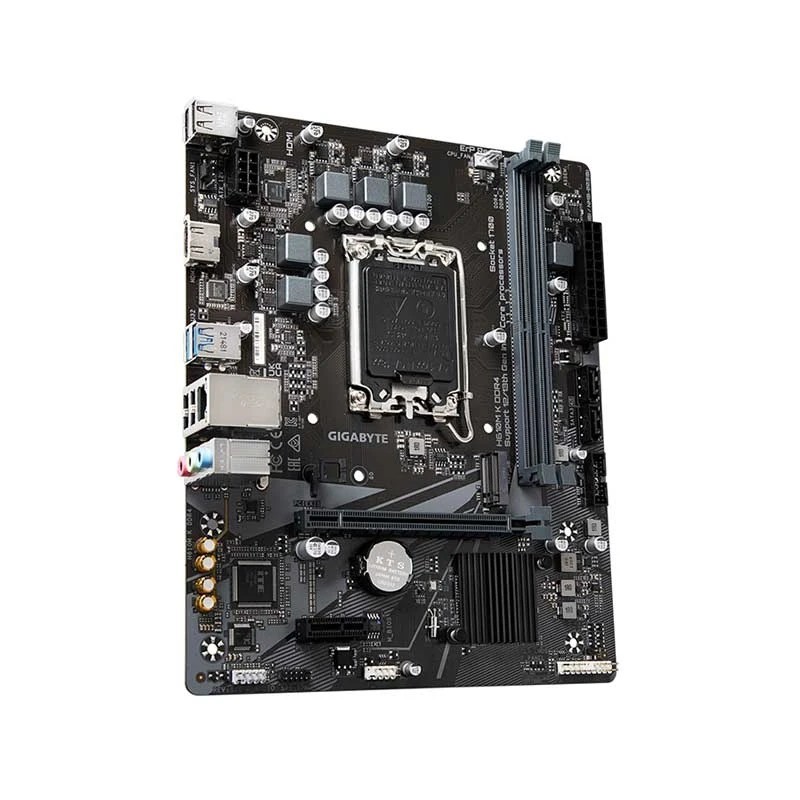

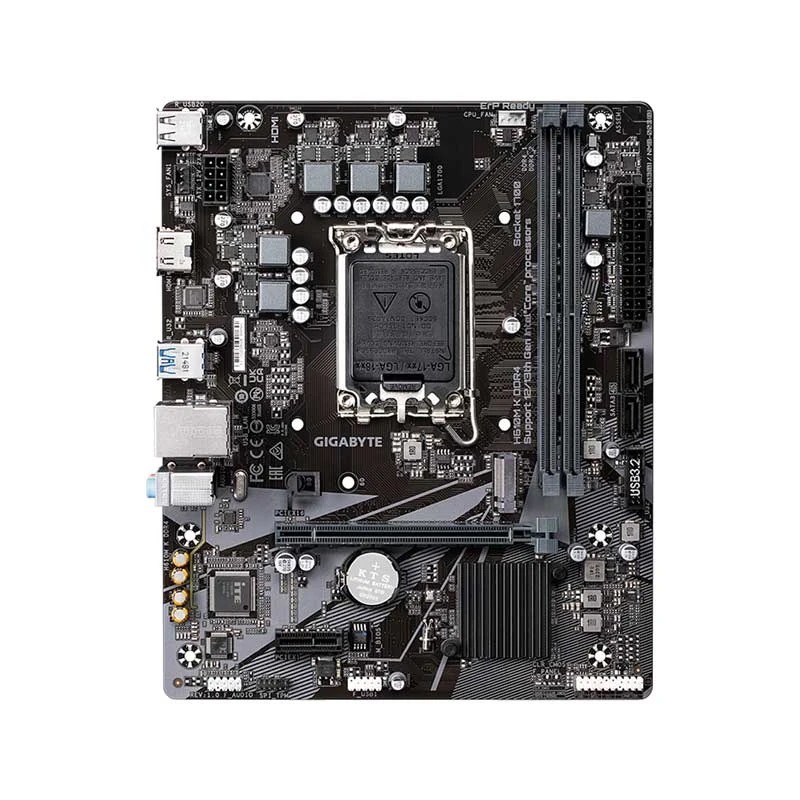

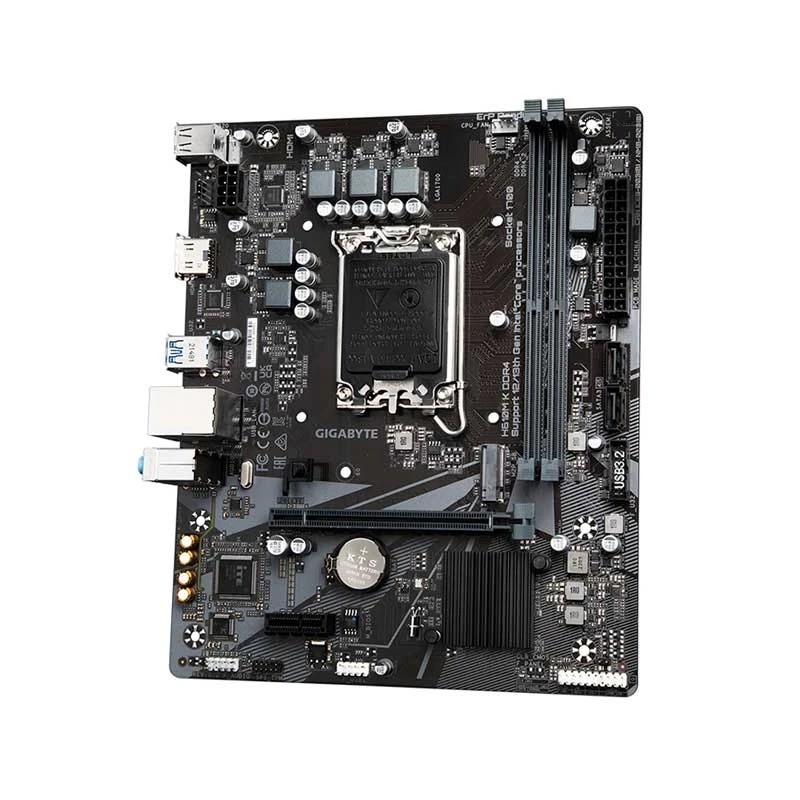

GIGABYTE H610M K DDR-4 12th/13th/14th gen M-ATX Motherboard
Short Description
- Model: H610M K DDR4
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR4, Max 64GB 3200
- Graphics Output: 1x HDMI 2.1
- Features: Realtek GbE LAN chip (1 Gbps/100 Mbps)
- Brand: GIGABYTE
- Product ID: 15883
Title
Title
Specification
| Basic Information | |
| Brand | GIGABYTE |
| Model | H610M K DDR4 |
| Product Type | Micro ATX Motherboard |
| Part Number | H610M K DDR4 |
| Chipset | Intel H610 Express |
| CPU Socket | LGA1700 |
| Form Factor | Micro ATX |
| Dimensions | 22.6 × 18.5 cm |
| CPU Support | |
| Supported CPU | Intel Core, Pentium Gold & Celeron |
| CPU Generation | 12th / 13th / 14th Gen |
| Memory | |
| Memory Type | DDR4 |
| Memory Slots | 2 × DDR4 DIMM |
| Maximum Memory | Up to 64GB |
| Maximum Per DIMM | Up to 32GB |
| Memory Speed | DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s |
| Memory Architecture | Dual Channel |
| ECC | ECC Unbuffered DIMM operates in Non-ECC mode |
| XMP | Supported |
| Expansion Slots | |
| PCIe x16 | 1 × PCIe 4.0 x16 |
| PCIe x1 | 1 × PCIe 3.0 x1 |
| Storage | |
| M.2 Slot | 1 × M.2 |
| M.2 Interface | PCIe 3.0 x4 NVMe |
| M.2 Form Factor | 2280 |
| SATA | 4 × SATA 6Gb/s |
| Graphics | |
| Integrated Graphics | Intel HD Graphics Support |
| HDMI | 1 × HDMI 2.1 |
| Maximum Resolution | Up to 4096 × 2160 @ 60Hz |
| Networking | |
| LAN | Realtek Gigabit Ethernet |
| LAN Speed | 10/100/1000 Mbps |
| Bandwidth Management | Supported |
| Audio | |
| Audio Codec | High Definition Audio |
| Audio Features | High Quality Audio Capacitors + Audio Noise Guard |
| USB | |
| USB 3.2 Gen 1 | Supported |
| USB 2.0 | Supported |
| Cooling | |
| Smart Fan | Smart Fan 6 |
| Temperature Sensors | Multiple |
| Hybrid Fan Headers | Supported |
| FAN STOP | Supported |
| BIOS | |
| BIOS | AMI UEFI BIOS |
| BIOS ROM | 128 Mbit |
| Operating System | |
| Supported OS | Windows 11 / Windows 10 64-bit |
| Warranty | |
| Warranty | 3 Years Warranty |
Product Descriptions
GIGABYTE H610M K DDR4 12th/13th/14th Gen M-ATX Motherboard
The GIGABYTE H610M K DDR4 is a compact Micro ATX motherboard designed for users who want to build a reliable Intel-based desktop PC using modern 12th, 13th or 14th Generation Intel processors. Featuring the Intel H610 Express chipset and LGA1700 socket, it supports compatible Intel Core, Pentium Gold and Celeron processors. Its compact 22.6 × 18.5cm design makes it suitable for home, office, business and budget PC builds.
For memory, the motherboard features 2 DDR4 DIMM slots supporting up to 64GB of RAM, with memory speeds up to DDR4 3200 MT/s. Dual-channel architecture and XMP support provide a flexible memory platform for everyday computing, office applications, multitasking, browsing, multimedia and productivity workloads.
For fast storage, the H610M K DDR4 provides a PCIe 3.0 x4 M.2 slot for compatible NVMe SSDs, along with 4 SATA 6Gb/s connectors for additional SATA SSDs and hard drives. The PCIe 4.0 x16 slot also allows users to install a dedicated graphics card for gaming, graphics work and other GPU-intensive applications.
The motherboard provides HDMI 2.1 for high-resolution display output from compatible Intel processors with integrated graphics. It also features Realtek Gigabit LAN, USB connectivity, high-quality audio capacitors and an Audio Noise Guard for a better everyday multimedia experience.
GIGABYTE's Smart Fan 6 technology provides multiple temperature sensors, hybrid fan headers and FAN STOP functionality to help manage system cooling efficiently. The motherboard also incorporates an Anti-Sulfur Resistor Design and other GIGABYTE durability features for dependable long-term operation.
Buy GIGABYTE H610M K DDR4 Motherboard from Rose Tech & Computer
In Bangladesh, you can buy the original GIGABYTE H610M K DDR4 12th/13th/14th Gen M-ATX Motherboard from Rose Tech & Computer. We offer a wide collection of GIGABYTE Motherboards, H610 Motherboards, Intel 12th Gen Motherboards, Intel 13th Gen Motherboards, Intel 14th Gen Motherboards, DDR4 Motherboards and M.2 NVMe Motherboards at competitive prices.
Order online from Rose Tech & Computer or visit our store to get the best GIGABYTE H610M K DDR4 Motherboard Price in Bangladesh. We provide genuine products, competitive pricing, secure online shopping, fast nationwide delivery and reliable customer support.
Why Buy GIGABYTE H610M K DDR4 from Rose Tech & Computer?
- ✅ 100% Genuine GIGABYTE Product
- ✅ Competitive Motherboard Price in Bangladesh
- ✅ Supports 12th / 13th / 14th Gen Intel CPUs
- ✅ DDR4 Up to 64GB
- ✅ M.2 PCIe 3.0 x4 NVMe Support
- ✅ PCIe 4.0 Graphics Support
- ✅ HDMI 2.1
- ✅ Gigabit LAN
- ✅ Smart Fan 6
- ✅ 3 Years Warranty
- ✅ Fast Nationwide Delivery
- ✅ Professional Customer Support
Warranty
3 Years Warranty.
