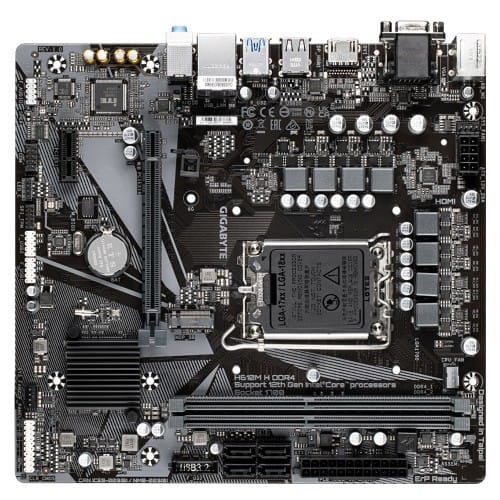

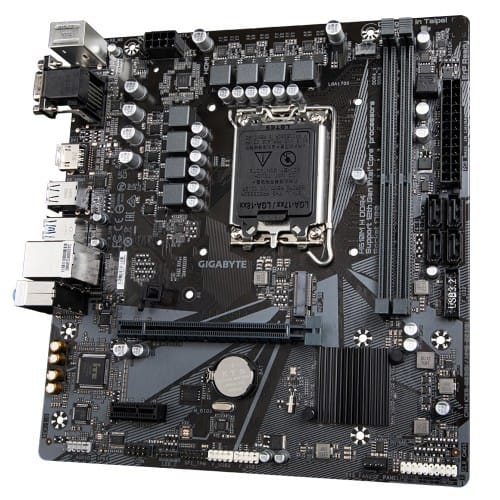

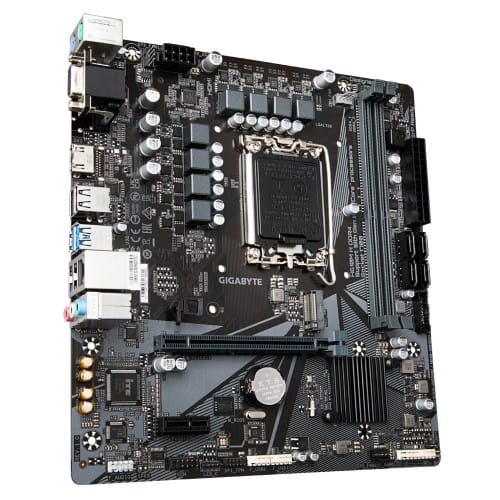

Gigabyte H610M H DDR4 12th/13th/14th Gen M-ATX Motherboard
Short Description
- Model: Gigabyte H610M H DDR4
- LGA1700 socket: Supports 12th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Intel GbE LAN with cFosSpeed Internet Accelerator Software
- NVMe PCIe 3.0 x4 M.2
- Brand: GIGABYTE
- Product ID: 10980
Title
Title
Specification
| Basic Information | |
| Brand | GIGABYTE |
| Model | H610M H DDR4 |
| Product Type | Micro ATX Motherboard |
| Part Number | H610M H DDR4 |
| Chipset | Intel H610 Express |
| CPU Socket | LGA1700 |
| Form Factor | Micro ATX |
| Dimensions | 23.0 × 21.5 cm |
| CPU Support | |
| Supported CPU | Intel Core, Pentium Gold & Celeron |
| CPU Generation | 12th / 13th / 14th Gen |
| Memory | |
| Memory Type | DDR4 |
| Memory Slots | 2 × DDR4 DIMM |
| Maximum Memory | Up to 64GB |
| Maximum Per DIMM | 32GB |
| Memory Speed | DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s |
| Memory Architecture | Dual Channel |
| ECC Support | ECC Unbuffered DIMM operates in Non-ECC mode |
| XMP Support | Yes |
| Expansion Slots | |
| PCIe x16 | 1 × PCIe 4.0 x16 |
| PCIe x1 | 1 × PCIe 3.0 x1 |
| Storage | |
| M.2 Slot | 1 × M.2 |
| M.2 Interface | PCIe 3.0 x4 NVMe |
| M.2 Form Factor | 2280 |
| SATA | 4 × SATA 6Gb/s |
| Graphics | |
| Integrated Graphics | Intel Processor Graphics Support |
| HDMI | 1 × HDMI 2.0 |
| D-Sub | 1 × VGA |
| Maximum HDMI Resolution | Up to 4096 × 2160 @ 60Hz |
| Networking | |
| LAN | Gigabit Ethernet |
| LAN Speed | 10/100/1000 Mbps |
| Audio | |
| Audio Codec | Realtek High Definition Audio |
| Audio Channel | 2/4/5.1/7.1 Channel |
| Audio Features | High Quality Audio Capacitors + Audio Noise Guard |
| USB | |
| USB 3.2 Gen 1 | 2 × Rear |
| USB 2.0/1.1 | 4 × Rear |
| Rear I/O | |
| PS/2 | 1 × Keyboard + 1 × Mouse |
| HDMI | 1 × |
| D-Sub | 1 × |
| USB 3.2 Gen 1 | 2 × |
| USB 2.0 | 4 × |
| LAN | 1 × RJ-45 |
| Audio | 3 × Audio Jacks |
| Power & Cooling | |
| VRM Design | 6+1+1 Hybrid Digital VRM |
| CPU Power Connector | 8-Pin |
| Smart Fan 6 | Supported |
| Fan Stop | Supported |
| Temperature Sensors | Multiple |
| BIOS | |
| BIOS | AMI UEFI BIOS |
| BIOS ROM | 256 Mbit |
| Q-Flash | Supported |
| Operating System | |
| OS Support | Windows 10 / Windows 11 64-bit |
| Warranty | |
| Warranty | 3 Years Warranty |
Product Descriptions
GIGABYTE H610M H DDR4 12th/13th/14th Gen M-ATX Motherboard
The GIGABYTE H610M H DDR4 is a compact and reliable Micro ATX motherboard designed for modern Intel desktop PC builds. Featuring the Intel H610 Express chipset and LGA1700 socket, it supports compatible 12th, 13th and 14th Generation Intel Core, Pentium Gold and Celeron processors. Its 23 × 21.5cm Micro ATX design makes it suitable for home computers, office PCs, business systems and budget-friendly desktop builds.
For memory, the motherboard features 2 DDR4 DIMM slots supporting up to 64GB of RAM, with supported memory speeds up to DDR4 3200 MT/s. Dual-channel architecture and XMP support provide a flexible memory platform for office applications, web browsing, multimedia, multitasking and everyday computing.
For fast storage, the H610M H DDR4 includes an M.2 PCIe 3.0 x4 NVMe slot for compatible high-speed SSDs, along with 4 SATA 6Gb/s ports for SATA SSDs and hard drives. The PCIe 4.0 x16 slot provides support for a dedicated graphics card, making the motherboard suitable for both everyday and entry-level gaming PC configurations.
The motherboard provides HDMI 2.0 and D-Sub display outputs, USB 3.2 Gen 1 connectivity, Gigabit LAN and 8-channel High Definition Audio. GIGABYTE's 6+1+1 Hybrid Digital VRM Design, high-quality audio capacitors and Audio Noise Guard are designed to provide stable power delivery and improved audio performance.
The built-in Smart Fan 6 technology provides multiple temperature sensors, hybrid fan headers and FAN STOP functionality to help manage system cooling. GIGABYTE also incorporates an Anti-Sulfur Resistor Design for improved durability and long-term reliability.
Buy GIGABYTE H610M H DDR4 Motherboard from Rose Tech & Computer
In Bangladesh, you can buy the original GIGABYTE H610M H DDR4 12th/13th/14th Gen M-ATX Motherboard from Rose Tech & Computer. We offer a wide collection of GIGABYTE Motherboards, H610 Motherboards, Intel 12th Gen Motherboards, Intel 13th Gen Motherboards, Intel 14th Gen Motherboards, DDR4 Motherboards and M.2 NVMe Motherboards at competitive prices.
Order online from Rose Tech & Computer or visit our store to get the best GIGABYTE H610M H DDR4 Motherboard Price in Bangladesh. We provide genuine products, competitive pricing, secure online shopping, fast nationwide delivery and reliable customer support.
Why Buy GIGABYTE H610M H DDR4 from Rose Tech & Computer?
- ✅ 100% Genuine GIGABYTE Product
- ✅ Competitive Motherboard Price in Bangladesh
- ✅ Supports 12th / 13th / 14th Gen Intel CPUs
- ✅ DDR4 Up to 64GB
- ✅ M.2 PCIe 3.0 x4 NVMe Support
- ✅ PCIe 4.0 Graphics Support
- ✅ HDMI 2.0 + D-Sub
- ✅ Gigabit LAN
- ✅ Smart Fan 6
- ✅ 3 Years Warranty
- ✅ Fast Nationwide Delivery
- ✅ Professional Customer Support
Warranty
3 Years Warranty. Current Bangladesh listings also show a 3-year manufacturing warranty for the GIGABYTE H610M H DDR4.
